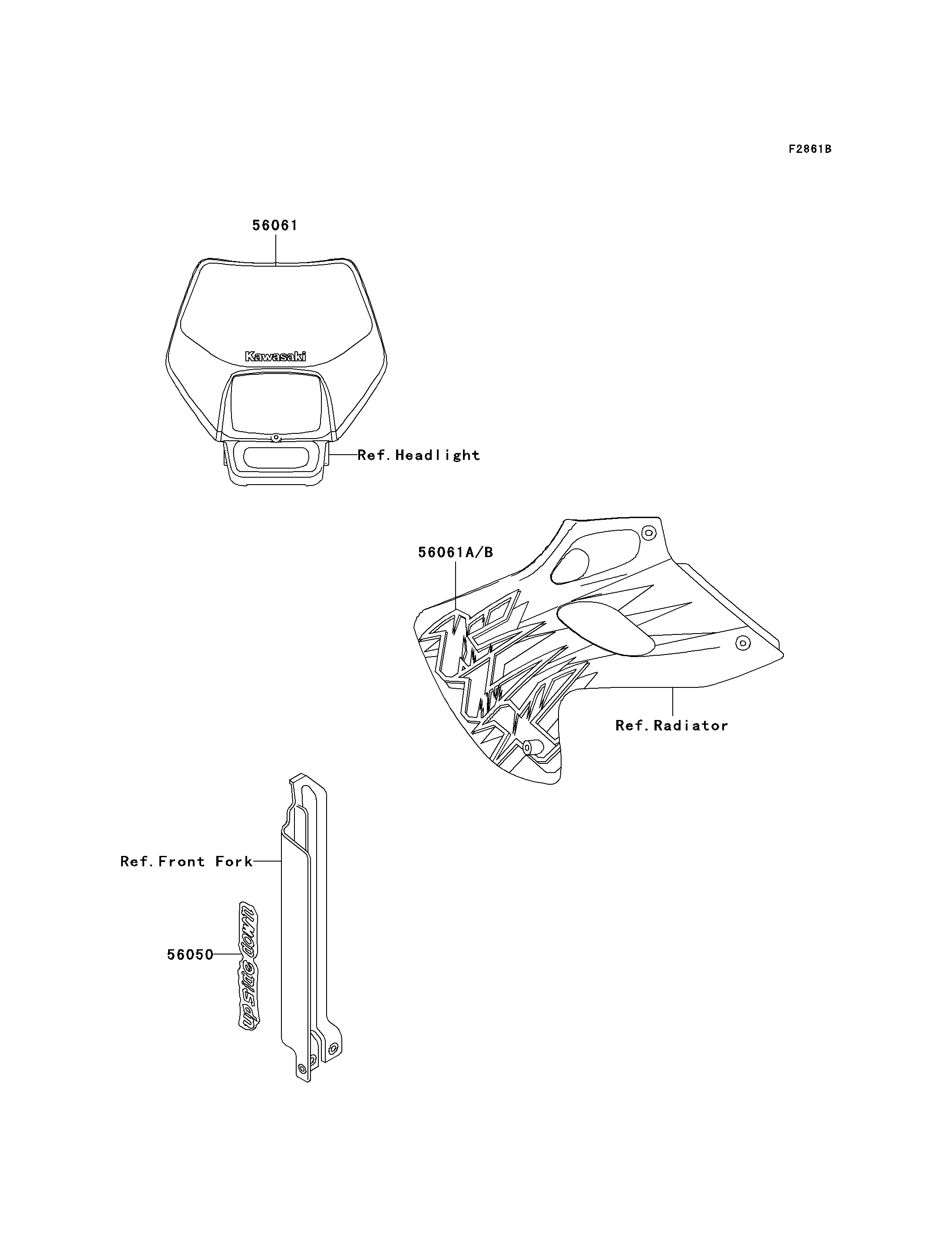

56050
56061
56061A
56061B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,UP SIDE DOWN 56050 56050-1835 2
PATTERN,HEAD LAMP COVER 56061 56061-1044 1
PATTERN,SHROUD,LH 56061A 56061-1398 1
PATTERN,SHROUD,RH 56061B 56061-1399 1
