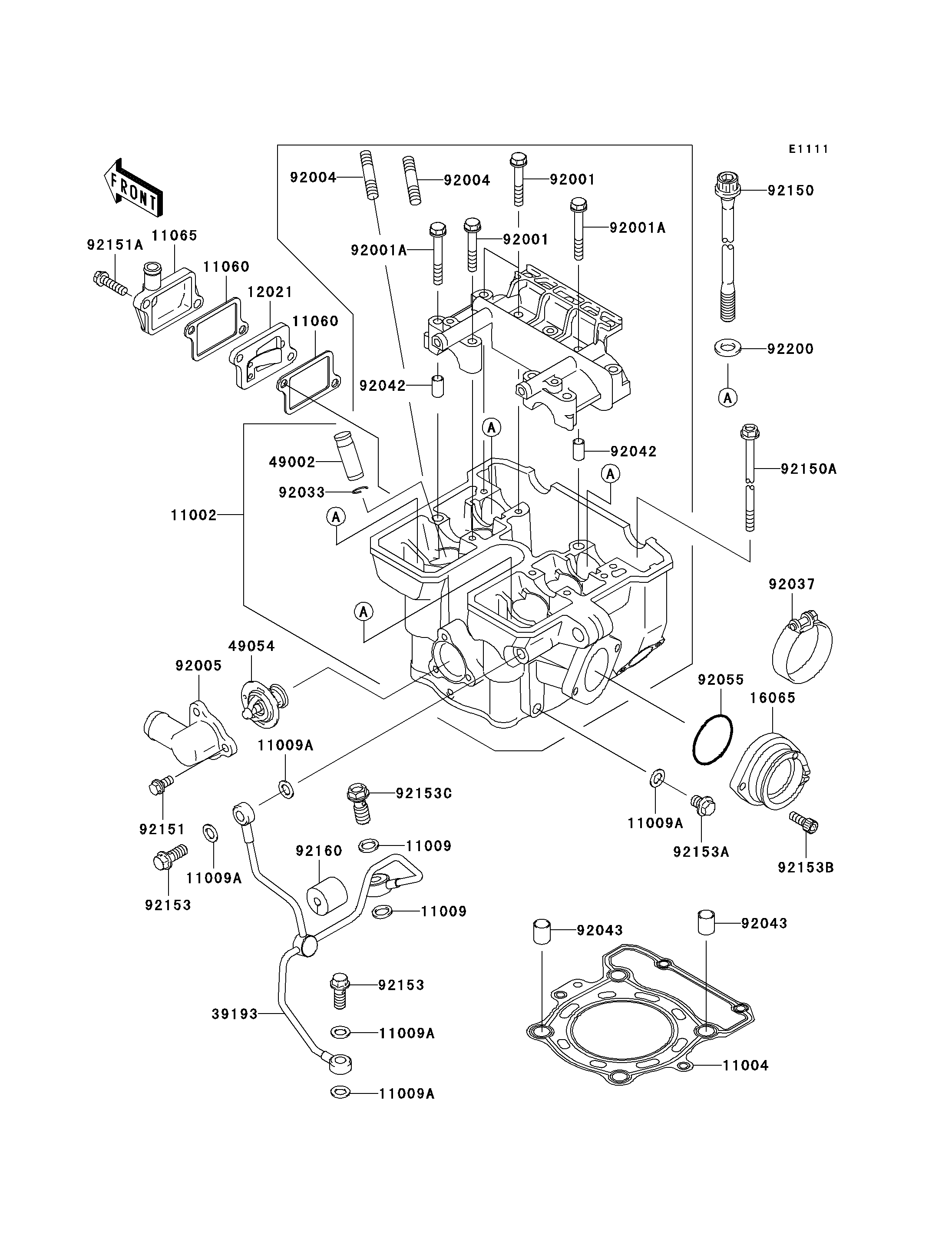

2006 KLX250S - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11002
11004
11009
11009
11009A
11009A
11009A
11009A
11009A
11060
11060
11065
12021
16065
39193
49002
49054
92001
92001
92001A
92001A
92004
92004
92005
92033
92037
92042
92042
92043
92043
92055
92150
92150A
92151
92151A
92153
92153
92153A
92153B
92153C
92160
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-ASSY-CYLINDER 11002 11002-1382 1
GASKET-HEAD 11004 11004-1249 1
GASKET,10X14.5X1.5 11009 11009-1105 2
GASKET,8.2X14X1.0 11009A 11009-1344 5
GASKET,AIR SUCTION VALVE 11060 11060-1886 2
CAP 11065 11065-1190 1
VALVE-ASSY-REED 12021 12021-1115 1
HOLDER-CARBURETOR 16065 16065-1283 1
PIPE-OIL 39193 39193-1018 1
GUIDE-VALVE 49002 49002-1126 AR
THERMOSTAT 49054 49054-1053 1
BOLT,FLANGED,6X38 92001 92001-1105 6
BOLT,6X46 92001A 92001-1872 2
STUD,8X22 92004 92004-1217 2
FITTING 92005 92005-1258 1
RING-SNAP 92033 92033-1247 4
CLAMP,ID=53,BLACK 92037 92037-1304 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,10.1X12X14 92043 92043-4009 2
RING-O 92055 92055-1255 1
BOLT,10X165 92150 92150-1368 4
BOLT,6X135 92150A 92150-1552 2
BOLT,6X12 92151 92151-1133 3
BOLT,6X22 92151A 92151-1937 2
BOLT,BANJO,8X20 92153 92153-0651 2
BOLT,FLANGED,8X10 92153A 92153-1342 1
BOLT,SOCKET,6X16 92153B 92153-1344 2
BOLT,BANJO,10X23 92153C 92153-1345 1
DAMPER,6.3X15X14 92160 92160-1523 1
WASHER,10.5X19X2.3 92200 92200-1042 4
