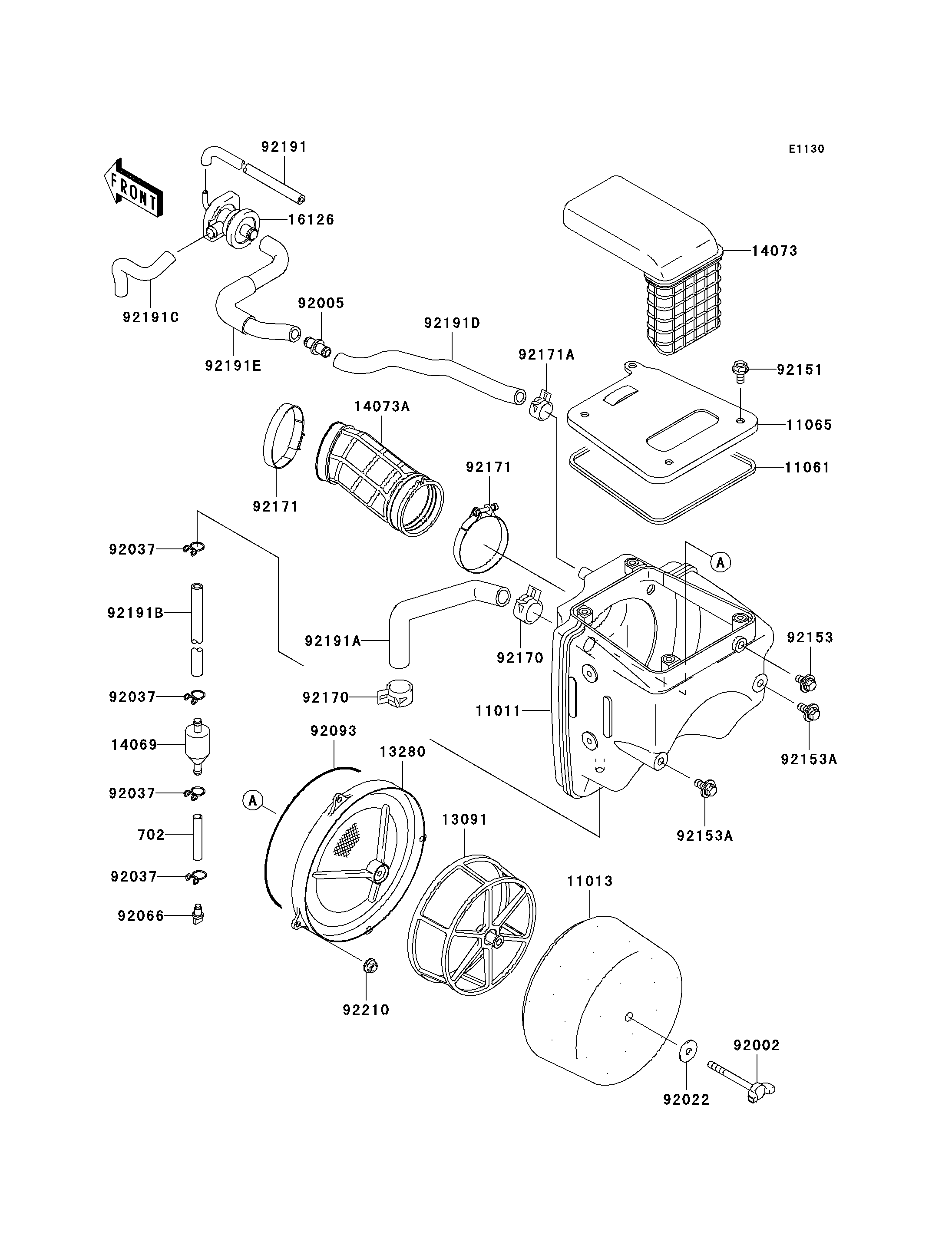

2006 KLX250S - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
702
11011
11013
11061
11065
13091
13280
14069
14073
14073A
16126
92002
92005
92022
92037
92037
92037
92037
92066
92093
92151
92153
92153A
92153A
92170
92170
92171
92171
92171A
92191
92191A
92191B
92191C
92191D
92191E
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TUBE-RUBBER,7X10X70 702 702A0770 1
CASE-AIR FILTER 11011 11011-1616 1
ELEMENT-AIR FILTER 11013 11013-1260 1
GASKET,L=535 11061 11061-1056 1
CAP,AIR FILTER 11065 11065-1182 1
HOLDER,ELEMENT 13091 13091-1454 1
HOLDER,ELEMENT 13280 13280-1213 1
BREATHER 14069 14069-1051 1
DUCT,AIR INTAKE 14073 14073-1588 1
DUCT,AIR FILTER 14073A 14073-1790 1
VALVE,AIR SWITCH 16126 16126-1411 1
BOLT,WING 92002 92002-1719 1
FITTING 92005 92005-1379 1
WASHER,6.5X20X1.6 92022 92022-125 1
CLAMP,TUBE 92037 92037-147 4
PLUG,DRAIN 92066 92066-1211 1
SEAL,L=523 92093 92093-1538 1
BOLT,6X12 92151 92151-1239 4
BOLT,6X12 92153 92153-0503 1
BOLT,FLANGED,6X14 92153A 92153-0936 2
CLAMP 92170 92170-1909 2
CLAMP 92171 92171-0643 2
CLAMP 92171A 92171-1441 1
TUBE,4X9X266 92191 92191-1077 1
TUBE,BREATHER 92191A 92191-1555 1
TUBE,7X10X300 92191B 92191-1556 1
TUBE,CAP-AIR SWITCH 92191C 92191-1574 1
TUBE,AIR SWITCH-AIR FILTER 92191D 92191-1663 1
TUBE 92191E 92191-1686 1
NUT 92210 92210-1164 4
