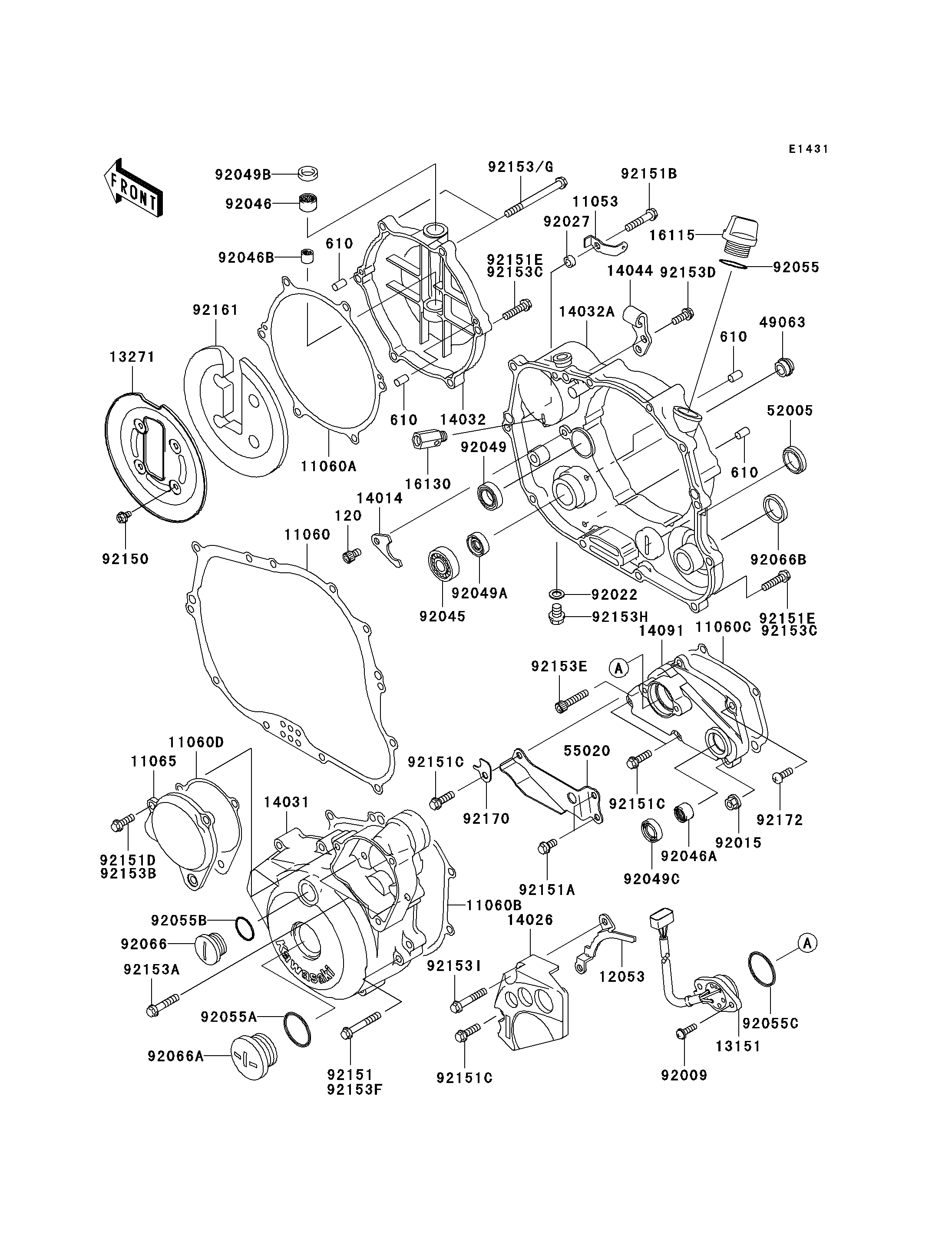

2006 KLX250S - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11060
11060
11060A
11060A
11060B
11060B
11060C
11060C
11060D
11060D
11065
11065
12053
12053
13151
13151
13271
13271
14014
14014
14026
14026
14031
14031
14032
14032
14032A
14032A
14044
14044
14091
14091
16115
16115
16130
16130
49063
49063
52005
52005
55020
55020
92009
92009
92015
92015
92022
92022
92027
92027
92045
92045
92046
92046
92046A
92046A
92046B
92046B
92049
92049
92049A
92049A
92049B
92049B
92049C
92049C
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92066
92066
92066A
92066A
120
120
610
610
610
610
610
610
610
610
92066B
92066B
92150
92150
92151A
92151A
92151B
92151B
92151C
92151C
92151C
92151C
92151C
92151C
92153A
92153A
92153B
92153B
92153C
92153C
92153C
92153C
92153D
92153D
92153E
92153E
92153F
92153F
92153G
92153G
92153H
92153H
92153I
92153I
92161
92161
92170
92170
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-1656 1
GASKET,CLUTCH COVER INNER 11060 11060-1324 1
GASKET,CLUTCH COVER OUTER 11060A 11060-1325 1
GASKET,GENERATOR COVER 11060B 11060-1326 1
GASKET,TRANSMISSION COVER 11060C 11060-1327 1
GASKET,CAP 11060D 11060-1641 1
CAP,GENERATOR COVER 11065 11065-0103 1
GUIDE-CHAIN 12053 12053-1337 1
SWITCH-COMP 13151 13151-1096 1
PLATE 13271 13271-1567 1
PLATE-POSITION 14014 14014-1062 1
COVER-CHAIN 14026 14026-0027 1
COVER-GENERATOR 14031 14031-0042 1
COVER-CLUTCH,OUTER 14032 14032-0058 1
COVER-CLUTCH,INNER 14032A 14032-0059 1
HOLDER-CABLE 14044 14044-1078 1
COVER 14091 14091-0020 1
CAP-OIL FILLER 16115 16115-1053 1
VALVE-ASSY-RELIEF 16130 16130-1001 1
SEAL-MECHANICAL,WATER 49063 49063-1055 1
GAUGE,OIL LEVEL 52005 52005-1009 1
GUARD 55020 55020-1736 1
SCREW,5X16 92009 92009-1571 2
NUT,FLANGED,6MM 92015 92015-1193 1
WASHER,8.2X14X1.0 92022 92022-1488 1
COLLAR,6.5X10.5X4.5 92027 92027-1885 1
BEARING-BALL,6901 92045 92045-1246 1
BEARING-NEEDLE,HK1210 92046 92046-1010 1
BEARING-NEEDLE,HK1312 92046A 92046-1148 1
BEARING-NEEDLE 92046B 92046-1230 1
SEAL-OIL 92049 92049-1191 1
SEAL-OIL,SC 12X22X5 92049A 92049-1228 1
SEAL-OIL,AG0353-F0 92049B 92049-1262 1
SEAL-OIL 92049C 92049-1559 1
RING-O 92055 92055-012 1
RING-O 92055A 92055-091 1
RING-O,20X2 92055B 92055-1146 1
RING-O,27.7X2.4 92055C 92055-1619 1
PLUG 92066 92066-1397 1
PLUG 92066A 92066-1404 1
BOLT-SOCKET,6X10 120 120P0610 1
ROLLER,4X8 610 610A0408 4
PLUG,RCA297 92066B 92066-1411 1
BOLT,5X8 92150 92150-1406 4
BOLT,6X12 92151A 92151-1133 2
BOLT,6X30 92151B 92151-1134 1
BOLT,FLANGED-SMALL,6X20 92151C 92151-1252 4
BOLT,6X30 92153A 92153-0601 2
BOLT,6X18 92153B 92153-0602 3
BOLT,FLANGED,6X25 92153C 92153-0604 12
BOLT,6X16 92153D 92153-0695 2
BOLT,6X30 92153E 92153-0844 1
BOLT,FLANGED-SMALL,6X40 92153F 92153-0980 6
BOLT,FLANGED-SMALL,6X70 92153G 92153-0981 2
BOLT,FLANGED,8X10 92153H 92153-1342 1
BOLT,FLANGED,6X35 92153I 92153-1351 1
DAMPER 92161 92161-1182 1
CLAMP 92170 92170-1785 1
SCREW,6X16 92172 92172-0223 1
