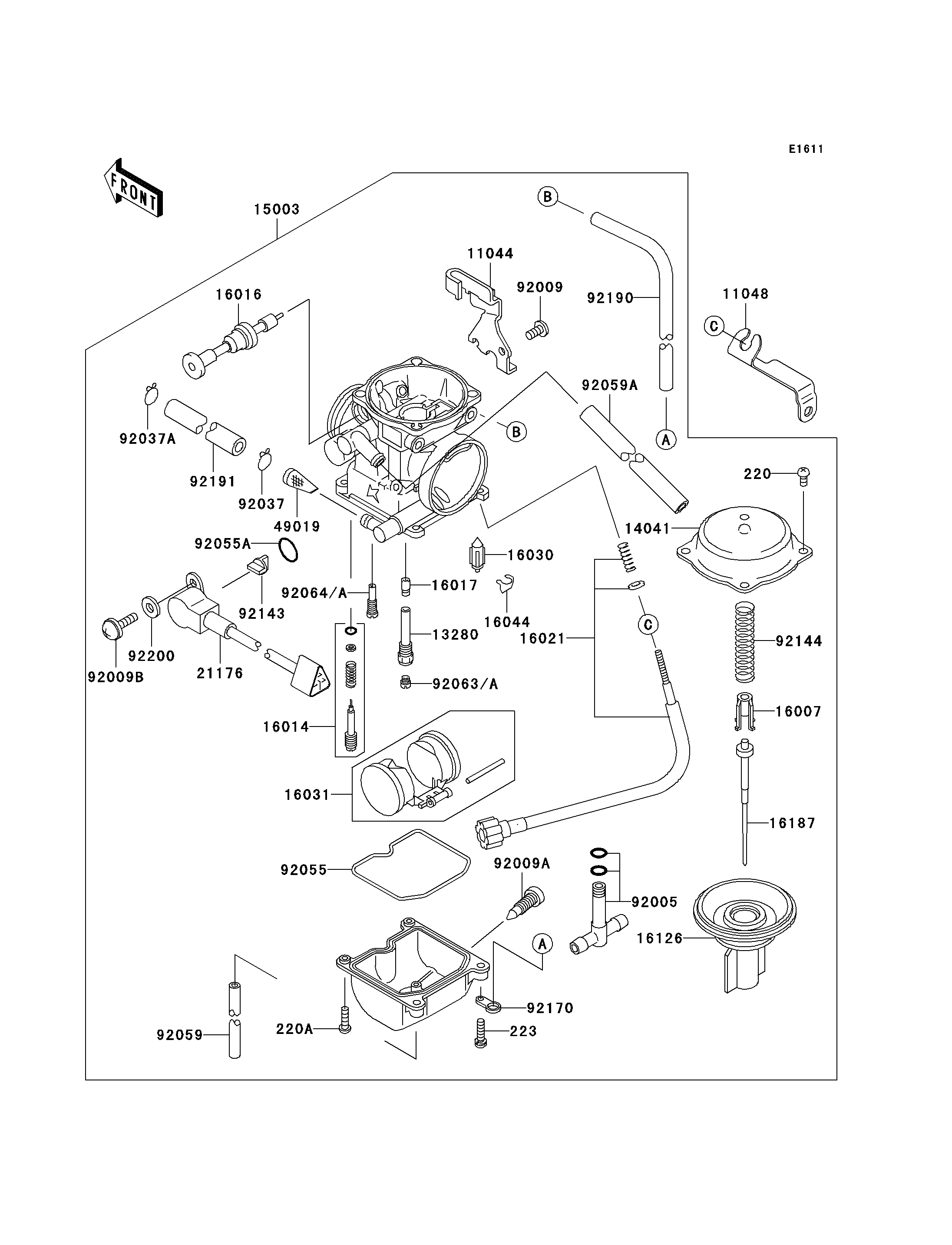

2006 KLX250S - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
220
220
11044
11044
11048
11048
13280
13280
14041
14041
15003
15003
16007
16007
16014
16014
16016
16016
16017
16017
16021
16021
16030
16030
16031
16031
16044
16044
16126
16126
16187
16187
21176
21176
49019
49019
92005
92005
92009
92009
92009A
92009A
92009B
92009B
92037
92037
92037A
92037A
92055
92055
92055A
92055A
92059
92059
92059A
92059A
92063
92063
92063A
92063A
92064
92064
92064A
92064A
92143
92143
92144
92144
92170
92170
92190
92190
92191
92191
92200
92200
220A
220A
223
223
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,4X8 220 220B0408 4
BRACKET,THROTTLE CABLE 11044 11044-1353 1
BRACKET 11048 11048-1818 1
HOLDER,NEEDLE JET 13280 13280-1104 1
COVER-COMP,MIXING,INSIDE 14041 14041-1061 1
CARBURETOR-ASSY,CVK34 15003 15003-0081 1
SEAT-SPRING,VALVE 16007 16007-1117 1
SCREW-PILOT AIR 16014 16014-1081 1
PLUNGER,STARTER 16016 16016-0013 1
JET-NEEDLE 16017 16017-1439 1
SCREW-THROTTLE STOP 16021 16021-1183 1
VALVE-FLOAT 16030 16030-1007 1
FLOAT 16031 16031-1077 1
CLAMP,FLOAT VALVE 16044 16044-007 1
VALVE,VACUUM 16126 16126-1339 1
NEEDLE-JET,NFKT 16187 16187-0271 1
SENSOR 21176 21176-1078 1
FILTER-FUEL 49019 49019-1097 1
FITTING 92005 92005-1290 1
SCREW,5X10 92009 92009-1365 1
SCREW,DRAIN,6X0.75 92009A 92009-1551 1
SCREW 92009B 92009-1781 2
CLAMP,FUEL TUBE 92037 92037-1075 1
CLAMP,TUBE 92037A 92037-1531 1
RING-O,FLOAT CHAMBER 92055 92055-1222 1
RING-O,SENSOR 92055A 92055-1574 1
TUBE,3.5X6.5X330 92059 92059-1110 1
TUBE,6.5X9.5X350 92059A 92059-1237 1
JET-MAIN,#118 92063 92063-1071 1
JET-MAIN,#115 92063A 92063-1118 AR (OPTION)
JET-PILOT,#32 92064 92064-0012 AR (OPTION)
JET-PILOT,#35 92064A 92064-1209 1
COLLAR 92143 92143-1907 1
SPRING,VACUUM VALVE 92144 92144-1538 1
CLAMP,TUBE 92170 92170-1496 1
TUBE,5X8X430 92190 92190-1560 1
TUBE 92191 92191-1689 1
WASHER 92200 92200-1369 2
SCREW-PAN-CROS,4X14 220A 220D0414 3
SCREW-PAN-WS-CROS,4X16 223 223D0416 1
