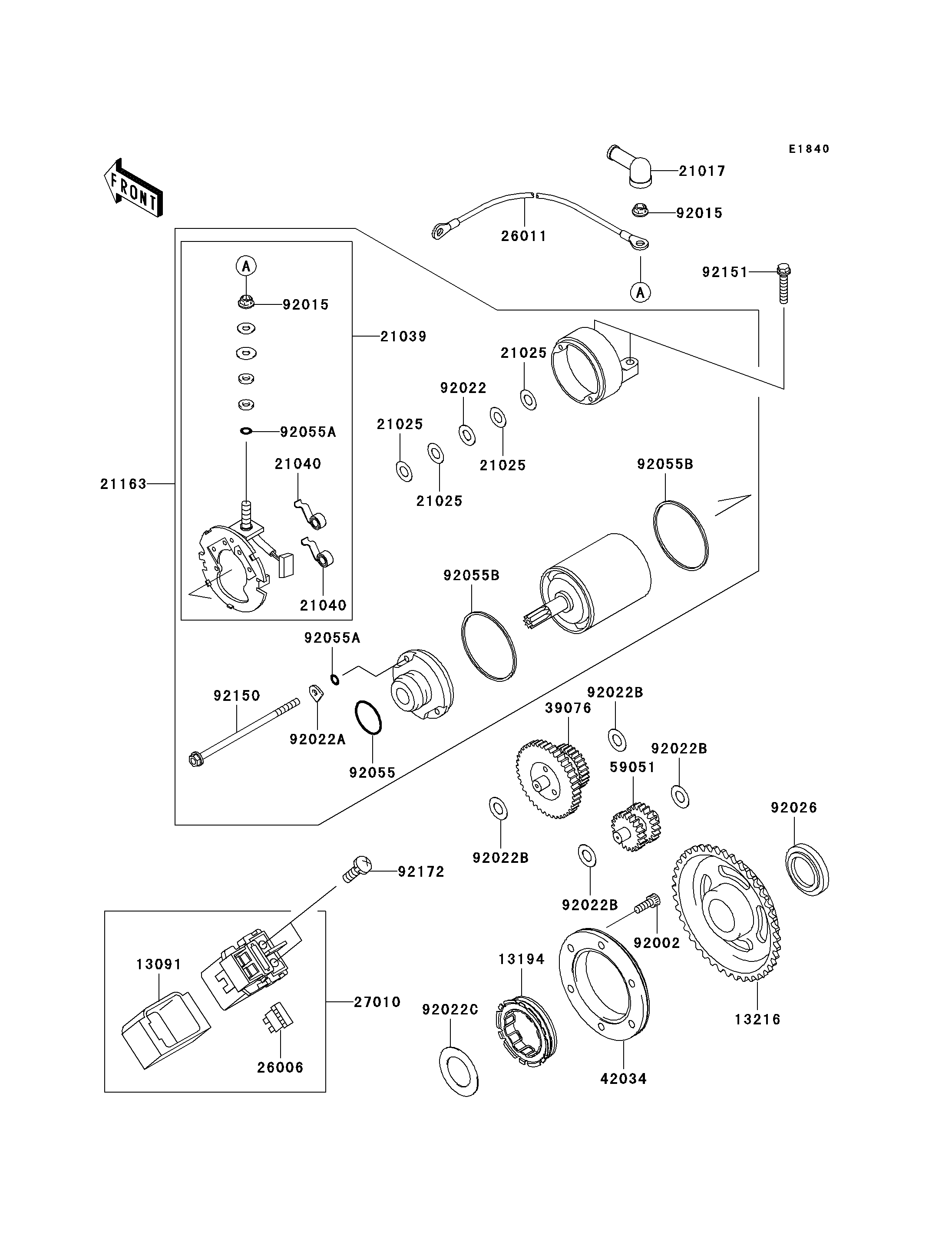

2006 KLX250S - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
13091
13194
13216
21017
21025
21025
21025
21025
21039
21040
21040
21163
26006
26011
27010
39076
42034
59051
92002
92015
92015
92022
92022A
92022B
92022B
92022B
92022B
92022C
92026
92055
92055A
92055A
92055B
92055B
92150
92151
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,SWITCH 13091 13091-1883 1
CLUTCH-ONEWAY 13194 13194-1091 1
GEAR-COMP,ONEWAY CLUTCH 13216 13216-1148 1
GROMMET,STARTER TERMINAL 21017 21017-017 1
WASHER,9.1X18X0.2 21025 21025-011 AR
BRUSH,CARBON 21039 21039-1062 1
SPRING-BRUSH 21040 21040-1057 2
STARTER-ELECTRIC 21163 21163-1256 1
FUSE,20A-Y 26006 26006-1051 1
WIRE-LEAD 26011 26011-1604 1
SWITCH 27010 27010-1336 1
LIMITER,STARTER IDLER GEAR 39076 39076-1069 1
COUPLING 42034 42034-1181 1
GEAR-SPUR,IDLE 59051 59051-1304 1
BOLT,SOCKET,6X16 92002 92002-1778 6
NUT,STARTER MOTOR 92015 92015-1476 2
WASHER,9.1X18X0.8 92022 92022-1132 1
WASHER,LOCK,T=2.0 92022A 92022-1458 2
WASHER,10.2X20X0.5 92022B 92022-1649 4
WASHER,27.2X44X1.0 92022C 92022-1781 1
SPACER 92026 92026-1450 1
RING-O 92055 92055-1276 1
RING-O,4.5X2.0 92055A 92055-1370 3
RING-O,STARTER MOTOR 92055B 92055-1381 2
BOLT,STARTER MOTOR 92150 92150-1838 2
BOLT,6X30 92151 92151-1134 2
SCREW-PAN-WS-CROS,5X10 92172 92172-0234 2
