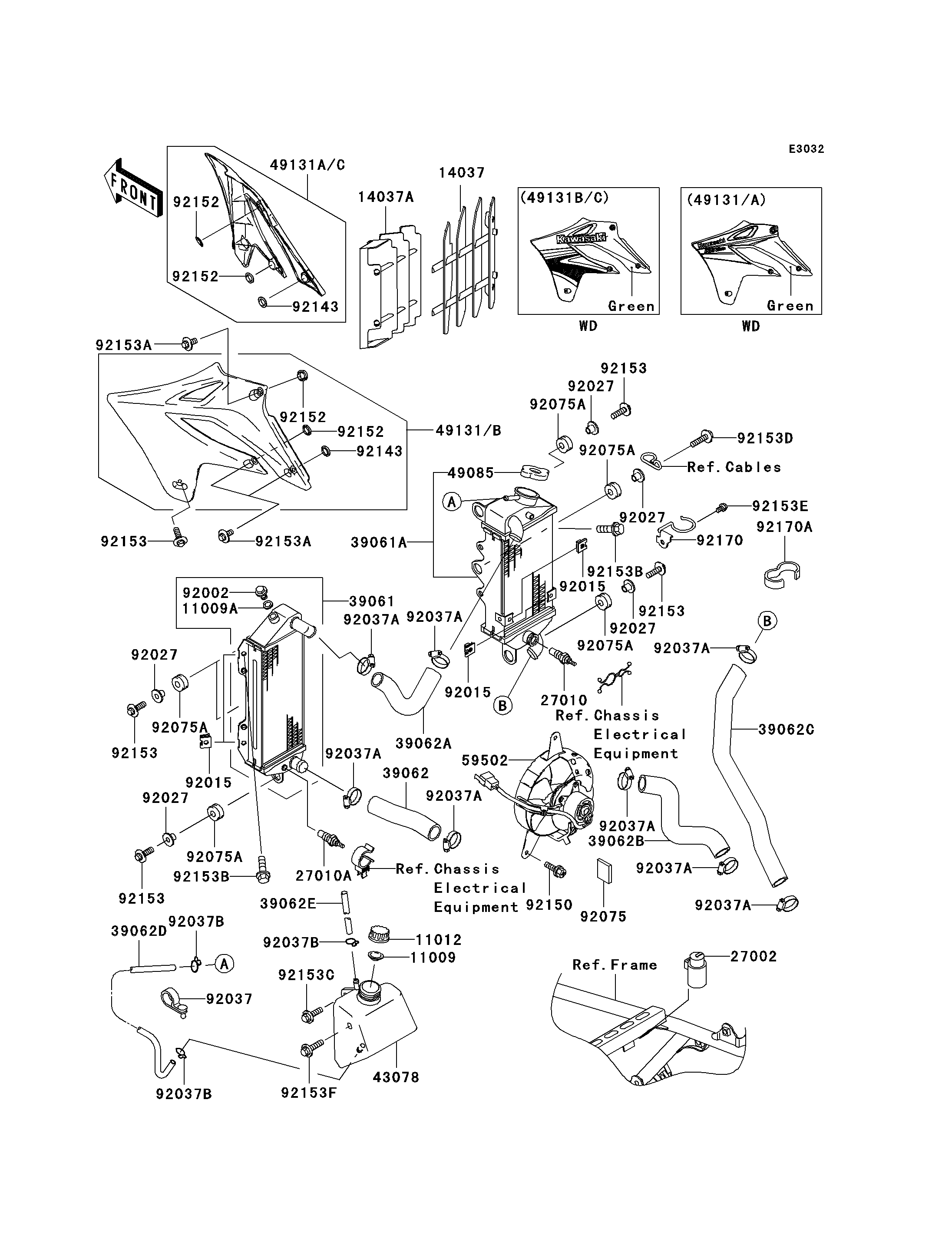

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| GASKET,DRAIN BOLT | 11009A | 11009-1152 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| SCREEN,RH,WHITE | 14037 | 14037-0047-RZ | 1 | ||
| SCREEN,WHITE | 14037A | 14037-1099-RZ | 1 | ||
| RELAY-ASSY | 27002 | 27002-1051 | 1 | ||
| SWITCH,FAN | 27010 | 27010-1180 | 1 | ||
| SWITCH,WARNING | 27010A | 27010-1199 | 1 | ||
| RADIATOR-ASSY,LH | 39061 | 39061-1193 | 1 | ||
| RADIATOR-ASSY,RH | 39061A | 39061-1303 | 1 | ||
| HOSE-COOLING,HEAD-RADIATOR | 39062 | 39062-1535 | 1 | ||
| HOSE-COOLING,RADIATOR,L-R | 39062A | 39062-1536 | 1 | ||
| HOSE-COOLING,PUMP-CYLINDER | 39062B | 39062-1563 | 1 | ||
| HOSE-COOLING,RADIATOR-PUMP | 39062C | 39062-1564 | 1 | ||
| HOSE-COOLING,RESERVOIR | 39062D | 39062-1613 | 1 | ||
| HOSE-COOLING,5X9X370 | 39062E | 39062-1891 | 1 | ||
| RESERVOIR | 43078 | 43078-0001 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1066 | 1 | ||
| SHROUD-ENGINE,LH,L.GREEN | 49131 | 49131-5067-290 | 1 | ||
| SHROUD-ENGINE,RH,L.GREEN | 49131A | 49131-5068-290 | 1 | ||
| FAN-ASSY | 59502 | 59502-1139 | 1 | ||
| BOLT,RADIATOR DRAIN | 92002 | 92002-1682 | 1 | ||
| NUT | 92015 | 92015-1487 | 4 | ||
| COLLAR,L=11.1 | 92027 | 92027-194 | 6 | ||
| CLAMP,SPEED,L=58 | 92037 | 92037-1163 | 1 | ||
| CLAMP,COOLING HOSE | 92037A | 92037-1589 | 8 | ||
| CLAMP | 92037B | 92037-1712 | 3 | ||
| DAMPER,IGNITION | 92075 | 92075-1982 | 1 | ||
| DAMPER | 92075A | 92075-209 | 6 | ||
| COLLAR | 92143 | 92143-1196 | 2 | ||
| BOLT,6X12 | 92150 | 92150-1186 | 3 | ||
| COLLAR | 92152 | 92152-1235 | 4 | ||
| BOLT,6X20 | 92153 | 92153-0502 | 7 | ||
| BOLT,6X12 | 92153A | 92153-0503 | 6 | ||
| BOLT,FLANGED,6X14 | 92153B | 92153-0936 | 2 | ||
| BOLT,FLANGED,6X22 | 92153C | 92153-0950 | 1 | ||
| BOLT,FLANGED WP,6X25 | 92153D | 92153-1008 | 1 | ||
| BOLT,FLANGED,6X10 | 92153E | 92153-1354 | 1 | ||
| BOLT,FLANGED,6X30 | 92153F | 92153-1457 | 1 | ||
| CLAMP | 92170 | 92170-1357 | 1 | ||
| CLAMP | 92170A | 92170-1419 | 1 |
