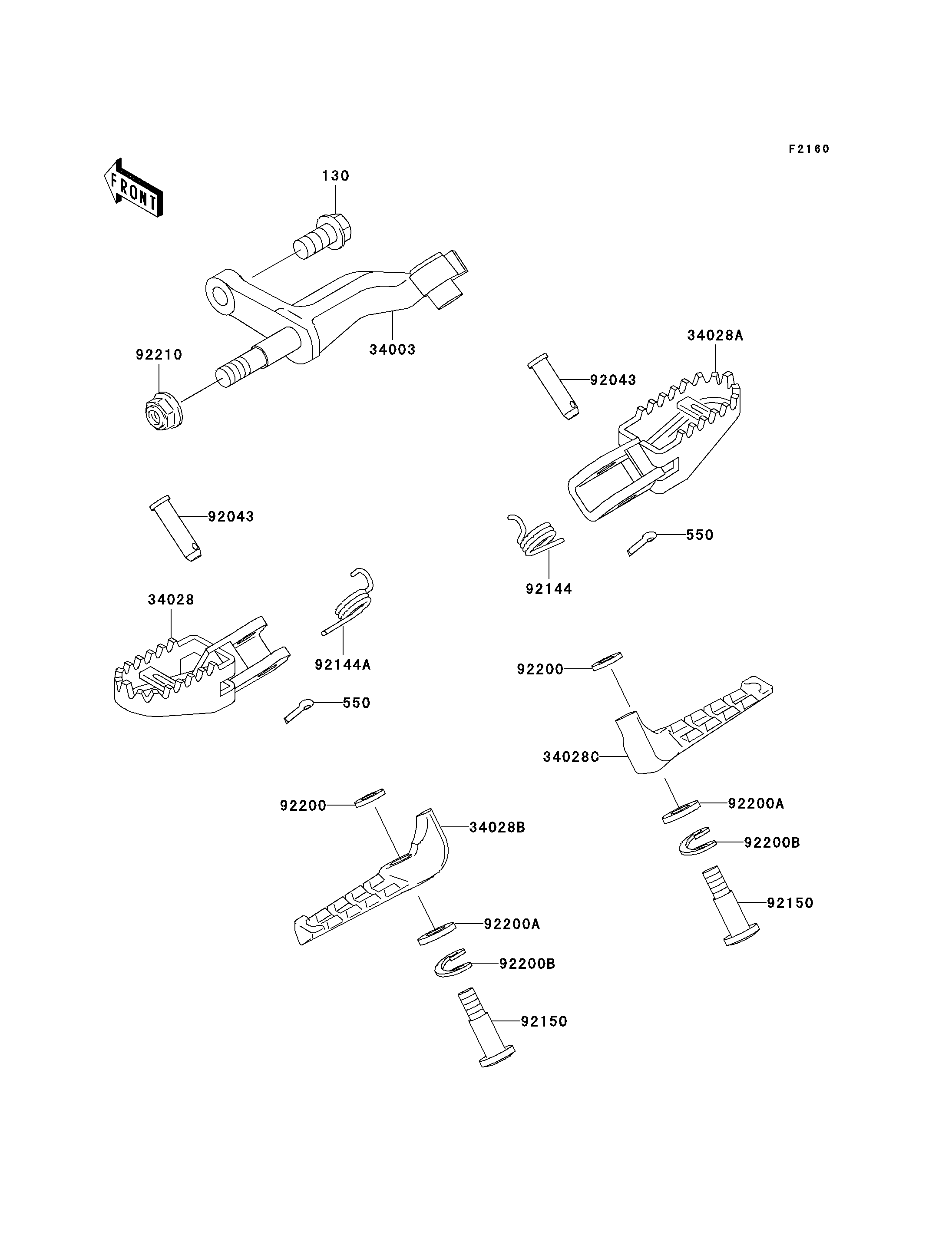

2006 KLX250S - Footrests

DOWNLOAD PDF
SELECT A NEW PART
130
550
550
34003
34028
34028A
34028B
34028C
92043
92043
92144
92144A
92150
92150
92200
92200
92200A
92200A
92200B
92200B
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,10X20 130 130P1020 1
PIN-COTTER,2.5X15 550 550D2515 2
HOLDER-STEP,RH,P.SILVER 34003 34003-1401-458 1
STEP,FR,LH 34028 34028-1361 1
STEP,FR,RH 34028A 34028-1362 1
STEP,RR,LH 34028B 34028-1376 1
STEP,RR,RH 34028C 34028-1377 1
PIN,8X35.5 92043 92043-115 2
SPRING,STEP RETURN,RH 92144 92144-1685 1
SPRING,STEP RETURN,LH 92144A 92144-1749 1
BOLT,SOCKET,8X34 92150 92150-1584 2
WASHER,8.5X16X1.2 92200 92200-0089 2
WASHER,10.5X19X2.3 92200A 92200-1042 2
WASHER,SPRING 92200B 92200-1133 2
NUT,LOCK,FLANGED,10MM 92210 92210-1080 1
