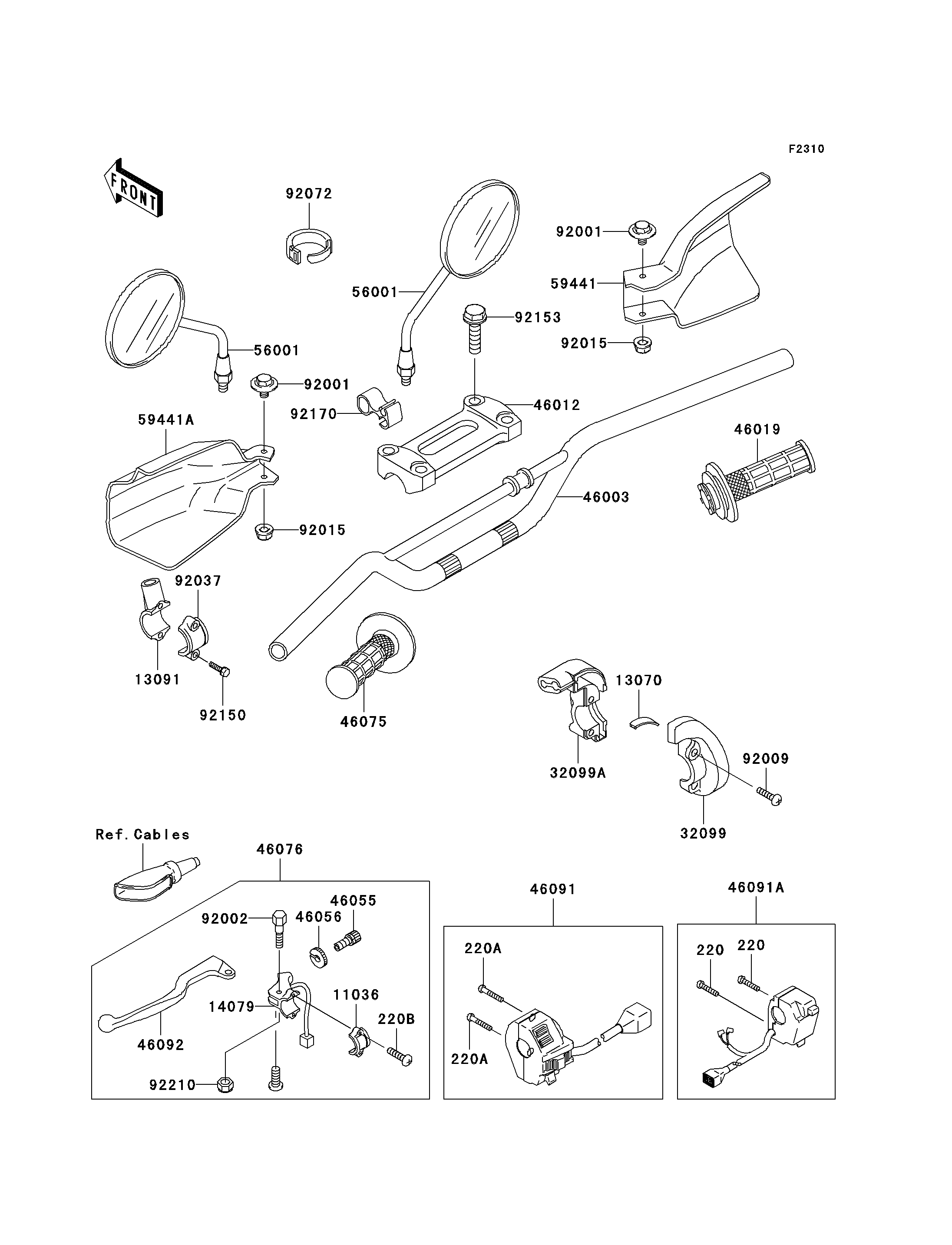

2006 KLX250S - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
220
220
220A
220A
220B
11036
13070
13091
14079
32099
32099A
46003
46012
46019
46055
46056
46075
46076
46091
46091A
46092
56001
56001
59441
59441A
92001
92001
92002
92009
92015
92015
92037
92072
92150
92153
92170
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,5X25 220 220C0525 2
SCREW-PAN-CROS,5X30 220A 220C0530 2
SCREW-PAN-CROSS,5X14 220B 220F0514 2
BRACKET-A,LEVER HOLDER 11036 11036-1297 1
GUIDE,THROTTLE CABLE 13070 13070-1274 1
HOLDER,MIRROR 13091 13091-1718 1
HOLDER-ASSY,CLUTCH CABLE 14079 14079-1125 1
CASE,THROTTLE,UPP 32099 32099-1146 1
CASE,THROTTLE,LWR 32099A 32099-1147 1
HANDLE,P.SILVER 46003 46003-1383-458 1
HOLDER-HANDLE,UPP,P.SILVER 46012 46012-0010-458 1
GRIP-ASSY,THROTTLE 46019 46019-1093 1
SCREW,CABLE ADJUST,8MM 46055 46055-009 1
NUT,CABLE ADJUST 46056 46056-006 1
GRIP,LH 46075 46075-1149 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-1219 1
HOUSING-ASSY-CONTROL,LH 46091 46091-1690 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-1733 1
LEVER-GRIP,CLUTCH 46092 46092-1159 1
MIRROR-ASSY 56001 56001-1285 2
COVER-HANDLE,RH,L.GREEN 59441 59441-0001-290 1
COVER-HANDLE,LH,L.GREEN 59441A 59441-0002-290 1
BOLT,FLANGED,6X10 92001 92001-1034 2
BOLT,LEVER SET 92002 92002-1880 1
SCREW,5X16 92009 92009-1699 2
NUT,LOCK,FLANGED,6MM 92015 92015-1603 2
CLAMP,LEVER HOLDER 92037 92037-1621 1
BAND,L=140 92072 92072-1293 4
BOLT,5X20 92150 92150-1389 2
BOLT,FLANGED,8X30 92153 92153-1519 4
CLAMP,BRAKE HOSE 92170 92170-1255 1
NUT,LOCK,6MM 92210 92210-0006 1
