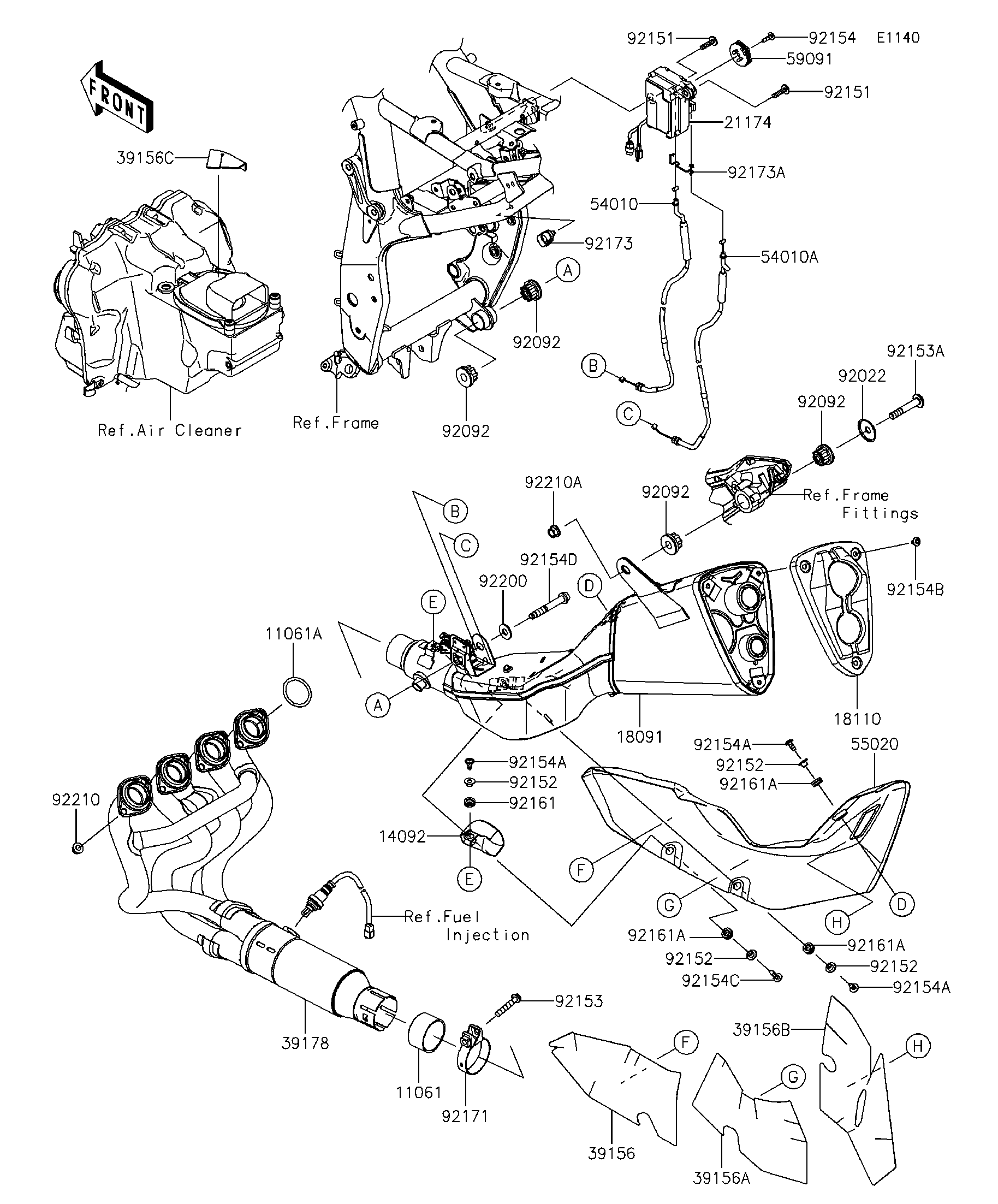

2016 Z800 ABS - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
14092
18091
18110
21174
39156
39156A
39156B
39156C
39178
54010
54010A
55020
59091
92022
92092
92092
92092
92092
92151
92151
92152
92152
92152
92152
92153
92153A
92154
92154A
92154A
92154A
92154B
92154C
92154D
92161
92161A
92161A
92161A
92171
92173
92173A
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MUFFLER-EX 11061 11061-0800 1
GASKET,CYL HED-EX 11061A 11061-0823 4
COVER,PULLEY 14092 14092-0949 1
BODY-COMP-MUFFLER 18091 18091-0978 1
BODY END-MUFFLER 18110 18110-0157 1
MOTOR-ELECTRIC 21174 21174-0008 1
PAD,FRONT 39156 39156-0885 1
PAD,MID 39156A 39156-0886 1
PAD,REAR 39156B 39156-0887 1
PAD,AIR FILTER 39156C 39156-0946 1
MANIFOLD-COMP-EXHAUST 39178 39178-0226 1
CABLE,OPEN 54010 54010-0586 1
CABLE,CLOSE 54010A 54010-0587 1
GUARD,MUFFLER 55020 55020-0838 1
PULLEY 59091 59091-0007 1
WASHER 92022 92022-289 1
BUSHING-RUBBER,MUFFLER 92092 92092-1087 4
BOLT,SOCKET,6X25 92151 92151-1611 2
COLLAR,6.3X8.3X7.2 92152 92152-1602 4
BOLT,8X45 92153 92153-0702 1
BOLT,SOCKET,10X58 92153A 92153-1930 1
BOLT,TORX,5X18 92154 92154-0217 1
BOLT,SOCKET,6X14 92154A 92154-0856 3
BOLT,HEX HEAD,6X8 92154B 92154-0987 3
BOLT,SOCKET,6X27 92154C 92154-1192 1
BOLT,SOCKET 92154D 92154-1281 1
DAMPER,PULLEY COVER 92161 92161-0999 1
DAMPER 92161A 92161-1475 3
CLAMP 92171 92171-0133 1
CLAMP,12MM DIA. 92173 92173-0736 1
CLAMP 92173A 92173-0921 1
WASHER,10.5X25X2.0 92200 92200-1377 1
NUT,8MM 92210 92210-0076 8
NUT,LOCK,FLANGED,10MM 92210A 92210-1139 1
