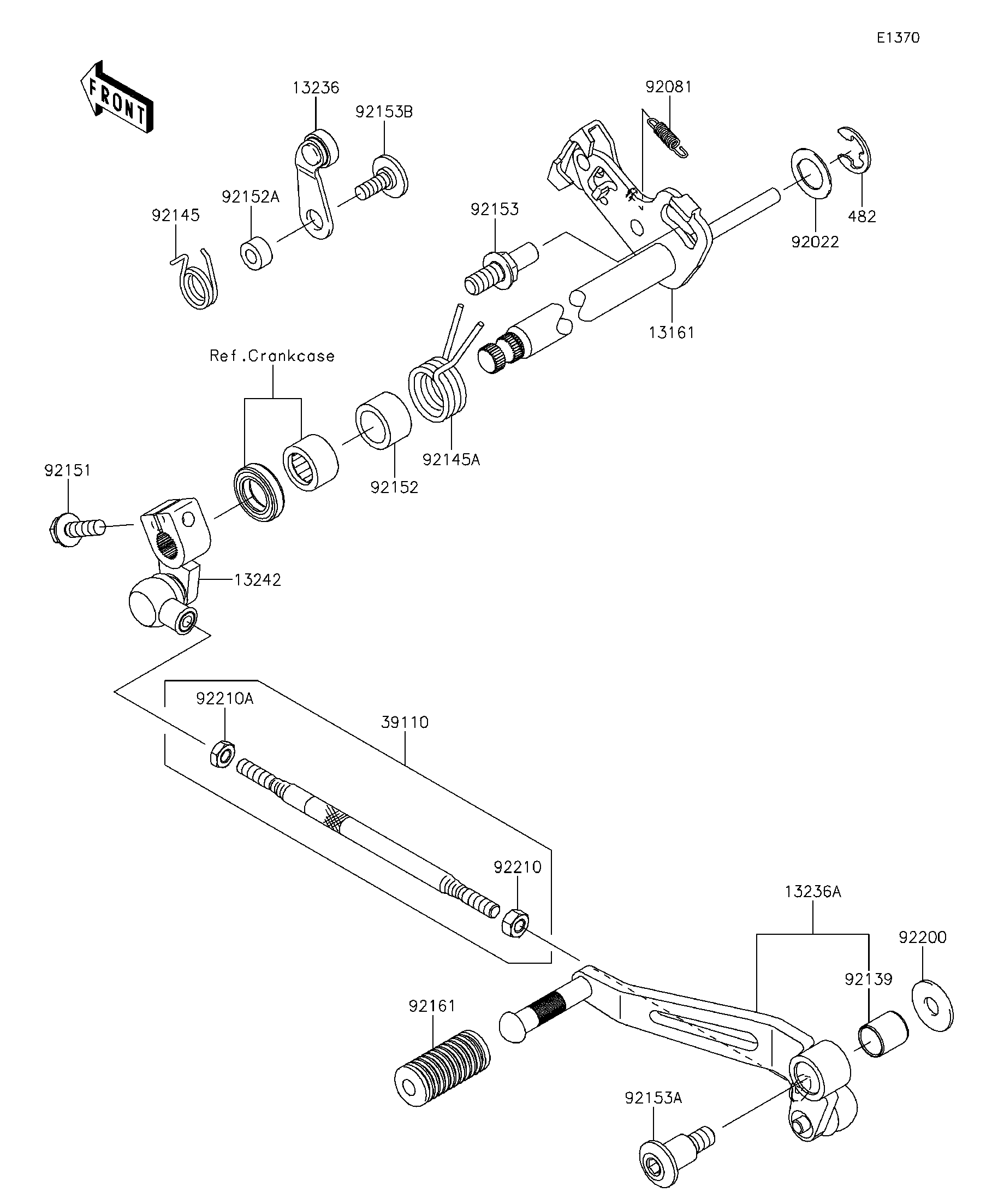

2016 Z800 ABS - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
13161
13236
13236A
13242
39110
482
92022
92081
92139
92145
92145A
92151
92152
92152A
92153
92153A
92153B
92161
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP-CHANGE SHAFT 13161 13161-0561 1
LEVER-COMP,POSITION 13236 13236-0106 1
LEVER-COMP,CHANGE PEDAL 13236A 13236-0732 1
LEVER-ASSY-CHANGE 13242 13242-0090 1
ROD-ASSY-TIE 39110 39110-0033 1
CIRCLIP-TYPE-E,12MM 482 482J0200 1
WASHER,CHANGE SHAFT 92022 92022-1628 1
SPRING,PAWL RETURN 92081 92081-1708 1
BUSHING 92139 92139-0023 1
SPRING,GEAR POSITION 92145 92145-0944 1
SPRING 92145A 92145-1122 1
BOLT,FLANGED,6X20 92151 92151-1226 1
COLLAR,14.2X19.9X12 92152 92152-1587 1
COLLAR,6.1X12X6 92152A 92152-1588 1
BOLT,RETURN SPRING 92153 92153-0421 1
BOLT,SOCKET,8X16.7 92153A 92153-0446 1
BOLT,6X20 92153B 92153-1505 1
DAMPER,CHANGE PEDAL 92161 92161-1466 1
WASHER,8.0X22.0X1.5 92200 92200-0174 1
NUT,6MM 92210 92210-1100 1
NUT,LEFT HANDED,6MM 92210A 92210-1101 1
