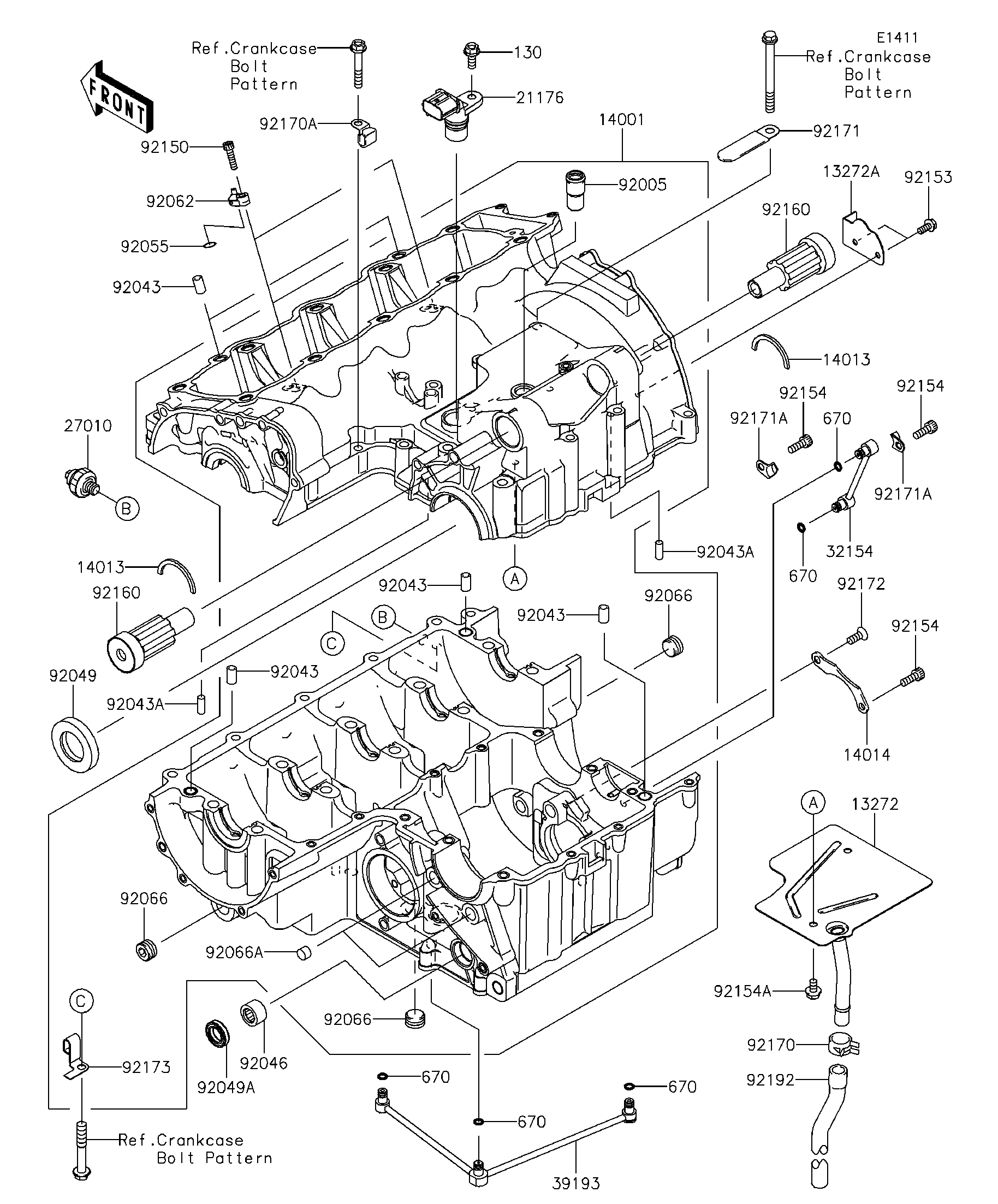

2016 Z800 ABS - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
130
13272
13272A
14001
14013
14013
14014
21176
27010
32154
39193
670
670
670
670
670
92005
92043
92043
92043
92043
92043A
92043A
92046
92049
92049A
92055
92062
92066
92066
92066
92066A
92150
92153
92154
92154
92154
92154A
92160
92160
92170
92170A
92171
92171A
92171A
92172
92173
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130CC0616 1
PLATE,BREATHER UPPER 13272 13272-1254 1
PLATE,BREATHER SIDE 13272A 13272-1255 1
SET-CRANKCASE 14001 14001-0616 1
RING-POSITION 14013 14013-1051 2
PLATE-POSITION 14014 14014-0563 1
SENSOR,SPEED 21176 21176-0054 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE,RH 32154 32154-1493 1
PIPE-OIL 39193 39193-0014 1
O RING 670 670D1505 5
FITTING,BREATHER 92005 92005-0713 1
PIN,DOWEL,10X14 92043 92043-1037 5
PIN,6X16 92043A 92043-1690 2
BEARING-NEEDLE,HK1412FM 92046 92046-0043 1
SEAL-OIL,TC32578 92049 92049-1474 1
SEAL-OIL,TC14245 92049A 92049-1520 1
RING-O,5.5X1.5 92055 92055-1343 2
NOZZLE,OIL JET 92062 92062-0022 2
PLUG,PT3/8X10 92066 92066-0003 3
PLUG 92066A 92066-1110 2
BOLT,SOCKET,5X20 92150 92150-1019 2
BOLT,FLANGED,5X12 92153 92153-0753 2
BOLT,SOCKET,6X16 92154 92154-0235 3
BOLT,FLANGED,6X10 92154A 92154-0356 2
DAMPER 92160 92160-1868 2
CLAMP 92170 92170-1118 1
CLAMP 92170A 92170-1577 1
CLAMP 92171 92171-0092 1
CLAMP,OIL PIPE 92171A 92171-1595 2
SCREW,6X16 92172 92172-0090 1
CLAMP 92173 92173-1034 1
TUBE,BREATHER 92192 92192-1104 1
