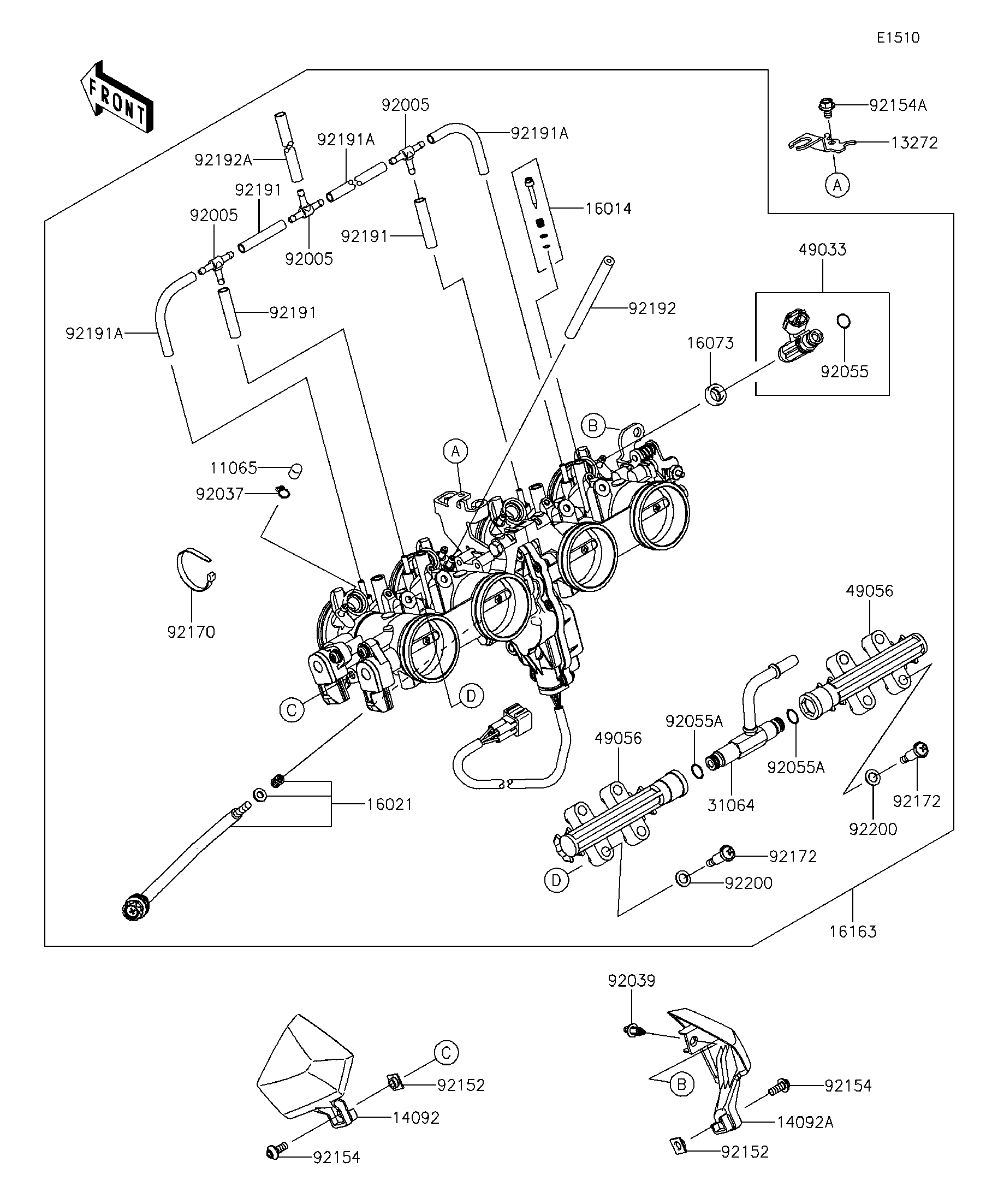

2016 Z800 ABS - Throttle

DOWNLOAD PDF
SELECT A NEW PART
11065
13272
14092
14092A
16014
16021
16073
16163
31064
49033
49056
49056
92005
92005
92005
92037
92039
92055
92055A
92055A
92152
92152
92154
92154
92154A
92170
92172
92172
92191
92191
92191
92191A
92191A
92191A
92192
92192A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0072 4
PLATE,THROTTLE CABLE 13272 13272-1376 1
COVER,THROTTLE,LH 14092 14092-0952 1
COVER,THROTTLE,RH 14092A 14092-0953 1
SCREW-PILOT AIR 16014 16014-0017 4
SCREW-THROTTLE STOP 16021 16021-0029 1
INSULATOR,INJECTER 16073 16073-1123 4
THROTTLE-ASSY 16163 16163-0798 1
PIPE-COMP,FUEL 31064 31064-0625 1
NOZZLE-INJECTION 49033 49033-0029 4
PIPE-INJECTION 49056 49056-0037 2
FITTING 92005 92005-1380 3
CLAMP,TUBE 92037 92037-1124 4
RIVET 92039 92039-0023 1
RING-O,INJECTION NOZZLE 92055 92055-0124 4
RING-O 92055A 92055-0761 2
COLLAR 92152 92152-1709 2
BOLT,SOCKET,5X12 92154 92154-0917 2
BOLT,FLANGED,5X8 92154A 92154-0964 1
CLAMP 92170 92170-3749 1
SCREW,PIPE INJECTION 92172 92172-0828 4
TUBE,3.2X7.4X40 92191 92191-1551 3
TUBE,3.2X7.4X70 92191A 92191-1552 3
TUBE,3.2X7.4X90 92192 92192-1265 1
TUBE,3.2X7.4X100 92192A 92192-1266 1
WASHER 92200 92200-3807 4
