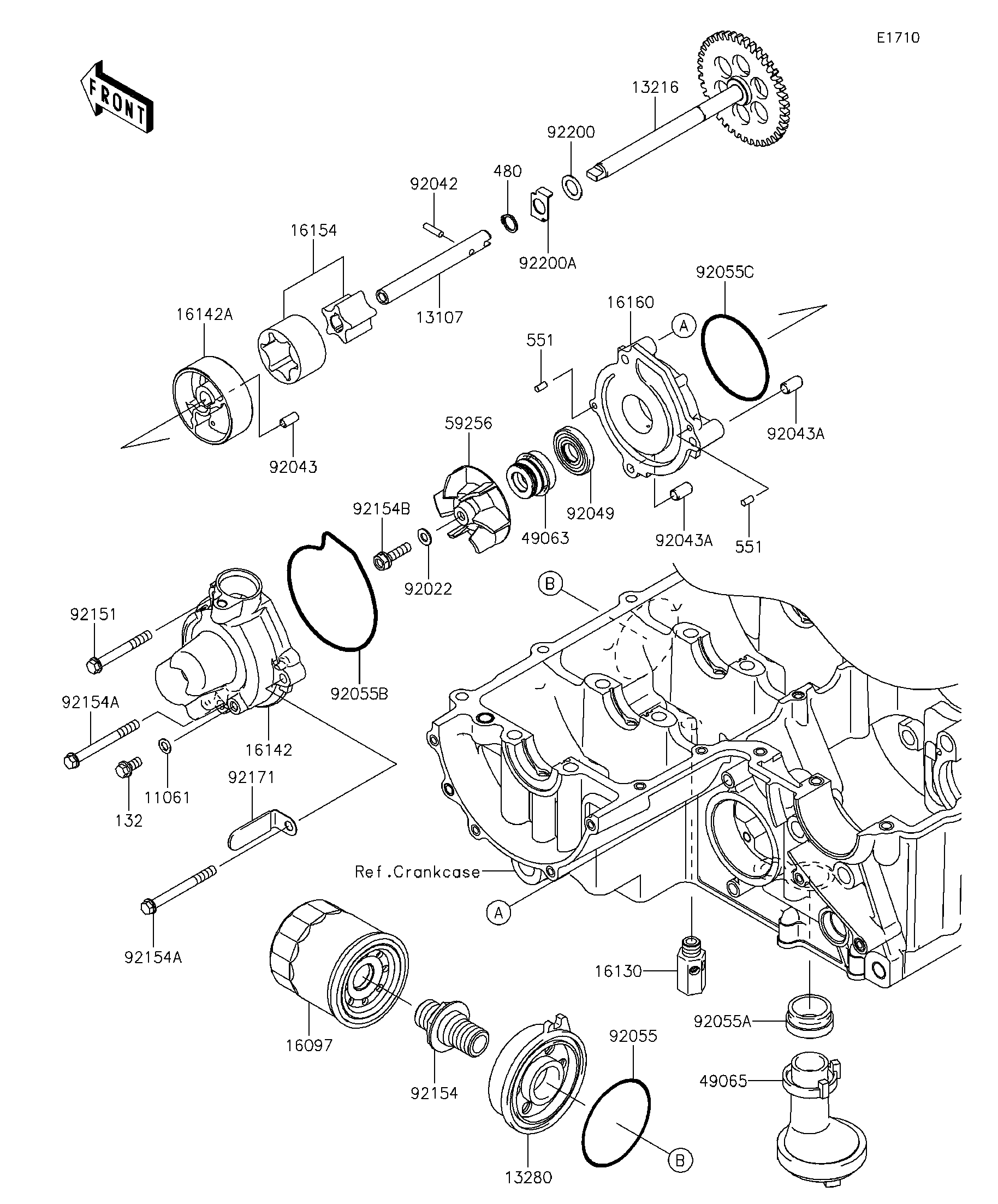

2016 Z800 ABS - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
11061
13107
132
13216
13280
16097
16130
16142
16142A
16154
16160
480
49063
49065
551
551
59256
92022
92042
92043
92043A
92043A
92049
92055
92055A
92055B
92055C
92151
92154
92154A
92154A
92154B
92171
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11061 11061-0107 1
SHAFT,OIL PUMP 13107 13107-0046 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
GEAR-COMP,OIL PUMP,41T 13216 13216-0872 1
HOLDER 13280 13280-0775 1
FILTER-ASSY-OIL 16097 16097-0008 1
VALVE-ASSY-RELIEF 16130 16130-1058 1
COVER-PUMP 16142 16142-0063 1
COVER-PUMP,OIL 16142A 16142-1146 1
ROTOR-PUMP 16154 16154-0057 1
BODY,OIL PUMP 16160 16160-0727 1
CIRCLIP-TYPE-C,11MM 480 480J1100 1
SEAL-MECHANICAL,WATER 49063 49063-1055 1
FILTER-OIL 49065 49065-0712 1
PIN-DOWEL,4X8 551 551A0408 2
IMPELLER 59256 59256-0555 1
WASHER,6.1X12X1 92022 92022-077 1
PIN,DOWEL,4X13.8 92042 92042-030 1
PIN,4.2X6X12 92043 92043-1262 1
PIN,6.2X8X14 92043A 92043-1263 2
SEAL-OIL 92049 92049-0798 1
RING-O,63.3X3.1 92055 92055-0738 1
RING-O,OIL FILTER 92055A 92055-1503 1
RING-O,WATER PUMP COVER 92055B 92055-1571 1
RING-O,59.6X2.4 92055C 92055-3018 1
BOLT,6X50 92151 92151-1234 1
BOLT 92154 92154-0735 1
BOLT-FLANGED-SMALL,6X60 92154A 92154-0949 2
BOLT,FLANGED,6X22 92154B 92154-1069 1
CLAMP 92171 92171-1420 1
WASHER,11X18X1 92200 92200-0786 1
WASHER 92200A 92200-0818 1
