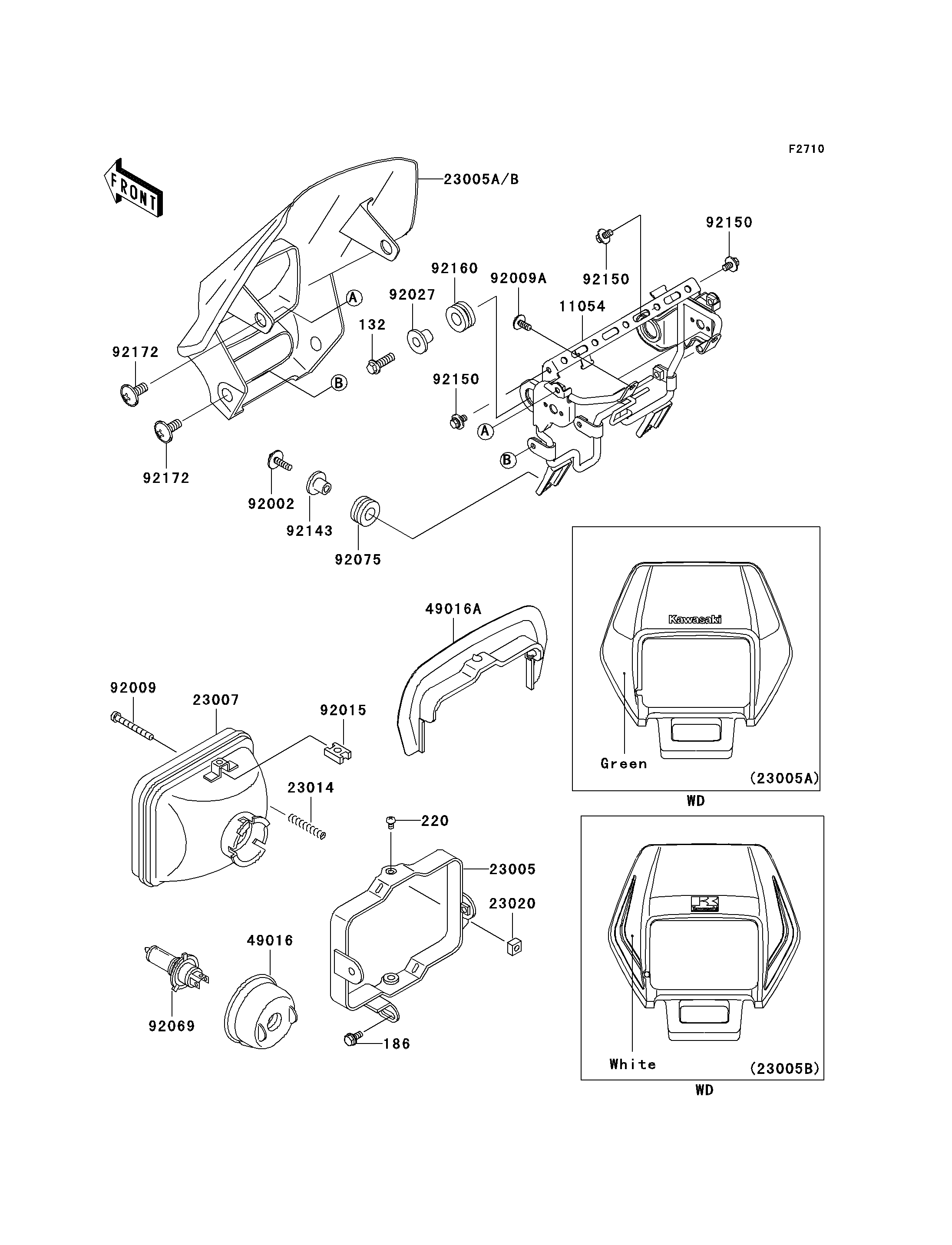

2006 KLX250S - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
132
186
220
11054
23005
23005A
23007
23014
23020
49016
49016A
92002
92009
92009A
92015
92027
92069
92075
92143
92150
92150
92150
92160
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,8X25 132 132G0825 2
BOLT-UPSET-WP,6X14 186 186B0614 1
SCREW-PAN-CROS,5X8 220 220B0508 2
BRACKET,HEAD LAMP 11054 11054-0054 1
BODY-COMP-HEAD LAMP 23005 23005-1052 1
BODY-COMP-HEAD LAMP,L.GREEN 23005A 23005-5052-290 1
LENS-COMP,HEAD LAMP 23007 23007-1372 1
SPRING,FOCUS ADJUSTING 23014 23014-005 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 1
COVER-SEAL,SOCKET 49016 49016-1037 1
COVER-SEAL,HEAD LAMP 49016A 49016-1160 1
BOLT,UPSET-WP,6X22 92002 92002-1262 2
SCREW,4X48 92009 92009-1065 1
SCREW,6X10,WHITE 92009A 92009-1286 2
NUT,5MM 92015 92015-1354 2
COLLAR,L=14 92027 92027-1134 2
BULB,12V 60/55W,H4 92069 92069-1002 1
DAMPER 92075 92075-209 2
COLLAR 92143 92143-1353 2
BOLT,6X12 92150 92150-1435 3
DAMPER 92160 92160-1007 2
SCREW,6X14 92172 92172-0004 4
