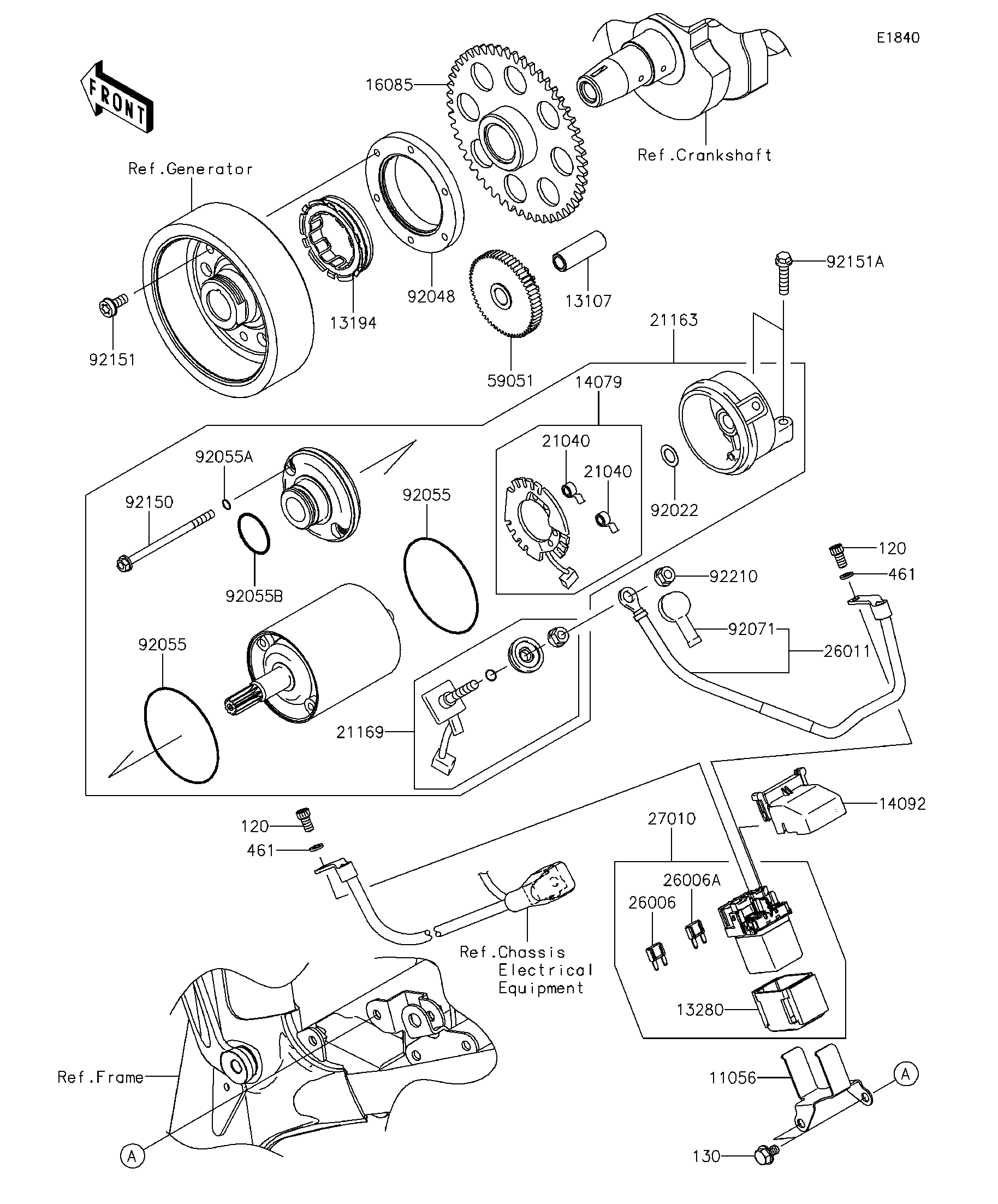

2016 Z800 ABS - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
11056
120
120
130
13107
13194
13280
14079
14092
16085
21040
21040
21163
21169
26006
26006A
26011
27010
461
461
59051
92022
92048
92055
92055
92055A
92055B
92071
92150
92151
92151A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-2049 1
BOLT-SOCKET,5X10 120 120CB0510 2
BOLT-FLANGED,6X10 130 130CC0610 2
SHAFT,IDLER GEAR 13107 13107-0744 1
CLUTCH-ONEWAY 13194 13194-1096 1
HOLDER,MAGNETIC SWITCH 13280 13280-0814 1
HOLDER-ASSY,STARTER 14079 14079-0009 1
COVER 14092 14092-0109 1
GEAR,CLUTCH ONEWAY 16085 16085-1303 1
SPRING-BRUSH 21040 21040-0001 2
STARTER-ELECTRIC 21163 21163-0729 1
TERMINAL,STARTER 21169 21169-1058 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 1
FUSE,MINI BLADE,30A,GREEN 26006A 26006-1080 1
WIRE-LEAD 26011 26011-0760 1
SWITCH 27010 27010-0770 1
WASHER-SPRING,5MM 461 461DB0500 2
GEAR-SPUR,IDLER 59051 59051-0714 1
WASHER 92022 92022-2200 1
RACE 92048 92048-0018 1
RING-O,62MM 92055 92055-1260 2
RING-O,4.5MM 92055A 92055-1261 2
RING-O,24.4X3.1 92055B 92055-1262 1
GROMMET 92071 92071-0713 1
BOLT 92150 92150-1237 2
BOLT,6X14 92151 92151-1335 6
BOLT,FLANGED-SMALL,6X25 92151A 92151-1930 2
NUT,6MM 92210 92210-0188 1
