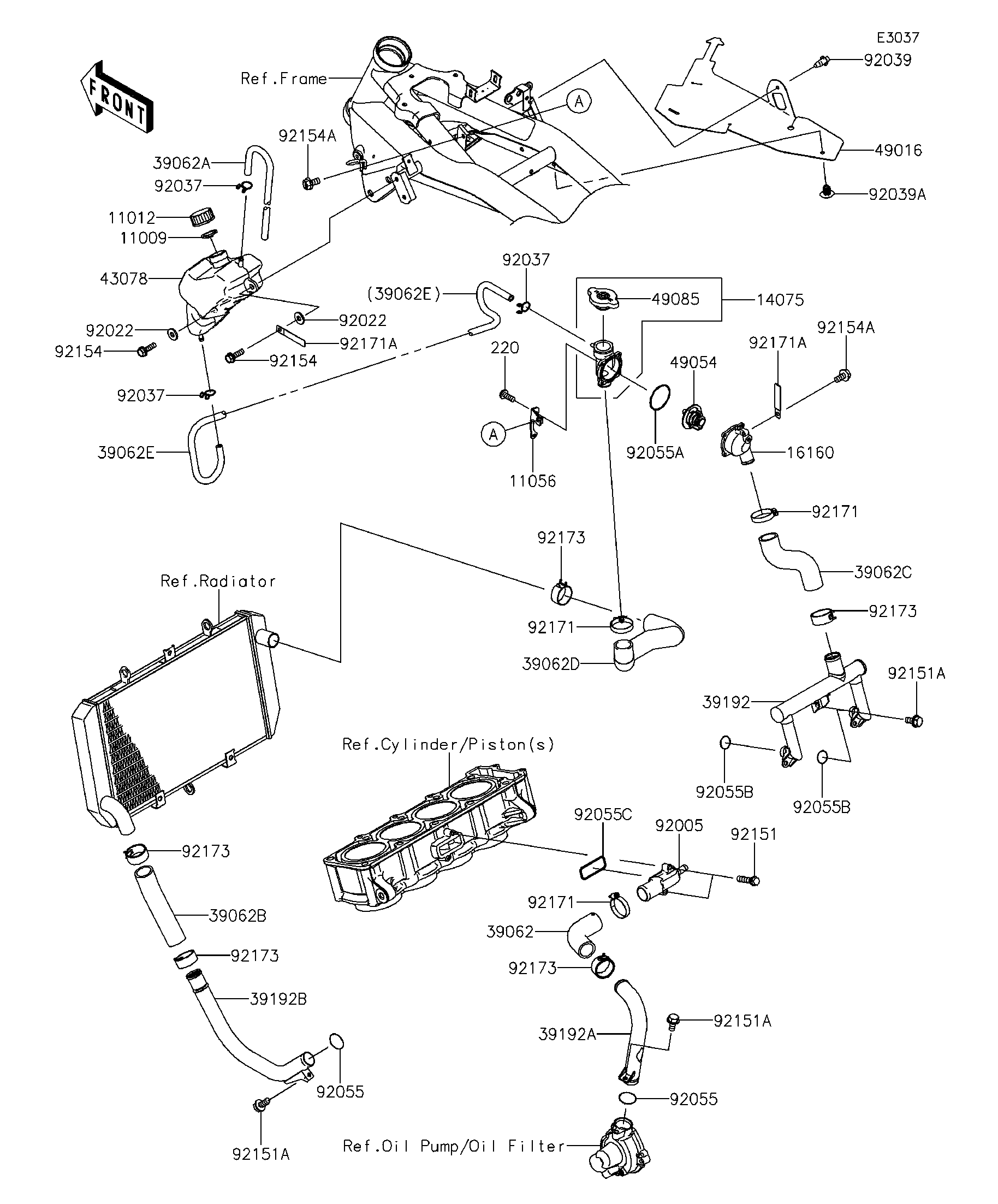

2016 Z800 ABS - Water Pipe

DOWNLOAD PDF
SELECT A NEW PART
11009
11012
11056
14075
16160
220
39062
39062A
39062B
39062C
39062D
39062E
39192
39192A
39192B
43078
49016
49054
49085
92005
92022
92022
92037
92037
92037
92039
92039A
92055
92055
92055A
92055B
92055B
92055C
92151
92151A
92151A
92151A
92154
92154
92154A
92154A
92171
92171
92171
92171A
92171A
92173
92173
92173
92173
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
BRACKET,THERMOSTAT 11056 11056-1800 1
CAP-ASSY 14075 14075-0001 1
BODY,LWR 16160 16160-0774 1
SCREW-PAN-CROS,5X14 220 220AA0514 4
HOSE-COOLING,PUMP-CYLINDER 39062 39062-0605 1
HOSE-COOLING,OVER FLOW 39062A 39062-0632 1
HOSE-COOLING,RAD.-PIPE 39062B 39062-0673 1
HOSE-COOLING,HEAD-THERMO 39062C 39062-0674 1
HOSE-COOLING,THERMO-RAD. 39062D 39062-0675 1
HOSE-COOLING,DRAIN 39062E 39062-1610 1
PIPE-WATER 39192 39192-0073 1
PIPE-WATER 39192A 39192-0566 1
PIPE-WATER 39192B 39192-0568 1
RESERVOIR 43078 43078-0559 1
COVER-SEAL 49016 49016-0600 1
THERMOSTAT 49054 49054-0004 1
CAP-ASSY-PRESSURE 49085 49085-1066 1
FITTING 92005 92005-0811 1
WASHER,6.5X16X2 92022 92022-1565 2
CLAMP,TUBE 92037 92037-147 3
RIVET 92039 92039-0709 1
RIVET 92039A 92039-0722 1
RING-O,20.8X2.4 92055 92055-0114 2
RING-O,53.5X2.6 92055A 92055-0831 1
RING-O,18.54X2.6 92055B 92055-1350 2
RING-O 92055C 92055-1402 1
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 2
BOLT,6X12 92151A 92151-1997 5
BOLT,FLANGED,6X20 92154 92154-0776 2
BOLT,FLANGED,6X12 92154A 92154-1050 2
CLAMP 92171 92171-0179 3
CLAMP,L=60 92171A 92171-0652 2
CLAMP 92173 92173-0072 5
