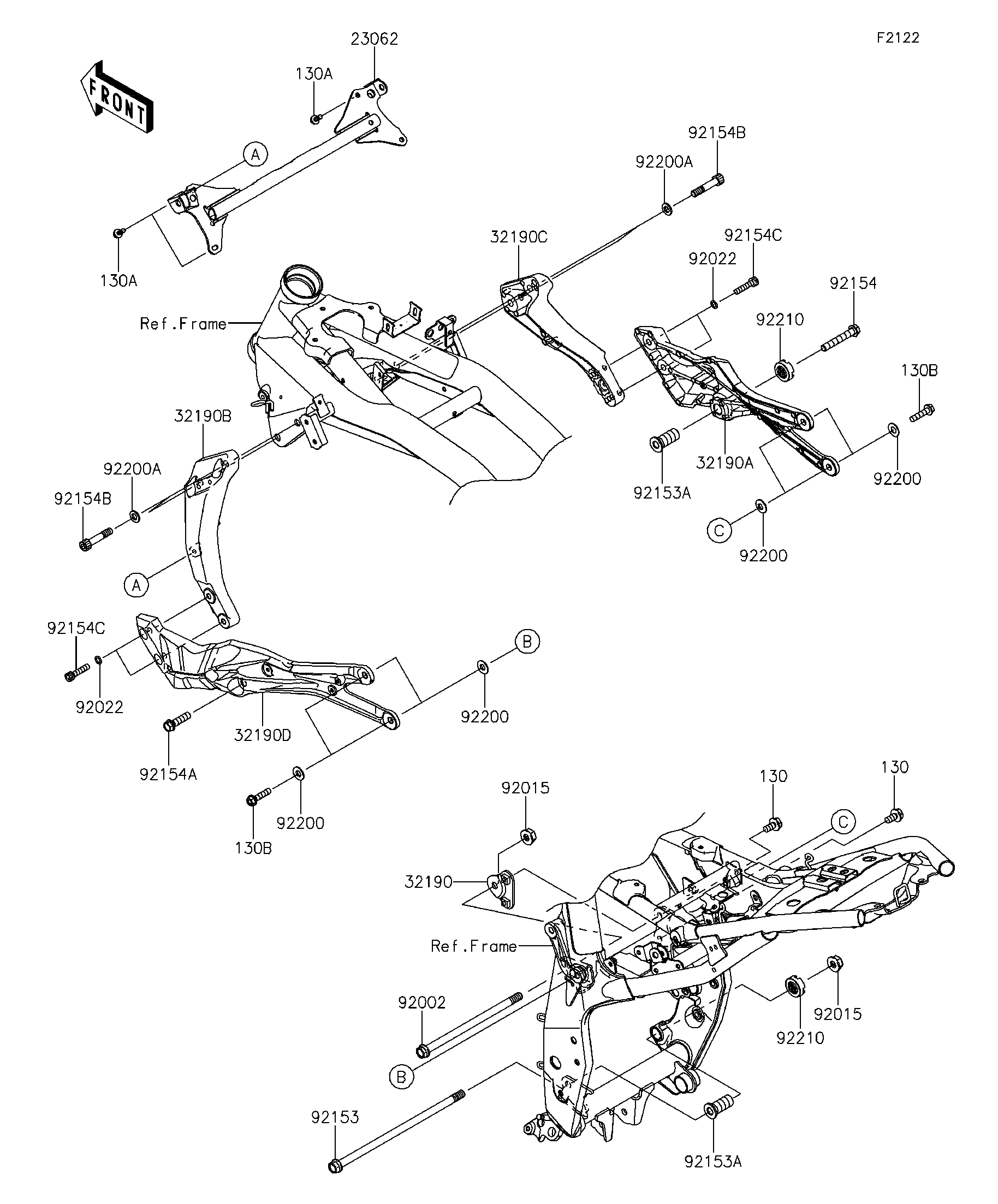

2016 Z800 ABS - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
130B
130B
23062
32190
32190A
32190B
32190C
32190D
92002
92015
92015
92022
92022
92153
92153A
92153A
92154
92154A
92154B
92154B
92154C
92154C
92200
92200
92200
92200
92200A
92200A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16 130 130BB0816 2
BOLT-FLANGED,6X18 130A 130CB0618 3
BOLT-FLANGED,8X35 130B 130CB0835 4
BRACKET-COMP,ENGINE 23062 23062-0776 1
BRACKET-ENGINE,RR,RH,UPP 32190 32190-0603 1
BRACKET-ENGINE,RR,RH,F.S.BLACK 32190A 32190-0620-18R 1
BRACKET-ENGINE,FR,LH,F.S.BLACK 32190B 32190-0635-18R 1
BRACKET-ENGINE,FR,RH,F.S.BLACK 32190C 32190-0636-18R 1
BRACKET-ENGINE,RR,LH,F.S.BLACK 32190D 32190-0683-18R 1
BOLT,10X183 92002 92002-1337 1
NUT,FLANGED,10MM 92015 92015-1180 2
WASHER,8.5X13X1 92022 92022-1028 4
BOLT,FLANGED,10X240 92153 92153-0559 1
BOLT,ENGINE MOUNT,18MM 92153A 92153-1098 2
BOLT,FLANGED,10X65 92154 92154-0312 1
BOLT,FLANGED,10X40 92154A 92154-0313 1
BOLT,SOCKET,10X50 92154B 92154-0729 4
BOLT,SOCKET,8X35 92154C 92154-1708 4
WASHER,10X22X3 92200 92200-0832 8
WASHER,10.5X19X2.3 92200A 92200-1042 4
NUT,18MM 92210 92210-1203 2
