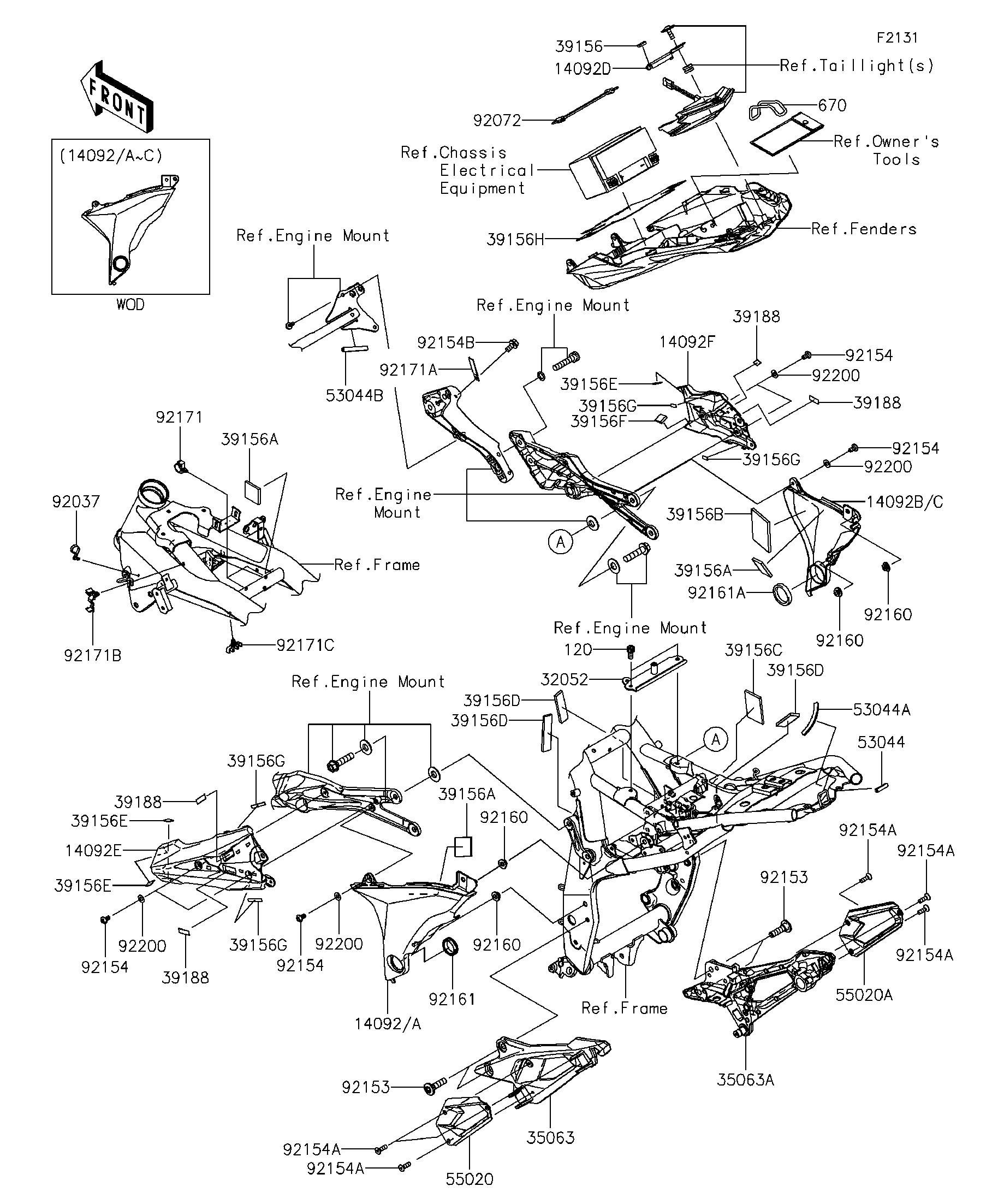

2016 Z800 ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
120
120
14092
14092
14092A
14092A
14092B
14092B
14092C
14092C
14092D
14092D
14092E
14092E
14092F
14092F
32052
32052
35063
35063
35063A
35063A
39156
39156
39156A
39156A
39156A
39156A
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156D
39156D
39156D
39156D
39156E
39156E
39156E
39156E
39156E
39156E
39156F
39156F
39156G
39156G
39156G
39156G
39156G
39156G
39156G
39156G
39156H
39156H
39188
39188
39188
39188
39188
39188
39188
39188
53044
53044
53044A
53044A
53044B
53044B
55020
55020
55020A
55020A
92037
92037
92072
92072
92153
92153
92153
92153
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154B
92154B
92160
92160
92160
92160
92160
92160
92160
92160
92161
92161
92161A
92161A
92171
92171
92171A
92171A
92171B
92171B
92171C
92171C
92200
92200
92200
92200
92200
92200
92200
92200
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X12 120 120CA0612 2
COVER,PIVOT,LH,F.EBONY 14092 14092-0962-45L 1
COVER,PIVOT,LH,M.S.BLACK 14092A 14092-0962-660 1
COVER,PIVOT,RH,F.EBONY 14092B 14092-0963-45L 1
COVER,PIVOT,RH,M.S.BLACK 14092C 14092-0963-660 1
COVER,CORD 14092D 14092-1055 1
COVER,SUB FRAME,LH,F.S.BLACK 14092E 14092-1093-18T 1
COVER,SUB FRAME,RH,F.S.BLACK 14092F 14092-1094-18T 1
BRACKET-TANK 32052 32052-0723 1
STAY,RR,LH,F.S.BLACK 35063 35063-0863-18R 1
STAY,RR,RH,F.S.BLACK 35063A 35063-0864-18R 1
PAD 39156 39156-0284 1
PAD 39156A 39156-0292 3
PAD,60X80X5 39156B 39156-0951 1
PAD,40X80X5 39156C 39156-0952 1
PAD,20X80X5 39156D 39156-0953 3
PAD,15X15X1 39156E 39156-0960 3
PAD,18X18X5 39156F 39156-0961 1
PAD,6X35 39156G 39156-0967 4
PAD,CORD COVER 39156H 39156-1949 1
TAPE,10X30X0.5 39188 39188-0558 4
TRIM,L=30 53044 53044-0001 1
TRIM 53044A 53044-0018 1
TRIM,L=60 53044B 53044-1249 1
GUARD,HEEL,LH 55020 55020-0842 1
GUARD,HEEL,RH 55020A 55020-0843 1
CLAMP,SPEED,L=58 92037 92037-1163 1
BAND,BATTERY 92072 92072-0741 1
BOLT,SOCKET,8X30 92153 92153-1630 4
BOLT,SOCKET,5X10 92154 92154-0215 6
BOLT,SOCKET,5X16 92154A 92154-1014 6
BOLT,FLANGED,6X12 92154B 92154-1050 1
DAMPER 92160 92160-1613 4
DAMPER 92161 92161-0147 1
DAMPER 92161A 92161-0148 1
CLAMP,BRAKE HOSE 92171 92171-0316 2
CLAMP,L=60 92171A 92171-0652 1
CLAMP,BRAKE HOSE 92171B 92171-0789 1
CLAMP 92171C 92171-1213 1
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 6
O RING,75MM 670 670B5075 1
