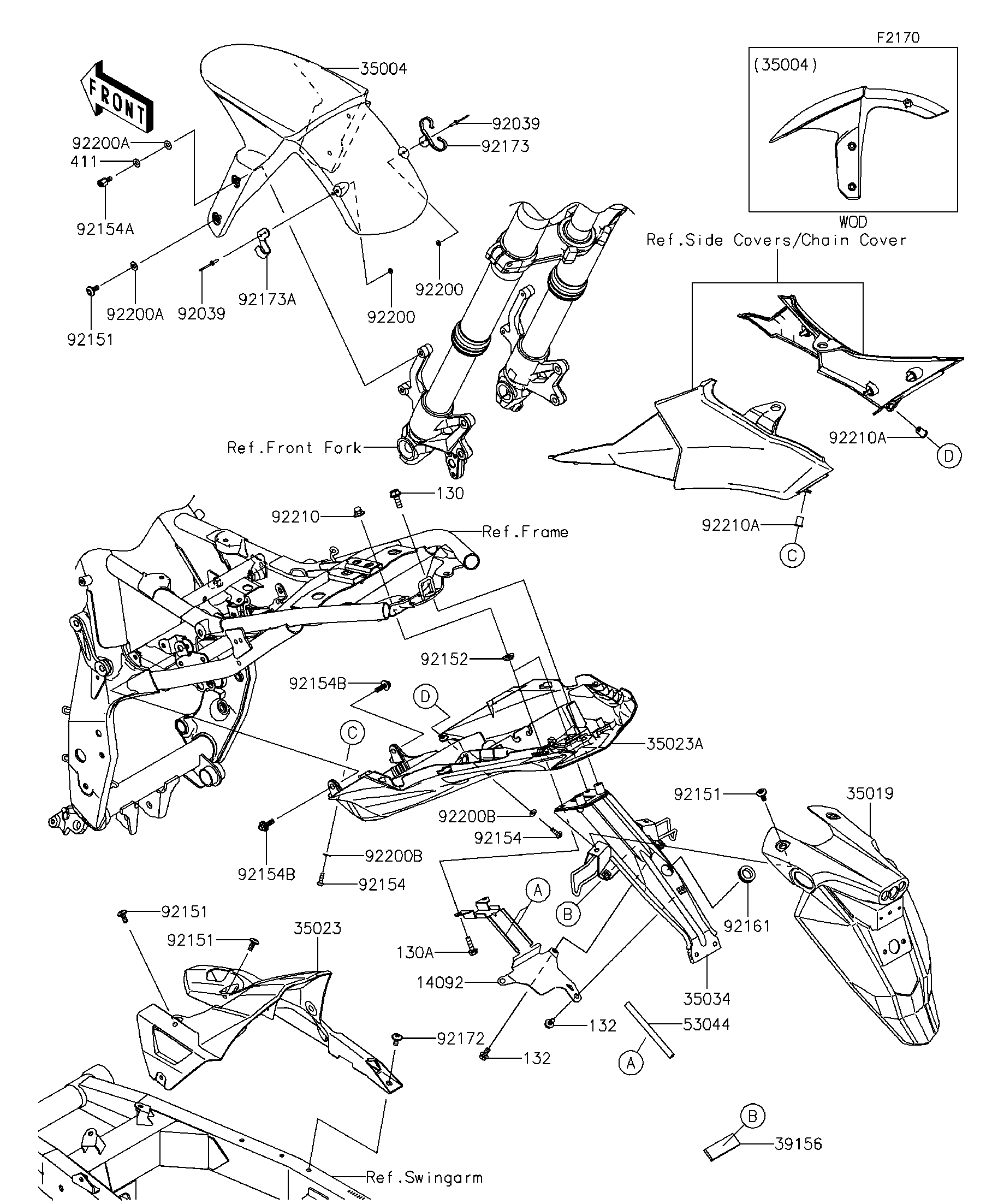

2016 Z800 ABS - Fenders

DOWNLOAD PDF
SELECT A NEW PART
130
130A
132
132
14092
35004
35019
35023
35023A
35034
39156
411
53044
92039
92039
92151
92151
92151
92151
92152
92154
92154
92154A
92154B
92154B
92161
92172
92173
92173A
92200
92200
92200A
92200A
92200B
92200B
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X18 130 130BA0618 2
BOLT-FLANGED,6X22 130A 130BA0622 2
BOLT-FLANGED-SMALL,6X12 132 132BA0612 3
COVER,HARNESS 14092 14092-0996 1
FENDER-FRONT,M.S.BLACK 35004 35004-0322-660 1
FLAP,RR 35019 35019-0556 1
FENDER-REAR,INNER 35023 35023-0343 1
FENDER-REAR 35023A 35023-0375 1
REINFORCE 35034 35034-0580 1
PAD,20X60X5 39156 39156-0950 1
WASHER-PLAIN,6MM 411 411AB0600 2
TRIM 53044 53044-0564 2
RIVET 92039 92039-1231 4
BOLT,SOCKET,6X14 92151 92151-1654 6
COLLAR,6MM 92152 92152-1705 2
BOLT,SOCKET,5X16 92154 92154-0026 2
BOLT,6MM 92154A 92154-0746 2
BOLT,FLANGED,6X20 92154B 92154-1268 2
DAMPER 92161 92161-0765 1
SCREW,6X14 92172 92172-0004 1
CLAMP,FR FENDER,RH 92173 92173-0937 1
CLAMP,FR FENDER,LH 92173A 92173-0972 1
WASHER,3.5X8X1 92200 92200-1251 4
WASHER,6.5X14X1 92200A 92200-1388 4
WASHER,NYLON,5.3X11.5X0.5 92200B 92200-1480 2
NUT,CAP,6MM 92210 92210-0170 2
NUT,WELL,5MM 92210A 92210-0498 2
