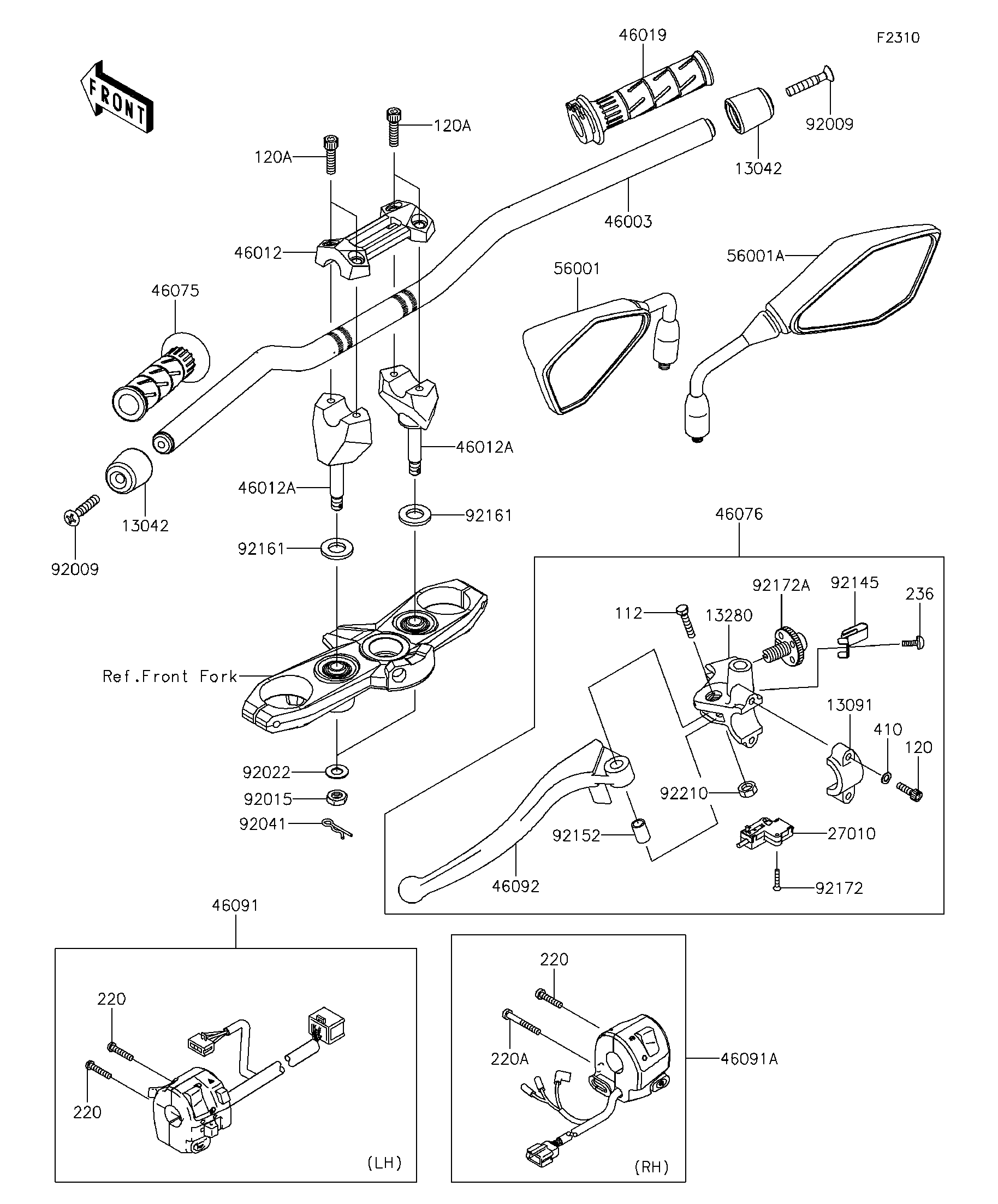

2016 Z800 ABS - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
112
120
120A
120A
13042
13042
13091
13280
220
220
220
220A
236
27010
410
46003
46012
46012A
46012A
46019
46075
46076
46091
46091A
46092
56001
56001A
92009
92009
92015
92022
92041
92145
92152
92161
92161
92172
92172A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X30 112 112BB0630 1
BOLT-SOCKET,6X20 120 120CB0620 2
BOLT-SOCKET,8X30 120A 120CC0830 4
WEIGHT,HANDLE 13042 13042-1005 2
HOLDER,CLUTCH LEVER 13091 13091-1624 1
HOLDER,CLUTCH LEVER 13280 13280-0017 1
SCREW-PAN-CROS,5X25 220 220AB0525 3
SCREW-PAN-CROS,5X40 220A 220AB0540 1
SCREW-PAN-WSP-CROS,4X10 236 236AB0410 1
SWITCH,CLUTCH 27010 27010-0729 1
WASHER-PLAIN-SMALL,6MM 410 410AB0600 2
HANDLE,F.S.BLACK 46003 46003-0583-18R 1
HOLDER-HANDLE,UPP 46012 46012-0314 1
HOLDER-HANDLE,LWR 46012A 46012-0315 2
GRIP-ASSY,THROTTLE 46019 46019-0060 1
GRIP,HANDLE,LH 46075 46075-0564 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0102 1
HOUSING-ASSY-CONTROL,LH 46091 46091-0248 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-0257 1
LEVER-GRIP,CLUTCH 46092 46092-0003 1
MIRROR-ASSY,LH 56001 56001-0299 1
MIRROR-ASSY,RH 56001A 56001-0300 1
SCREW,8X45 92009 92009-1257 2
NUT,LOCK,10MM 92015 92015-1962 2
WASHER,10.2X28X2 92022 92022-1088 2
COTTER,8MM 92041 92041-1060 2
SPRING 92145 92145-1286 1
COLLAR 92152 92152-0103 1
DAMPER 92161 92161-0037 2
SCREW,3X16 92172 92172-0183 2
SCREW,ADJUST NUT 92172A 92172-1060 1
NUT,LOCK,6MM 92210 92210-0006 1
