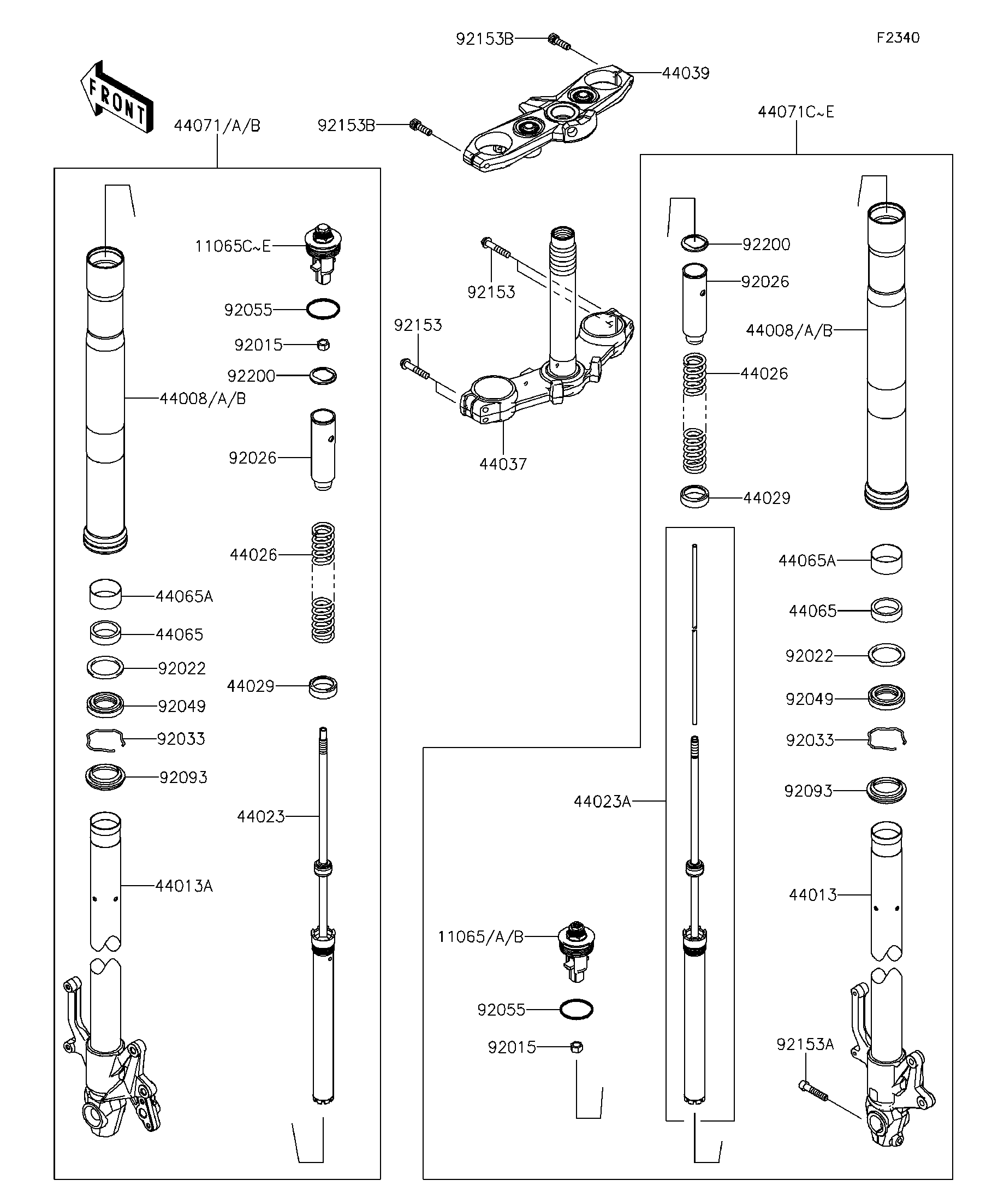

2016 Z800 ABS - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
11065A
11065A
11065B
11065B
11065C
11065C
11065D
11065D
11065E
11065E
44008
44008
44008
44008
44008A
44008A
44008A
44008A
44008B
44008B
44008B
44008B
44013
44013
44013A
44013A
44023
44023
44023A
44023A
44026
44026
44026
44026
44029
44029
44029
44029
44037
44037
44039
44039
44065
44065
44065
44065
44065A
44065A
44065A
44065A
44071
44071
44071A
44071A
44071B
44071B
44071C
44071C
44071D
44071D
44071E
44071E
92015
92015
92015
92015
92022
92022
92022
92022
92026
92026
92026
92026
92033
92033
92033
92033
92049
92049
92049
92049
92055
92055
92055
92055
92093
92093
92093
92093
92153
92153
92153
92153
92153A
92153A
92153B
92153B
92153B
92153B
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,COMP.,RH,P.RED 11065 11065-0781-10B 1 CN
CAP,COMP,RH,G.B.GREEN 11065A 11065-0781-50Y 1
CAP,COMP,RH,D.RED 11065B 11065-0781-56N 1
CAP,COMP.,LH,P.RED 11065C 11065-0782-10B 1 CN
CAP,COMP,LH,G.B.GREEN 11065D 11065-0782-50Y 1
CAP,COMP,LH,D.RED 11065E 11065-0782-56N 1
PIPE-FORK OUTER,R.GOLD 44008 44008-0062-484 2 CN
PIPE-FORK OUTER,A.BLACK 44008A 44008-0062-499 2
PIPE-FORK OUTER,D.RED 44008B 44008-0062-56N 2
PIPE-FORK INNER,RH,F.S.BLACK 44013 44013-0196-18R 1
PIPE-FORK INNER,LH,F.S.BLACK 44013A 44013-0236-18R 1
CYLINDER-SET-FORK,LH 44023 44023-0112 1
CYLINDER-SET-FORK,RH 44023A 44023-0124 1
SPRING-FRONT FORK 44026 44026-0193 2
SEAT-FORK SPRING 44029 44029-0015 2
HOLDER-FORK UNDER,F.M.GRAY 44037 44037-0066-26M 1
HOLDER-FORK UPPER,F.M.GRAY 44039 44039-0130-26M 1
BUSHING-FRONT FORK 44065 44065-0042 2
BUSHING-FRONT FORK,INNER PIPE 44065A 44065-1114 2
DAMPER-ASSY,FORK,LH,BLACK 44071 44071-1095-56Q 1
DAMPER-ASSY,FORK,LH,D.RED 44071A 44071-1095-56R 1
DAMPER-ASSY,FORK,LH,GOLD 44071B 44071-1095-58E 1 CN
DAMPER-ASSY,FORK,RH,BLACK 44071C 44071-1104-56Q 1
DAMPER-ASSY,FORK,RH,D.RED 44071D 44071-1104-56R 1
DAMPER-ASSY,FORK,RH,GOLD 44071E 44071-1104-58E 1 CN
NUT 92015 92015-1795 2
WASHER,FORK OUTER TUBE 92022 92022-1298 2
SPACER,FORK 92026 92026-0045 2
RING-SNAP 92033 92033-1036 2
SEAL-OIL 92049 92049-0073 2
RING-O,FORK,AIR TUBE 92055 92055-1333 2
SEAL,FORK OUTER TUBE 92093 92093-1472 2
BOLT,FLANGED,8X40 92153 92153-0484 4
BOLT,SOCKET,8X40 92153A 92153-0506 1
BOLT,SOCKET,8X25 92153B 92153-1625 2
WASHER 92200 92200-0085 2
