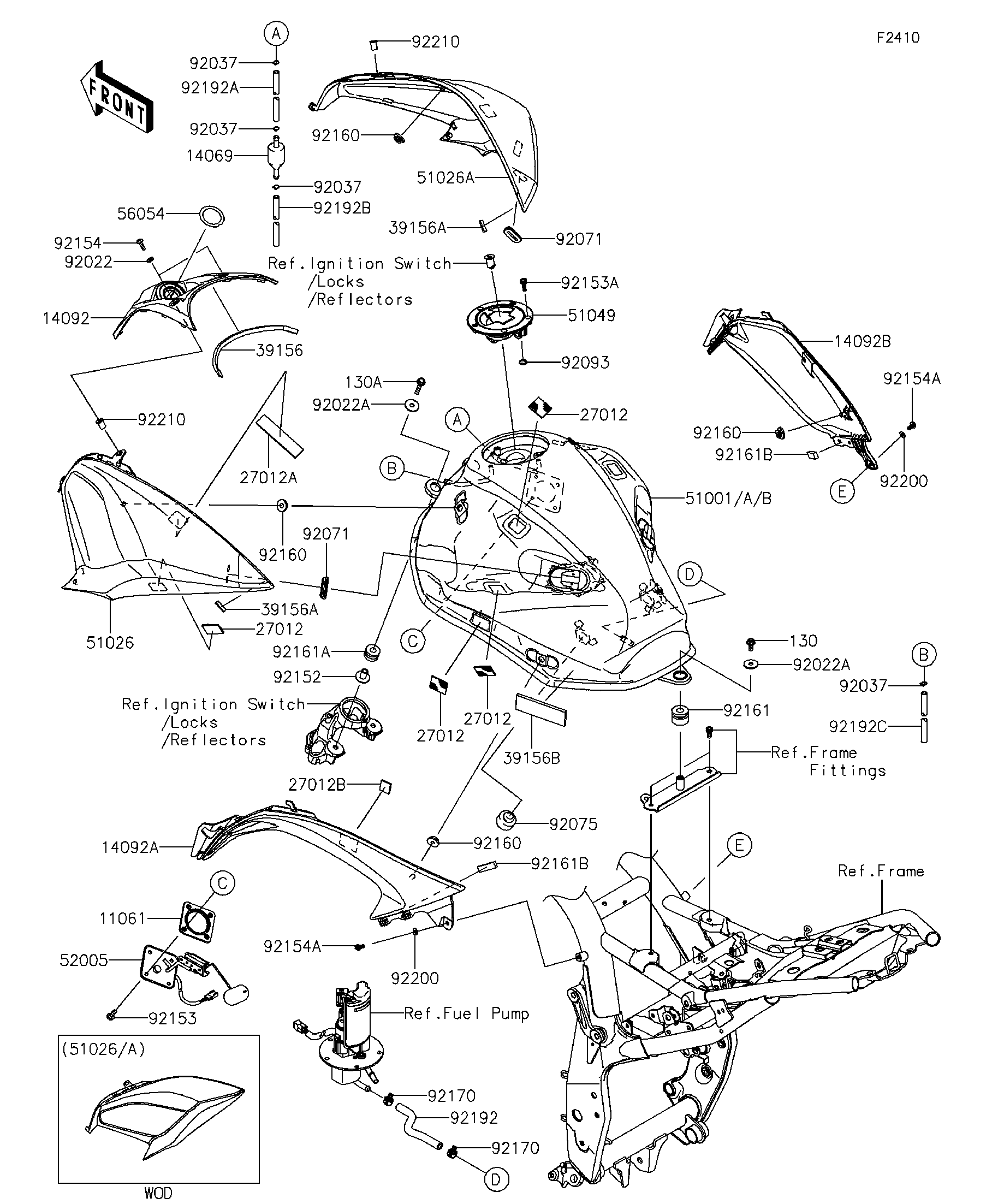

2016 Z800 ABS - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
14069
14069
14092
14092
14092A
14092A
14092B
14092B
27012
27012
27012
27012
27012
27012
27012
27012
27012A
27012A
27012B
27012B
39156
39156
39156A
39156A
39156A
39156A
39156B
39156B
51001
51001
51001A
51001A
51001B
51001B
51026
51026
51026A
51026A
51049
51049
52005
52005
56054
56054
92022
92022
92022A
92022A
92022A
92022A
92037
92037
92037
92037
92037
92037
92037
92037
92071
92071
92071
92071
92075
92075
92093
92093
92152
92152
92153
92153
92153A
92153A
92154
92154
92154A
92154A
92154A
92154A
92160
92160
92160
92160
92160
92160
92160
92160
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
92170
92170
92170
92170
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
130
130
130A
130A
92200
92200
92200
92200
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL GAUGE 11061 11061-0797 1
BREATHER,TANK 14069 14069-0008 1
COVER,IGNITION SWITCH 14092 14092-1090 1
COVER,KNEE GRIP,LH 14092A 14092-1091 1
COVER,KNEE GRIP,RH 14092B 14092-1092 1
HOOK 27012 27012-0170 8
HOOK,DUAL LOCK,20X90 27012A 27012-0746 2
HOOK,20X20X3.0 27012B 27012-0772 2
PAD,IGNITION SWITCH 39156 39156-0995 1
PAD,5X20X3 39156A 39156-0999 2
PAD,93X30X5 39156B 39156-1858 2
TANK-COMP-FUEL,F.EBONY 51001 51001-0782-45L 1
TANK-COMP-FUEL,C.C.RED 51001A 51001-0782-53R 1
TANK-COMP-FUEL,C.P.BLUE 51001B 51001-0782-723 1 CN
COVER TANK,LH,M.S.BLACK 51026 51026-0053-660 1
COVER TANK,RH,M.S.BLACK 51026A 51026-0054-660 1
CAP-TANK,FUEL 51049 51049-0714 1
GAUGE,FUEL 52005 52005-0721 1
MARK,IG. SWITCH 56054 56054-1822 1
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 2
WASHER,7X24X1.6 92022A 92022-228 3
CLAMP,TUBE 92037 92037-010 4
GROMMET 92071 92071-1187 2
DAMPER 92075 92075-015 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
COLLAR,6.5X10X17.6 92152 92152-1655 2
BOLT,FLANGED,5X12 92153 92153-1421 4
BOLT,SOCKET,5X16 92153A 92153-1616 3
BOLT,SOCKET,5X16 92154 92154-0026 2
BOLT,SOCKET,5X10 92154A 92154-0215 2
DAMPER 92160 92160-1613 4
DAMPER,12X28X21 92161 92161-1468 1
DAMPER,10X24X15 92161A 92161-1482 2
DAMPER,10X35X6 92161B 92161-1539 2
CLAMP 92170 92170-1492 2
TUBE,FUEL 92192 92192-0593 1
TUBE,BREATHER 92192A 92192-0798 1
TUBE,6X9X930 92192B 92192-1311 1
TUBE,6X9X1095 92192C 92192-1312 1
BOLT-FLANGED,6X14 130 130BA0614 1
BOLT-FLANGED,6X30 130A 130BA0630 2
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 2
NUT,WELL,5MM 92210 92210-0498 2
