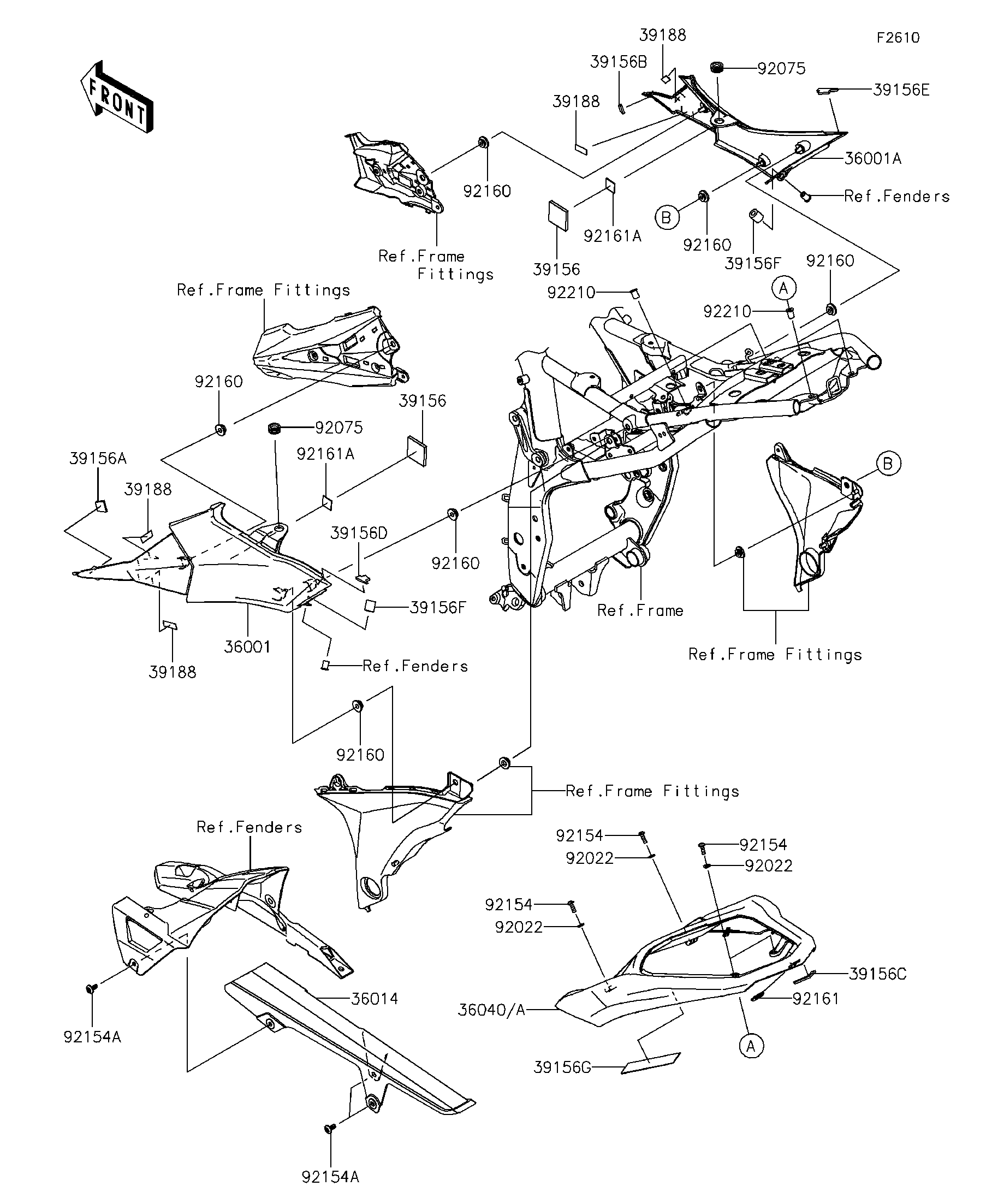

2016 Z800 ABS - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36001
36001A
36014
36040
36040A
39156
39156
39156A
39156B
39156C
39156D
39156E
39156F
39156F
39156G
39188
39188
39188
39188
92022
92022
92022
92075
92075
92154
92154
92154
92154A
92154A
92160
92160
92160
92160
92160
92160
92161
92161A
92161A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH 36001 36001-0596 1
COVER-SIDE,RH 36001A 36001-0597 1
CASE-CHAIN 36014 36014-0025 1
COVER-TAIL,M.S.BLACK 36040 36040-0139-660 1
COVER-TAIL,C.P.BLUE 36040A 36040-0139-723 1 CN
PAD 39156 39156-0292 2
PAD,SIDE COVER,LH,R END 39156A 39156-0970 1
PAD,SIDE COVER,RH,R END 39156B 39156-0971 1
PAD,TAIL COVER,END 39156C 39156-0972 1
PAD,SIDE COVER,LH,EDGE 39156D 39156-1723 1
PAD,SIDE COVER,RH,EDGE 39156E 39156-1724 1
PAD,8X16X17 39156F 39156-1725 2
PAD,35X110 39156G 39156-1764 2
TAPE,10X30X0.5 39188 39188-0559 4
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 4
DAMPER 92075 92075-1634 2
BOLT,SOCKET,5X16 92154 92154-0026 4
BOLT,SOCKET,6X14 92154A 92154-0745 3
DAMPER 92160 92160-1613 6
DAMPER,12X23 92161 92161-1367 1
DAMPER,20X20,T1.0 92161A 92161-1431 2
NUT,WELL,5MM 92210 92210-0498 4
