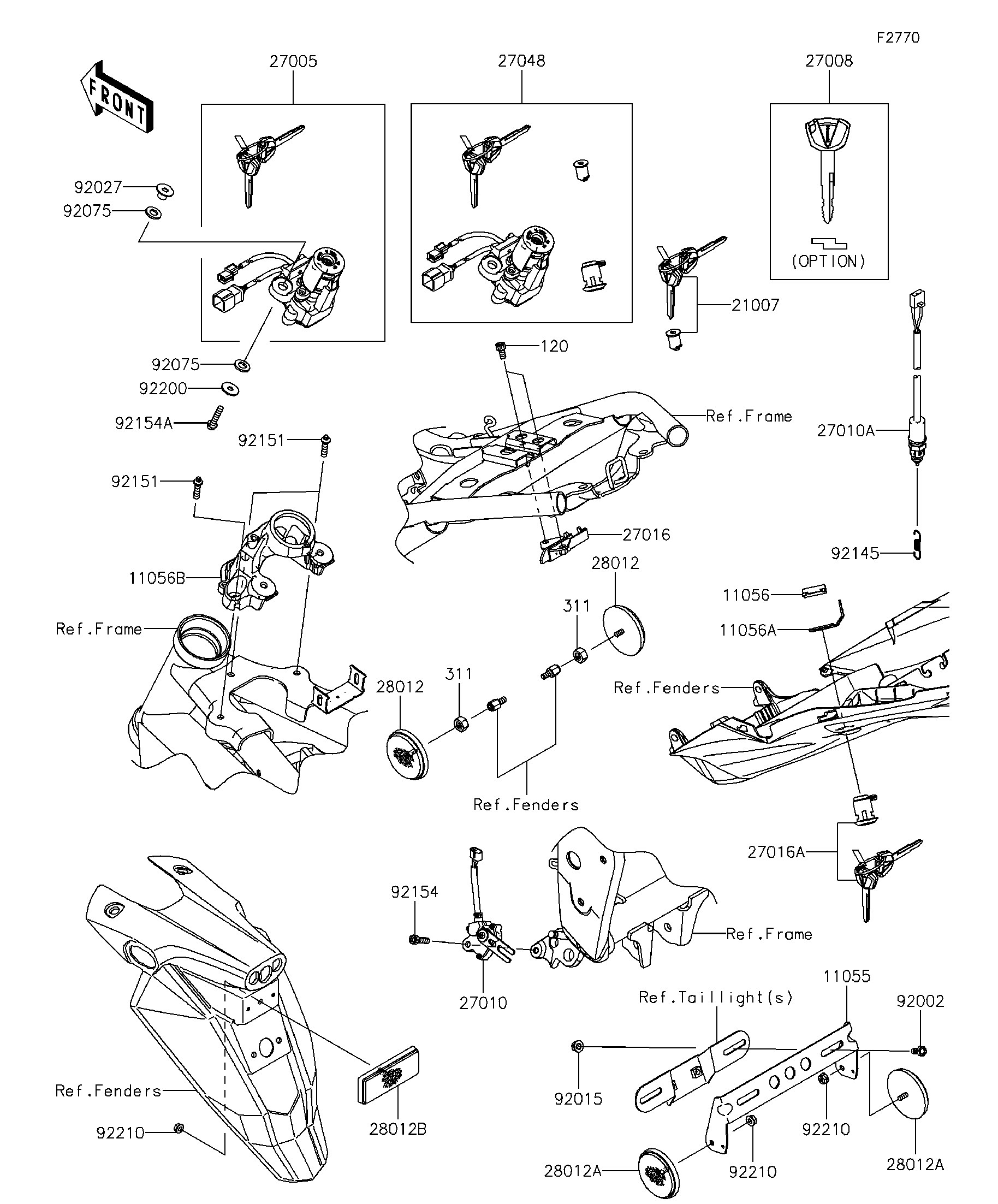

2016 Z800 ABS - Ignition Switch/Locks/Reflectors
11055
11056
11056A
11056B
120
21007
27005
27008
27010
27010A
27016
27016A
27048
28012
28012
28012A
28012A
28012B
311
311
92002
92015
92027
92075
92075
92145
92151
92151
92154
92154A
92200
92210
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,REFLECTOR | 11055 | 11055-1092 | 1 | ||
BRACKET,CLASP | 11056 | 11056-0238 | 1 | ||
BRACKET,SEAT LOCK | 11056A | 11056-2119 | 1 | ||
BRACKET | 11056B | 11056-2394 | 1 | ||
BOLT-SOCKET,6X12 | 120 | 120CB0612 | 2 | ||
ROTOR,LOCK,TANK CAP | 21007 | 21007-5077 | 1 | ||
SWITCH-ASSY-IGNITION | 27005 | 27005-0613 | 1 | ||
KEY-LOCK,BLANK | 27008 | 27008-0596 | 1 | (OPTION) | |
SWITCH,SIDE STAND | 27010 | 27010-0722 | 1 | ||
SWITCH,REAR BRAKE | 27010A | 27010-0723 | 1 | ||
LOCK-ASSY,SEAT STRIKER | 27016 | 27016-0008 | 1 | ||
LOCK-ASSY,SEAT | 27016A | 27016-5386 | 1 | ||
SWITCH-ASSY | 27048 | 27048-5095 | 1 | ||
REFLECTOR-REFLEX,FR,SIDE | 28012 | 28012-0001 | 2 | ||
REFLECTOR-REFLEX | 28012A | 28012-0002 | 2 | ||
REFLECTOR-REFLEX | 28012B | 28012-1077 | 1 | ||
NUT-HEX,5MM | 311 | 311AB0500 | 2 | ||
BOLT,6X12 | 92002 | 92002-1132 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 2 | ||
COLLAR,L=9.6 | 92027 | 92027-1045 | 2 | ||
DAMPER | 92075 | 92075-1564 | 4 | ||
SPRING,REAR BRAKE | 92145 | 92145-0946 | 1 | ||
BOLT,TORX,6X22 | 92151 | 92151-1946 | 3 | ||
BOLT,SOCKET,6X22 | 92154 | 92154-0031 | 1 | ||
BOLT,FLANGED,6X25 | 92154A | 92154-1212 | 2 | ||
WASHER,6X20X1.6 | 92200 | 92200-0780 | 2 | ||
NUT,FLANGED,5MM | 92210 | 92210-0007 | 3 |
BRACKET,REFLECTOR | |
REF # | 11055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,CLASP | |
REF # | 11056 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,SEAT LOCK | |
REF # | 11056A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11056B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-SOCKET,6X12 | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ROTOR,LOCK,TANK CAP | |
REF # | 21007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH-ASSY-IGNITION | |
REF # | 27005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KEY-LOCK,BLANK | |
REF # | 27008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SWITCH,SIDE STAND | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,REAR BRAKE | |
REF # | 27010A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LOCK-ASSY,SEAT STRIKER | |
REF # | 27016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LOCK-ASSY,SEAT | |
REF # | 27016A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH-ASSY | |
REF # | 27048 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
REFLECTOR-REFLEX,FR,SIDE | |
REF # | 28012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
REFLECTOR-REFLEX | |
REF # | 28012A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
REFLECTOR-REFLEX | |
REF # | 28012B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT-HEX,5MM | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,L=9.6 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING,REAR BRAKE | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,TORX,6X22 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X22 | |
REF # | 92154 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X25 | |
REF # | 92154A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,6X20X1.6 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,5MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
