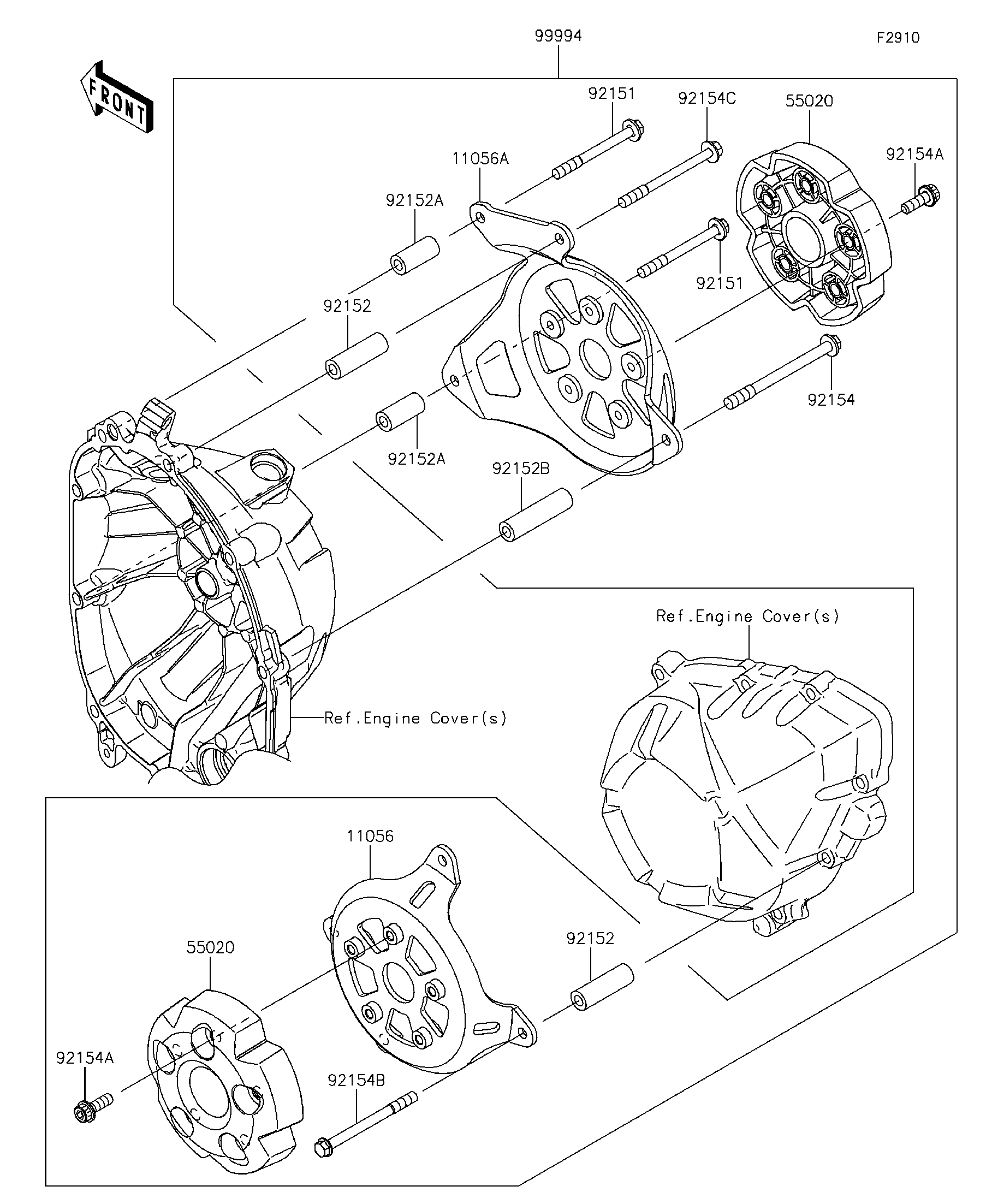

2016 Z800 ABS - Accessory(Engine Guard)
11056
11056A
55020
55020
92151
92151
92152
92152
92152A
92152A
92152B
92154
92154A
92154A
92154B
92154C
99994
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,ENGINE GUARD,LH | 11056 | 11056-2358 | 1 | ||
| BRACKET,ENGINE GUARD,RH | 11056A | 11056-2359 | 1 | ||
| GUARD,ENGINE | 55020 | 55020-0856 | 2 | ||
| BOLT,6X60 | 92151 | 92151-1791 | 2 | ||
| COLLAR,6.5X12X37.9 | 92152 | 92152-1639 | 5 | ||
| COLLAR,6.5X12X26.8 | 92152A | 92152-1640 | 2 | ||
| COLLAR,6.5X12X46.8 | 92152B | 92152-1641 | 1 | ||
| BOLT,FLANGED,6X80 | 92154 | 92154-0099 | 1 | ||
| BOLT,SOCKET,6X18 | 92154A | 92154-1036 | 10 | ||
| BOLT,FLANGED,6X70 | 92154B | 92154-1037 | 4 | ||
| BOLT,FLANGED,6X70 | 92154C | 92154-1038 | 1 | ||
| KIT-ACCESSORY,ENGINE GUARD | 99994 | 99994-0334 | 1 |
| BRACKET,ENGINE GUARD,LH | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,ENGINE GUARD,RH | |
| REF # | 11056A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,ENGINE | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X60 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X12X37.9 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X12X26.8 | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X12X46.8 | |
| REF # | 92152B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X80 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X18 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X70 | |
| REF # | 92154B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X70 | |
| REF # | 92154C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KIT-ACCESSORY,ENGINE GUARD | |
| REF # | 99994 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
