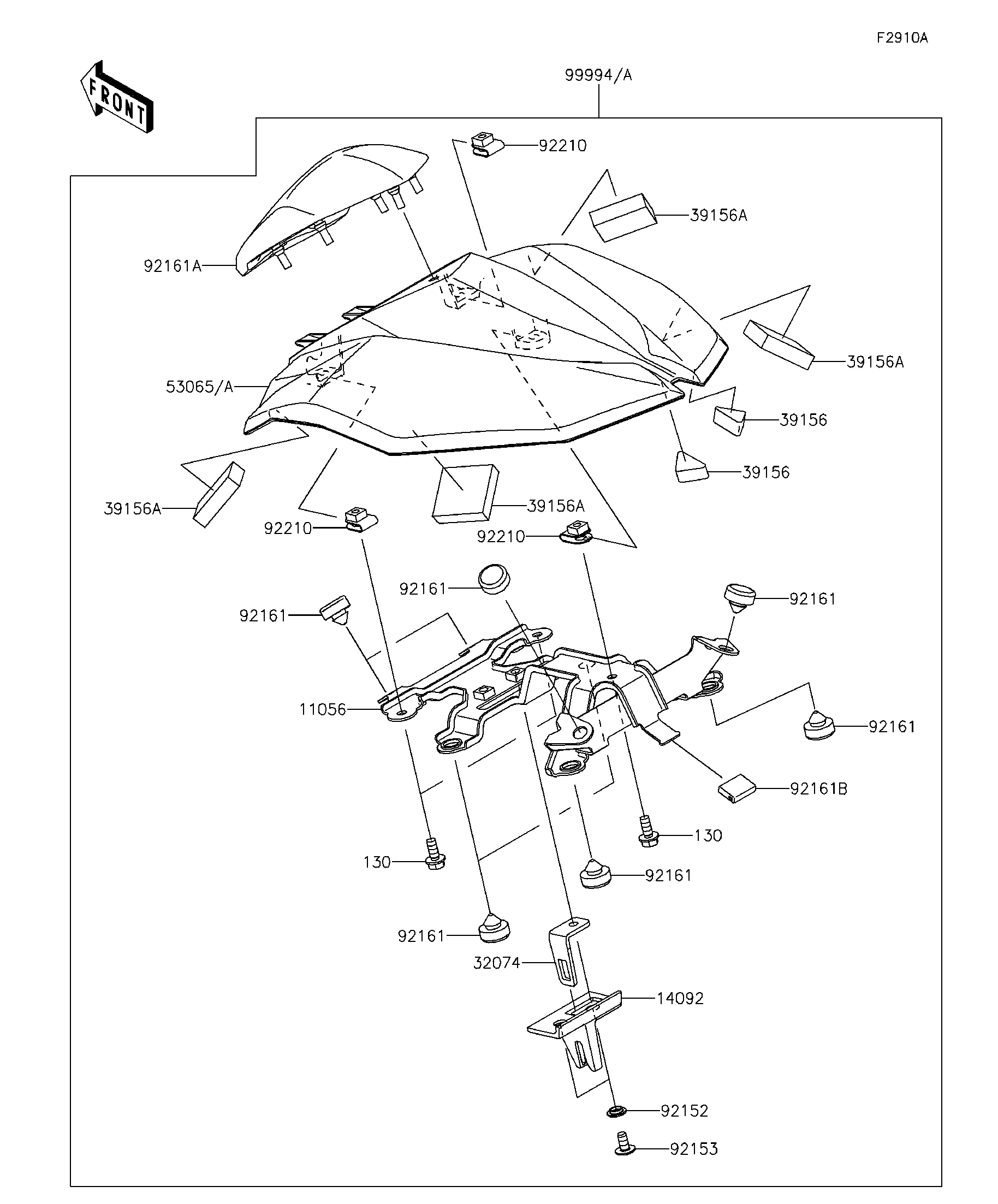

2016 Z800 ABS - Accessory(Single Seat Cover)
11056
130
130
14092
32074
39156
39156
39156A
39156A
39156A
39156A
53065
53065A
92152
92153
92161
92161
92161
92161
92161
92161
92161A
92161B
92210
92210
92210
99994
99994A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11056 | 11056-2690 | 1 | ||
| BOLT-FLANGED,6X14 | 130 | 130BA0614 | 3 | ||
| COVER | 14092 | 14092-0248 | 1 | ||
| BRACKET-LOCK | 32074 | 32074-0017 | 1 | ||
| PAD | 39156 | 39156-0099 | 2 | ||
| PAD,38X38X10 | 39156A | 39156-0894 | 4 | ||
| COVER SEAT,M.S.BLACK | 53065 | 53065-0023-660 | 1 | ||
| COVER SEAT,C.P.BLUE | 53065A | 53065-0023-723 | 1 | CN | |
| COLLAR | 92152 | 92152-0250 | 2 | ||
| BOLT,SOCKET,6X12 | 92153 | 92153-1617 | 2 | ||
| DAMPER,10X20X8 | 92161 | 92161-0855 | 8 | ||
| DAMPER,CUSHION | 92161A | 92161-1460 | 1 | ||
| DAMPER | 92161B | 92161-1472 | 1 | ||
| NUT,6MM | 92210 | 92210-0277 | 3 | ||
| KIT,SINGLE SEAT,M.S.BLACK | 99994 | 99994-0410-660 | 1 | ||
| KIT,SINGLE SEAT,C.P.BLUE | 99994A | 99994-0410-723 | 1 | CN |
| BRACKET | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COVER | |
| REF # | 14092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-LOCK | |
| REF # | 32074 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PAD,38X38X10 | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,M.S.BLACK | |
| REF # | 53065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,C.P.BLUE | |
| REF # | 53065A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X12 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X20X8 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| DAMPER,CUSHION | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| KIT,SINGLE SEAT,M.S.BLACK | |
| REF # | 99994 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KIT,SINGLE SEAT,C.P.BLUE | |
| REF # | 99994A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
