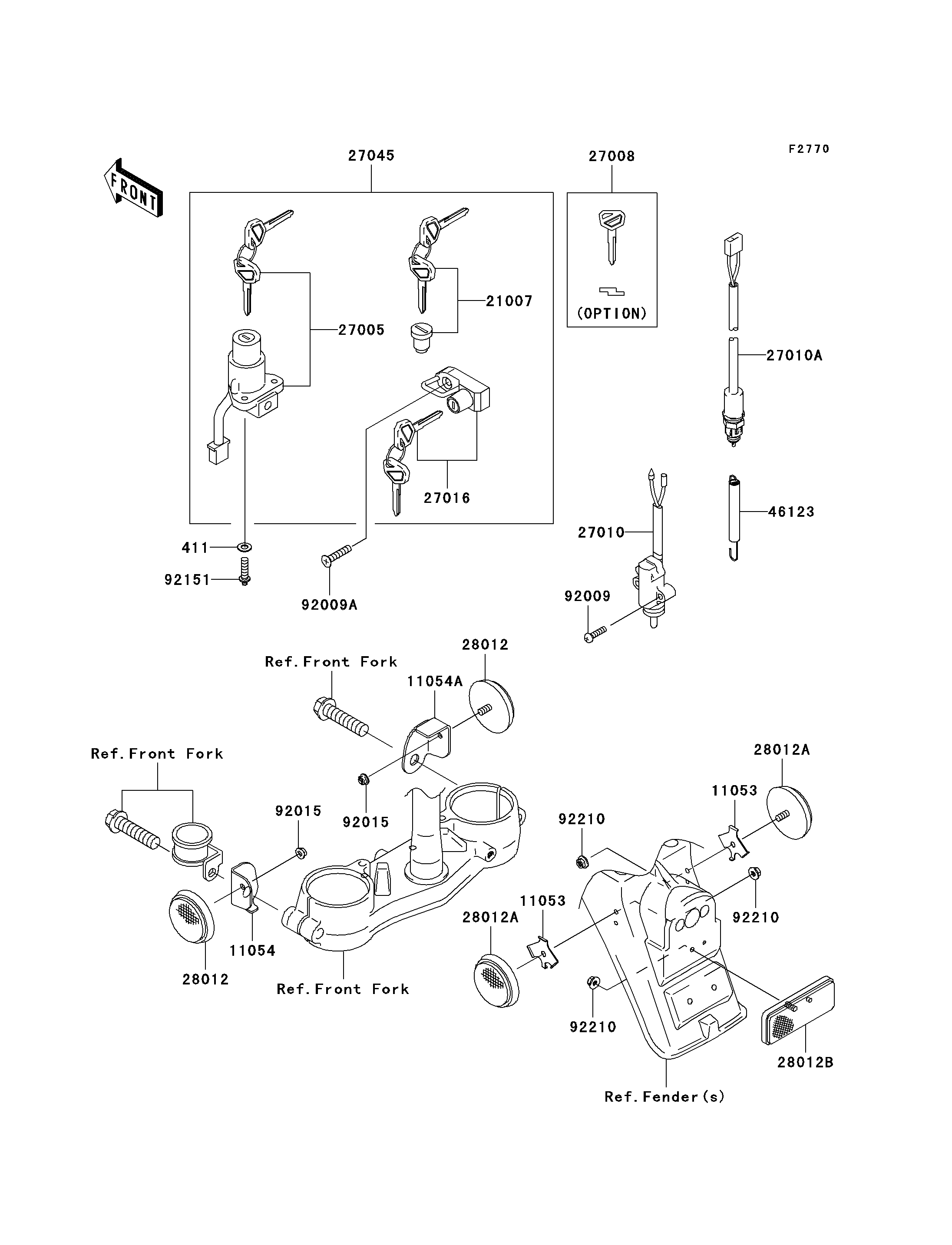

2006 KLX250S - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
411
11053
11053
11054
11054A
21007
27005
27008
27010
27010A
27016
27045
28012
28012
28012A
28012A
28012B
46123
92009
92009A
92015
92015
92151
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN,6MM 411 411E0600 2
BRACKET,REFLECTOR,RR 11053 11053-1720 2
BRACKET,REFLECTOR,FR,LH 11054 11054-0367 1
BRACKET,REFLECTOR,FR,RH 11054A 11054-0368 1
ROTOR,LOCK,TANK CAP 21007 21007-5052 1
SWITCH-ASSY-IGNITION 27005 27005-0025 1
KEY-LOCK,BLANK 27008 27008-1220 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0045 1
SWITCH,REAR BRAKE 27010A 27010-1489 1
LOCK-ASSY,HELMET 27016 27016-5291 1
SWITCH-ASSY 27045 27045-5320 1
REFLECTOR-REFLEX,FR 28012 28012-016 2
REFLECTOR-REFLEX 28012A 28012-1067 2
REFLECTOR-REFLEX 28012B 28012-1077 1
SPRING-COMP,REAR BRAKE SWITCH 46123 46123-0002 1
SCREW,5X20 92009 92009-1459 2
SCREW,6X30 92009A 92009-1753 1
NUT,FLANGED,5MM 92015 92015-1259 2
BOLT,TORX,6X22 92151 92151-1946 2
NUT,FLANGED,5MM 92210 92210-0007 3
