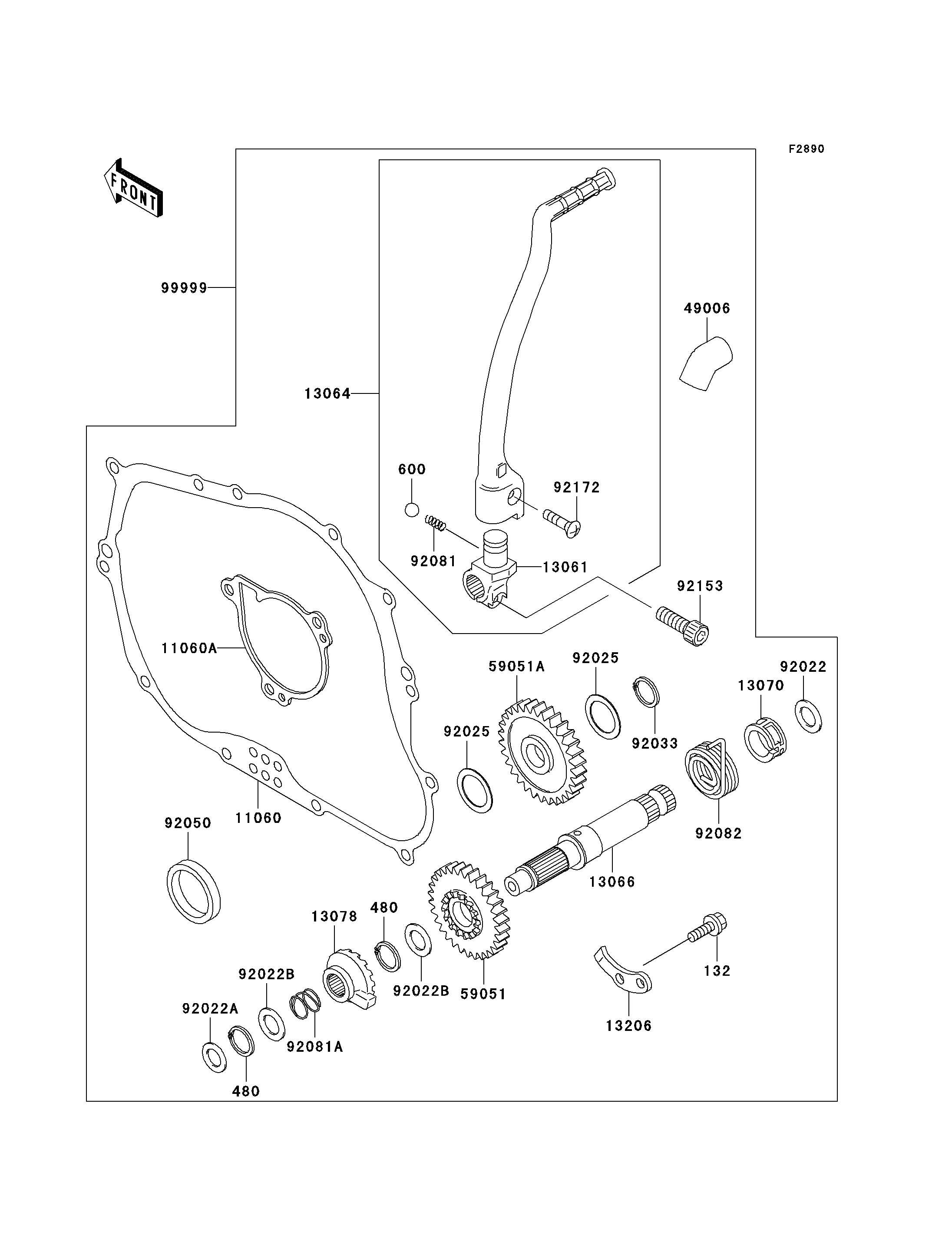

2006 KLX250S - Optional Parts

DOWNLOAD PDF
SELECT A NEW PART
132
480
480
600
11060
11060A
13061
13064
13066
13070
13078
13206
49006
59051
59051A
92022
92022A
92022B
92022B
92025
92025
92033
92050
92081
92081A
92082
92153
92172
99999
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X16 132 132G0616 1
CIRCLIP-TYPE-C,16MM 480 480J1600 2
BALL-STEEL,1/4" 600 600A0800 1
GASKET,CLUTCH COVER INNER 11060 11060-1324 1
GASKET,PUMP COVER 11060A 11060-1328 1
BOSS,KICK PEDAL 13061 13061-1397 1
LEVER-ASSY-KICK,PEDAL 13064 13064-0034 1
SHAFT-KICK 13066 13066-1088 1
GUIDE,KICK SPRING 13070 13070-011 1
RATCHET 13078 13078-1052 1
GUIDE-KICK 13206 13206-1062 1
BOOT 49006 49006-1287 1
GEAR-SPUR,KICK,29T 59051 59051-1131 1
GEAR-SPUR,28T 59051A 59051-1400 1
WASHER,18.5X23X1.2 92022 92022-118 1
WASHER,12.3X20X0.5 92022A 92022-269 1
WASHER,16.8X22X0.5 92022B 92022-315 2
SHIM,T=0.7 92025 92025-1451 2
RING-SNAP,18MM 92033 92033-029 1
SEAL-OIL 92050 92050-078 1
SPRING,KICK PEDAL 92081 92081-020 1
SPRING,RATCHET 92081A 92081-122 1
SPRING,KICKSTARTER 92082 92082-003 1
BOLT,SOCKET,8X25 92153 92153-1350 1
SCREW,6X27 92172 92172-0222 1
KIT.,KICK STARTER 99999 99999-0073 1 (OPTION)
