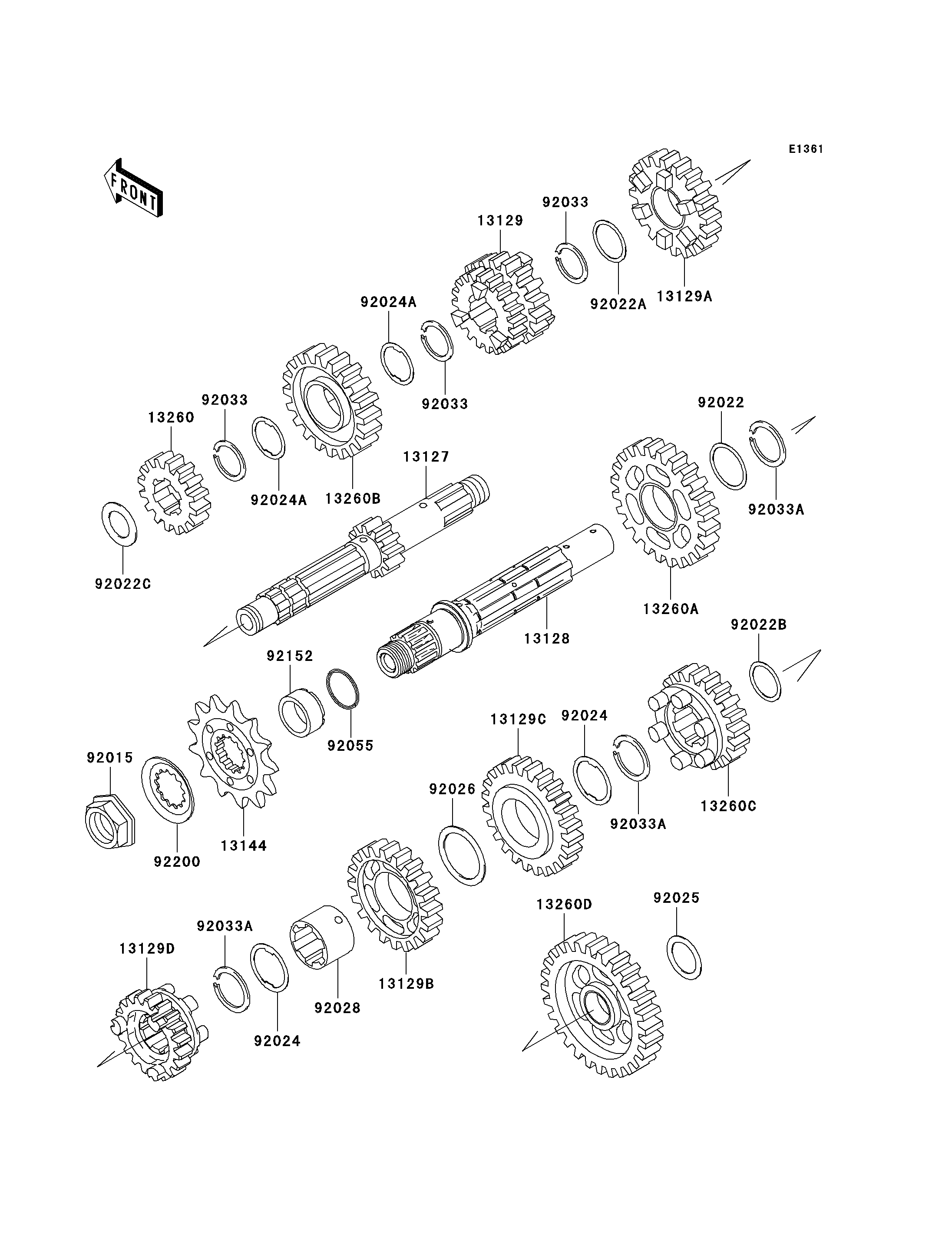

2005 KLX300R - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13127
13128
13129
13129A
13129B
13129C
13129D
13144
13260
13260A
13260B
13260C
13260D
92015
92022
92022A
92022B
92022C
92024
92024
92024A
92024A
92025
92026
92028
92033
92033
92033
92033A
92033A
92033A
92055
92152
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT,10T 13127 13127-1223 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1253 1
GEAR,INPUT 3RD&4TH,18&20T 13129 13129-1602 1
GEAR,INPUT 5TH,20T 13129A 13129-1603 1
GEAR,OUTPUT 3RD,27T 13129B 13129-1650 1
GEAR,OUTPUT 4TH,25T 13129C 13129-1651 1
GEAR,OUTPUT TOP,19T 13129D 13129-1653 1
SPROCKET-OUTPUT,14T 13144 13144-1295 1
GEAR,INPUT 2ND,15T 13260 13260-1385 1
GEAR,OUTPUT 2ND,30T 13260A 13260-1386 1
GEAR,INPUT TOP,21T 13260B 13260-1595 1
GEAR,OUTPUT 5TH,21T 13260C 13260-1596 1
GEAR,OUTPUT LOW,30T 13260D 13260-1901 1
NUT,20MM 92015 92015-1963 1
WASHER,25.3X30X0.5 92022 92022-159 1
WASHER,22.3X27X0.5 92022A 92022-198 1
WASHER,20.5X25.5X0.5 92022B 92022-252 1
WASHER,17.3X28X1 92022C 92022-255 1
WASHER,TOOTHED,22.5X31X0.5 92024 92024-038 2
WASHER,TOOTHED,22.5X27X0.5 92024A 92024-039 2
SHIM,T=0.7 92025 92025-1451 1
SPACER,30X38X1.0 92026 92026-079 1
BUSHING,OUTPUT GEAR 92028 92028-1016 1
RING-SNAP,20X25.5X1.2 92033 92033-025 3
RING-SNAP,24MM 92033A 92033-026 3
RING-O,21.5MM 92055 92055-1293 1
COLLAR 92152 92152-1465 1
WASHER 92200 92200-1065 1
