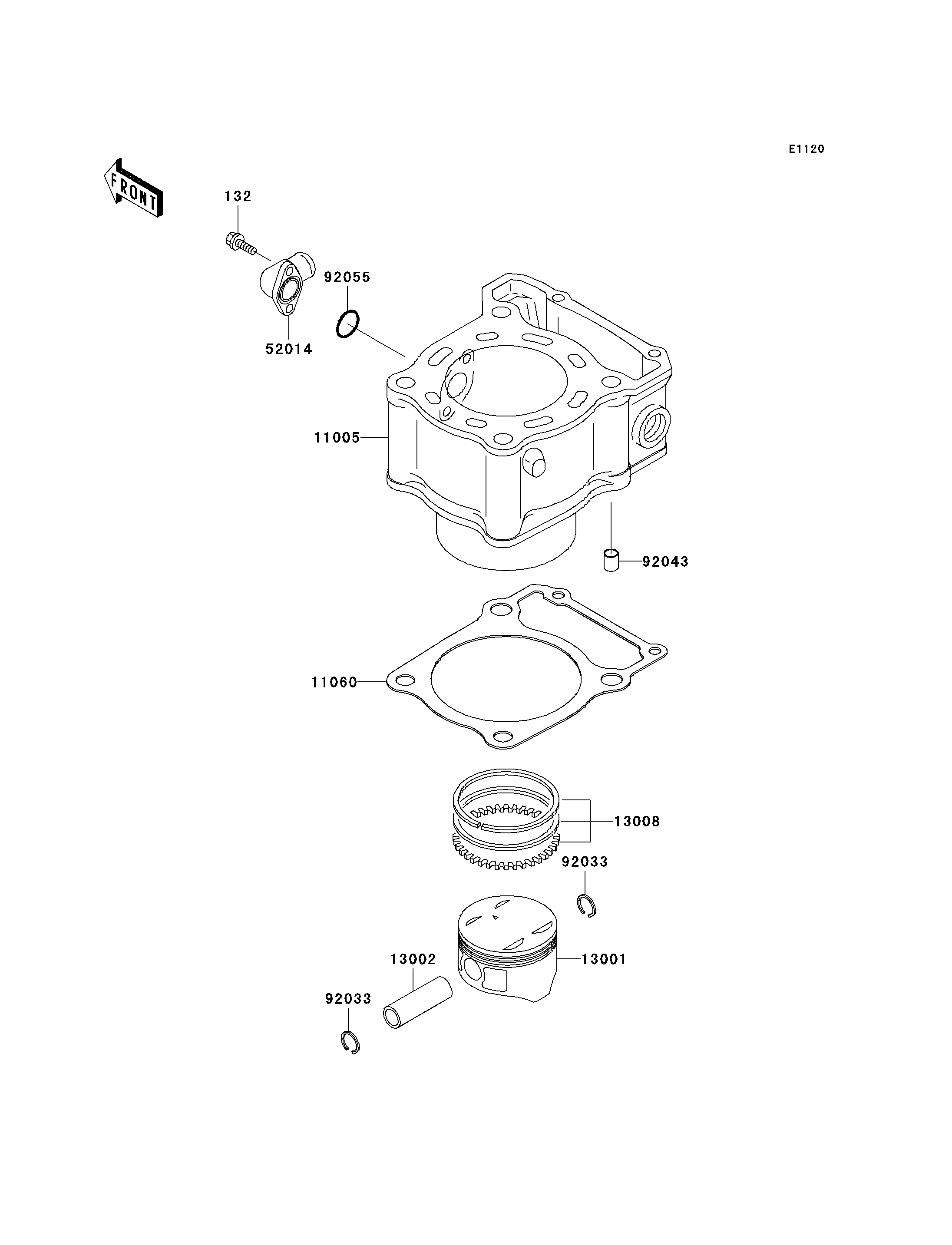

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132Y0614 2
CYLINDER-ENGINE 11005 11005-1816 1
GASKET,CYLINDER BASE 11060 11060-1740 1
PISTON-ENGINE 13001 13001-1463 1
PIN-PISTON 13002 13002-1109 1
RING-SET-PISTON,STD 13008 13008-1071 1
ELBOW 52014 52014-1084 1
RING-SNAP 92033 92033-1054 2
PIN,10.1X12X14 92043 92043-4009 2
RING-O,19.5X1.5 92055 92055-055 1
