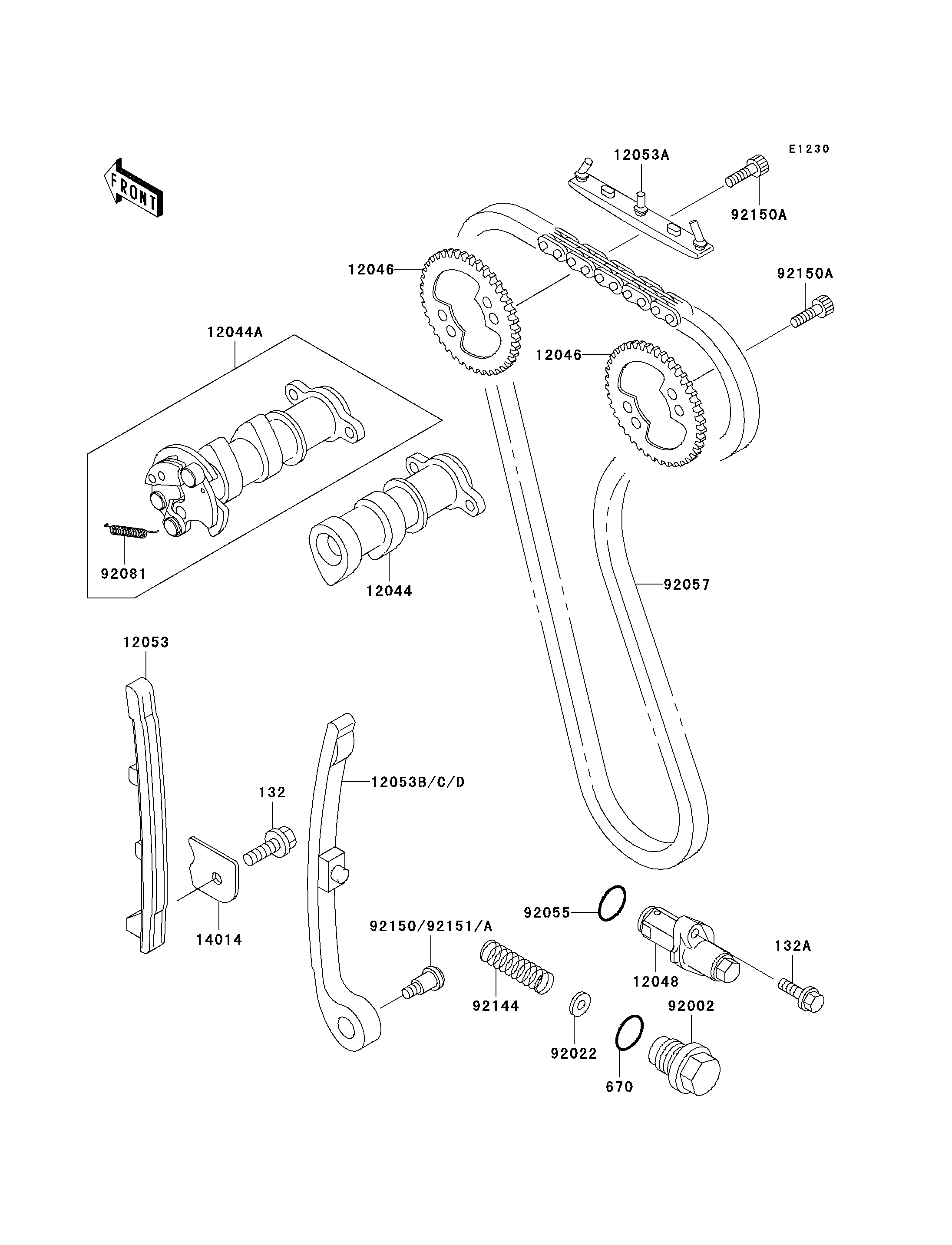

2001 KLX300R - Camshaft(s)/Tensioner

DOWNLOAD PDF
SELECT A NEW PART
132
132A
670
12044
12044A
12046
12046
12048
12053
12053A
12053C
14014
92002
92022
92055
92057
92081
92144
92150A
92150A
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0612 1
BOLT-FLANGED-SMALL 132A 132Y0635 2
O RING,18MM 670 670B2018 1
CAMSHAFT-VALVE,INTAKE 12044 12044-1327 1
CAMSHAFT-VALVE,EXHAUST 12044A 12044-1365 1
SPROCKET,CAMSHAFT,32T 12046 12046-1141 2
TENSIONER-ASSY 12048 12048-1140 1
GUIDE-CHAIN 12053 12053-1315 1
GUIDE-CHAIN 12053A 12053-1317 1
GUIDE-CHAIN 12053C 12053-1391 1
PLATE-POSITION 14014 14014-1130 1
BOLT,TENSIONER 92002 92002-1621 1
WASHER,8.5X13.5X2 92022 92022-1108 1
RING-O 92055 92055-086 1
CHAIN,CAM,92RH2010 92057 92057-1416 1
SPRING,DECOMPRESSOR 92081 92081-1626 1
SPRING,TENSIONER 92144 92144-1769 1
BOLT,SOCKET,6X10 92150A 92150-1650 4
BOLT,L=30 92151 92151-1154 1
