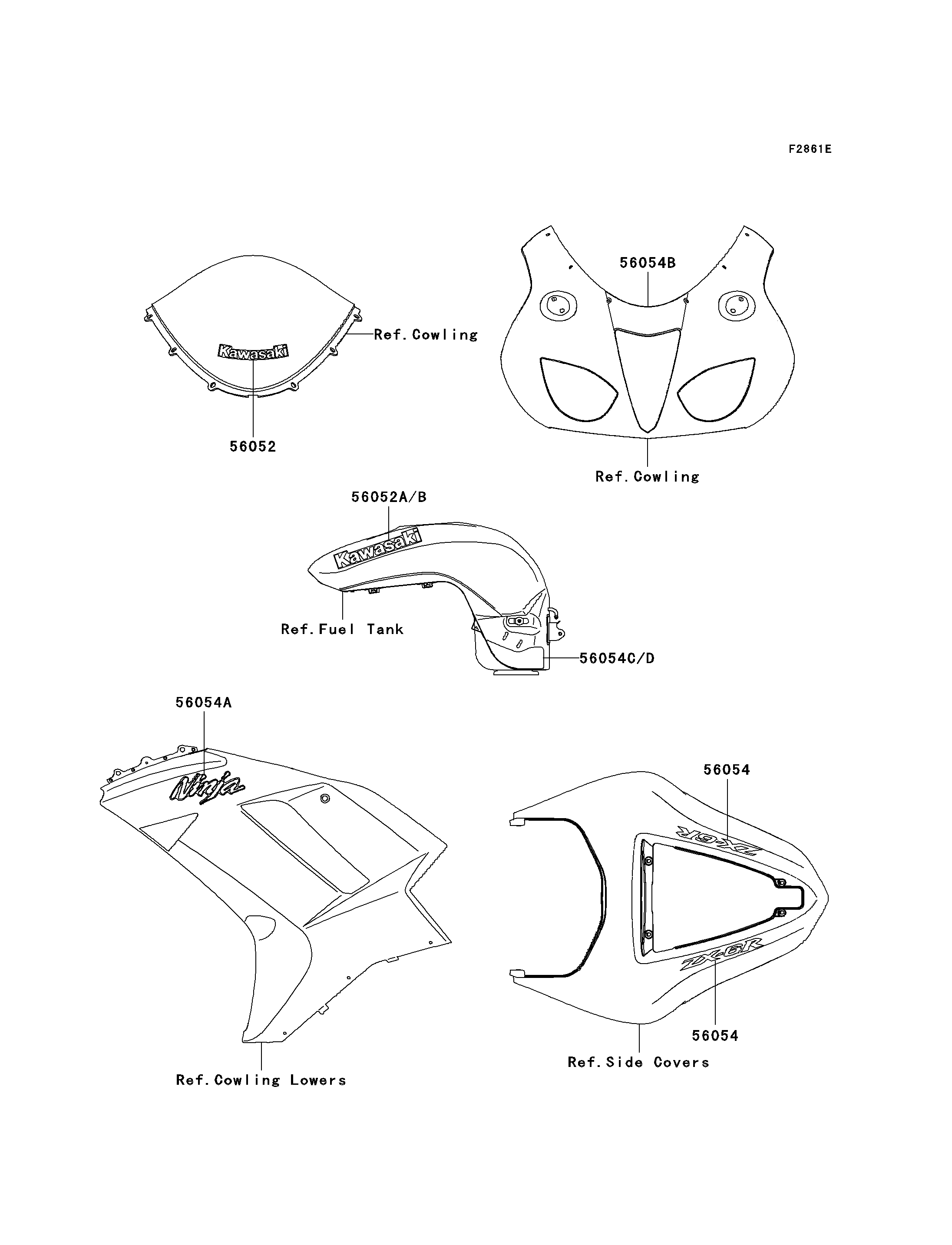

56052
56052A
56052B
56054
56054
56054A
56054B
56054C
56054D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,WINDSHIELD,KAWASAKI 56052 56052-0154 1
MARK,FUEL TANK,LH,KAWASAKI 56052A 56052-1997 1
MARK,FUEL TANK,RH,KAWASAKI 56052B 56052-1998 1
MARK,SEAT COVER,ZX-6R 56054 56054-0003 2
MARK,CNT COWLING,NINJA 56054A 56054-0007 2
MARK,UPP COWLING 56054B 56054-0009 1
MARK,FUEL TANK,LH 56054C 56054-0040 1
MARK,FUEL TANK,RH 56054D 56054-0041 1
