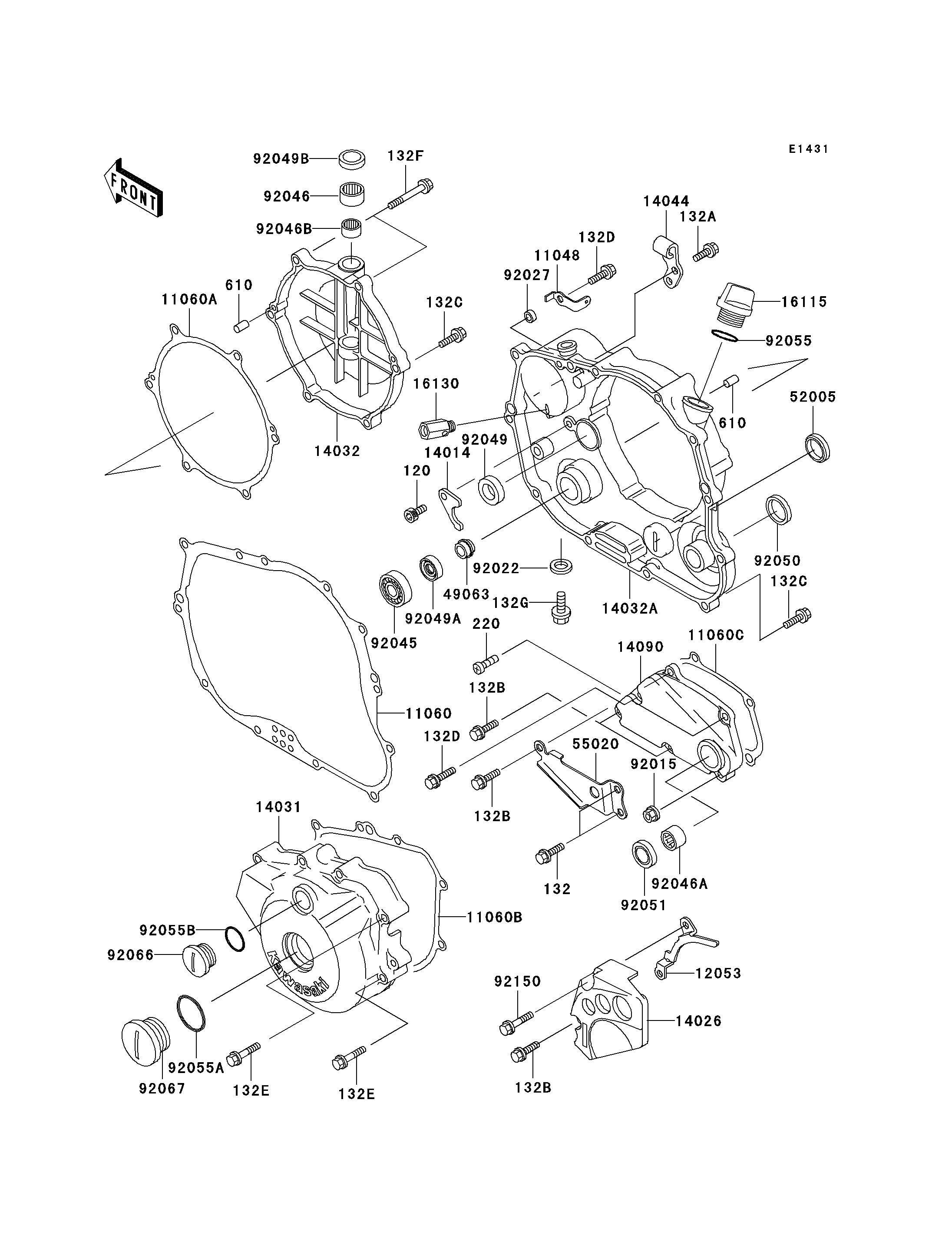

1998 KLX300R - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
120
120
132
132
132A
132A
132B
132B
132B
132B
132B
132B
11048
11048
11060
11060
11060A
11060A
11060B
11060B
11060C
11060C
12053
12053
14014
14014
14026
14026
14031
14031
14032
14032
14032A
14032A
14044
14044
14090
14090
16115
16115
16130
16130
49063
49063
52005
52005
55020
55020
92015
92015
92022
92022
92027
92027
92045
92045
92046
92046
92046A
92046A
92046B
92046B
92049
92049
92049A
92049A
92049B
92049B
92050
92050
92051
92051
92055
92055
92055A
92055A
92055B
92055B
92066
92066
92067
92067
92150
92150
132C
132C
132C
132C
132D
132D
132D
132D
132E
132E
132E
132E
132F
132F
132G
132G
220
220
610
610
610
610
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X10 120 120P0610 1
BOLT-FLANGED-SMALL 132 132Y0612 2
BOLT-FLANGED-SMALL 132A 132Y0616 2
BOLT-FLANGED-SMALL 132B 132Y0620 4
BRACKET 11048 11048-1300 1
GASKET,CLUTCH COVER INNER 11060 11060-1324 1
GASKET,CLUTCH COVER OUTER 11060A 11060-1325 1
GASKET,GENERATOR COVER 11060B 11060-1326 1
GASKET,TRANSMISSION COVER 11060C 11060-1327 1
GUIDE-CHAIN 12053 12053-1337 1
PLATE-POSITION 14014 14014-1062 1
COVER-CHAIN 14026 14026-1186 1
COVER-GENERATOR 14031 14031-1301 1
COVER-CLUTCH,OUTER 14032 14032-1335 1
COVER-CLUTCH 14032A 14032-1438 1
HOLDER-CABLE 14044 14044-1078 1
COVER,TRANSMISSION 14090 14090-1285 1
CAP-OIL FILLER 16115 16115-1053 1
VALVE-ASSY-RELIEF 16130 16130-1001 1
SEAL-MECHANICAL,WATER PUMP 49063 49063-1002 1
GAUGE,OIL LEVEL 52005 52005-1009 1
GUARD,TRANSMISSION COVER 55020 55020-1460 1
NUT,FLANGED,6MM 92015 92015-1193 1
WASHER,8.2X14X1.0 92022 92022-1488 1
COLLAR,6.5X10.5X4.5 92027 92027-1885 1
BEARING-BALL,6901 92045 92045-1246 1
BEARING-NEEDLE,HK1210 92046 92046-1010 1
BEARING-NEEDLE,HK1312 92046A 92046-1148 1
BEARING-NEEDLE 92046B 92046-1230 1
SEAL-OIL 92049 92049-1191 1
SEAL-OIL,AC037AE0 92049A 92049-1228 1
SEAL-OIL 92049B 92049-1262 1
SEAL-OIL 92050 92050-078 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O 92055 92055-012 1
RING-O 92055A 92055-091 1
RING-O 92055B 92055-1146 1
PLUG 92066 92066-1397 1
PLUG,30X8 92067 92067-024 1
BOLT,6X35 92150 92150-1137 1
BOLT-FLANGED-SMALL 132C 132Y0625 12
BOLT-FLANGED-SMALL 132D 132Y0630 2
BOLT-FLANGED-SMALL 132E 132Y0640 8
BOLT-FLANGED-SMALL 132F 132Y0670 2
BOLT-FLANGED-SMALL 132G 132Y0810 1
SCREW-PAN-CROS 220 220X0616 1
ROLLER,4X8 610 610A0408 4
