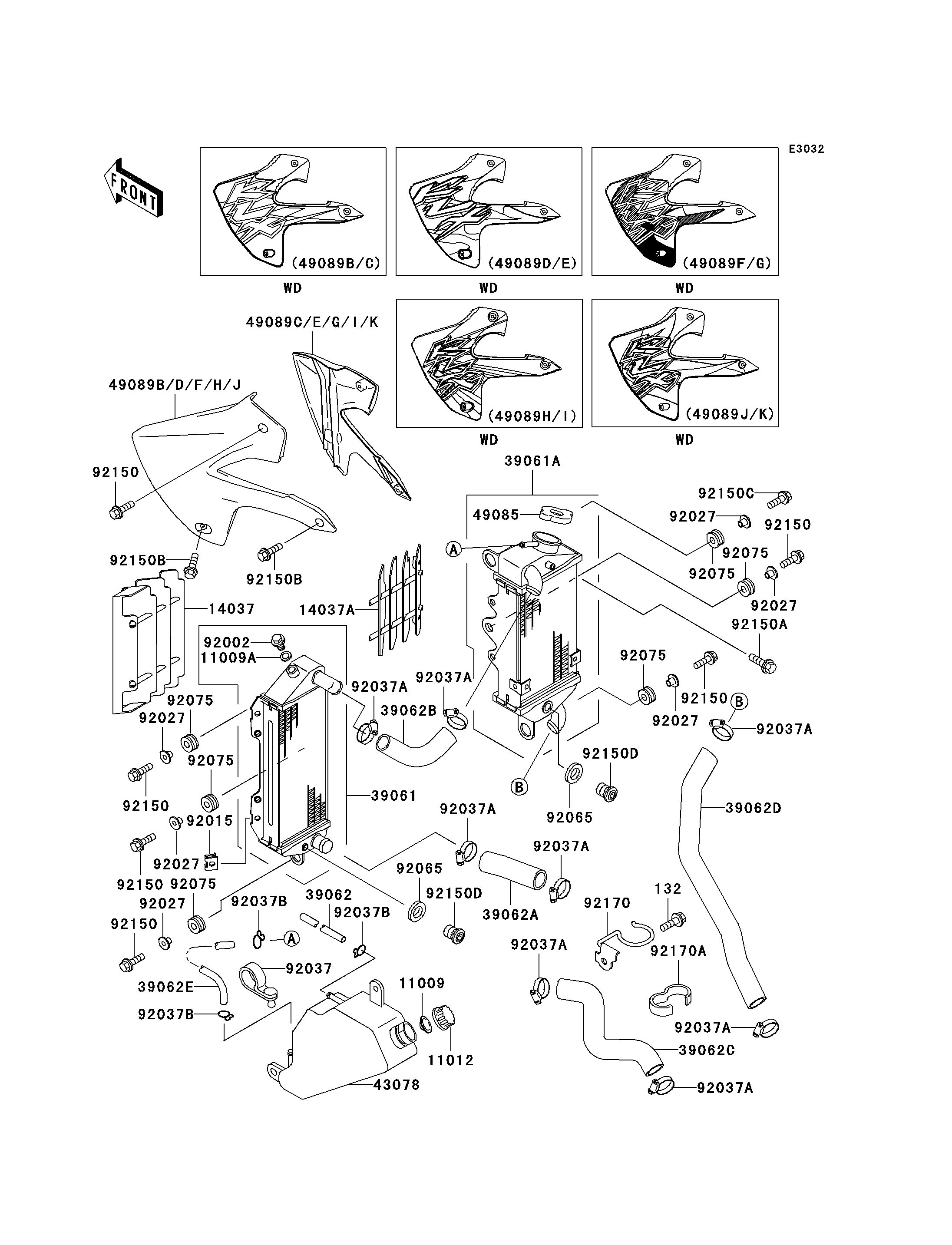

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11009
11009
11009A
11009A
11012
11012
14037
14037
14037A
14037A
39061
39061
39061A
39061A
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
43078
43078
49085
49085
49089D
49089D
49089E
49089E
92002
92002
92015
92015
92027
92027
92027
92027
92027
92027
92027
92027
92027
92027
92027
92027
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037B
92037B
92037B
92037B
92037B
92037B
92065
92065
92065
92065
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92150
92150
92150
92150
92150
92150
92150
92150
92150
92150
92150
92150
92150A
92150A
92150B
92150B
92150B
92150B
92150C
92150C
92150D
92150D
92150D
92150D
132
132
92170
92170
92170A
92170A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| GASKET,DRAIN BOLT | 11009A | 11009-1152 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| SCREEN,WHITE | 14037 | 14037-1099-RZ | 1 | ||
| SCREEN,RH,WHITE | 14037A | 14037-1274-RZ | 1 | ||
| RADIATOR-ASSY,LH | 39061 | 39061-1233 | 1 | ||
| RADIATOR-ASSY,RH | 39061A | 39061-1234 | 1 | ||
| HOSE-COOLING,5X9X420 | 39062 | 39062-1315 | 1 | ||
| HOSE-COOLING,HEAD-RADIATOR | 39062A | 39062-1535 | 1 | ||
| HOSE-COOLING,RADIATOR,L-R | 39062B | 39062-1536 | 1 | ||
| HOSE-COOLING,PUMP-CYLINDER | 39062C | 39062-1563 | 1 | ||
| HOSE-COOLING,RADIATOR-PUMP | 39062D | 39062-1564 | 1 | ||
| HOSE-COOLING,5X9X1080 | 39062E | 39062-1569 | 1 | ||
| RESERVOIR | 43078 | 43078-1140 | 1 | ||
| CAP-ASSY-PRESSURE,P1.1 | 49085 | 49085-1070 | 1 | ||
| SHROUD-ENGINE,LH,L.GREEN | 49089D | 49089-5292-6W | 1 | ||
| SHROUD-ENGINE,RH,L.GREEN | 49089E | 49089-5293-6W | 1 | ||
| BOLT,RADIATOR DRAIN | 92002 | 92002-1682 | 1 | ||
| NUT | 92015 | 92015-1487 | 1 | ||
| COLLAR,L=11.1 | 92027 | 92027-194 | 6 | ||
| CLAMP,SPEED,L=58 | 92037 | 92037-1163 | 1 | ||
| CLAMP,COOLING HOSE | 92037A | 92037-1589 | 8 | ||
| CLAMP | 92037B | 92037-1712 | 3 | ||
| GASKET,10.5X16X1 | 92065 | 92065-058 | 2 | ||
| DAMPER | 92075 | 92075-209 | 6 | ||
| BOLT,6X20 | 92150 | 92150-1339 | 7 | ||
| BOLT,6X14 | 92150A | 92150-1340 | 1 | ||
| BOLT,6X12 | 92150B | 92150-1435 | 4 | ||
| BOLT,FLANGED,6X25 | 92150C | 92150-1507 | 1 | ||
| BOLT,10X10 | 92150D | 92150-1867 | 2 | ||
| BOLT-FLANGED-SMALL,6X10 | 132 | 132J0610 | 1 | ||
| CLAMP | 92170 | 92170-1357 | 1 | ||
| CLAMP | 92170A | 92170-1419 | 1 |
