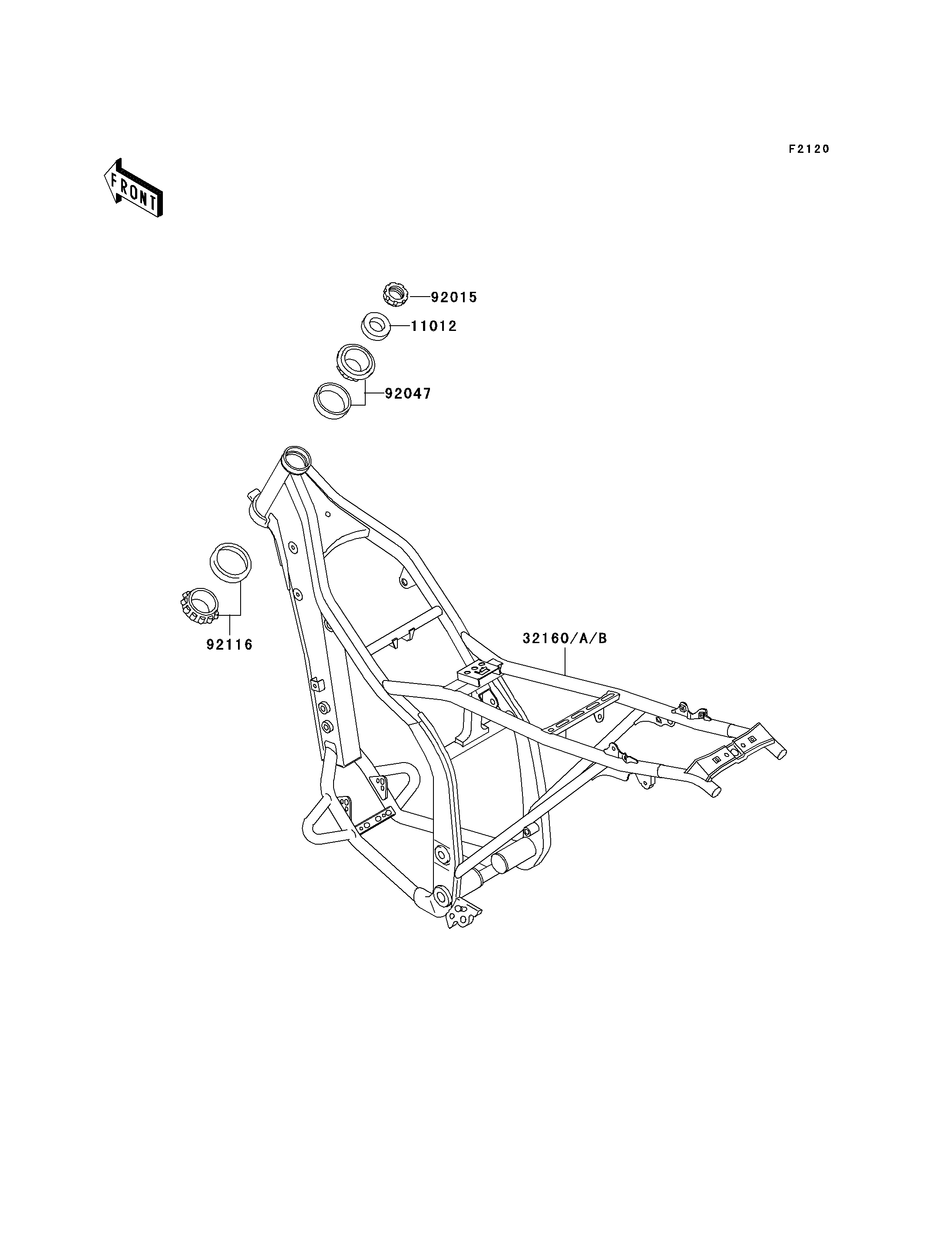

11012
32160
92015
92047
92116
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STEERING STEM 11012 11012-1762 1
FRAME-COMP,L.GREEN 32160 32160-1394-CC 1
NUT,25MM,T=12 92015 92015-1546 1
RACE,ROLLER,32005JR RS 92047 92047-017 1
BEARING-ROLLER,HI-CAP32006JRRS 92116 92116-1069 1
