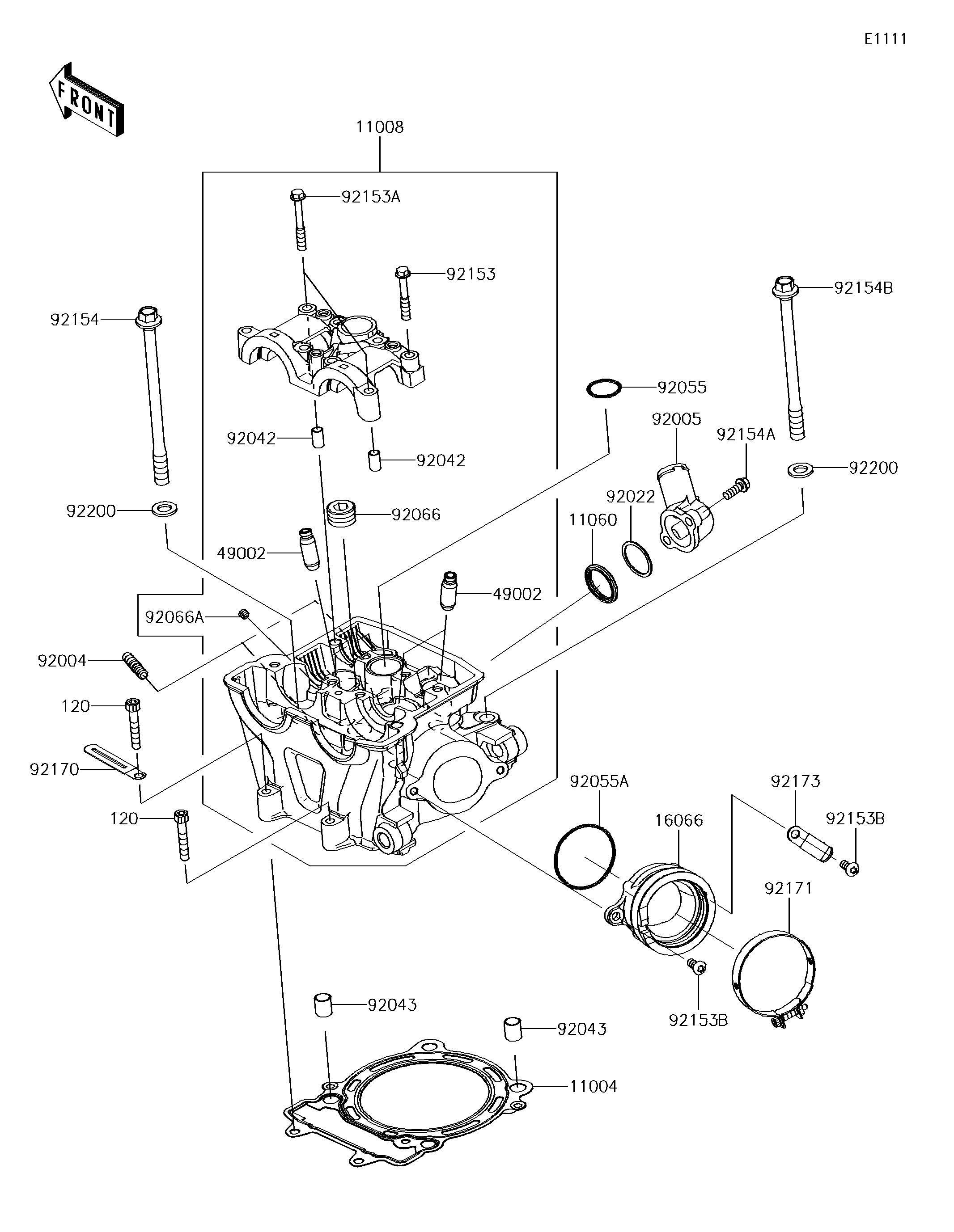

2017 KX™450F - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
11060
120
120
16066
49002
49002
92004
92005
92022
92042
92042
92043
92043
92055
92055A
92066
92066A
92153
92153A
92153B
92153B
92154
92154A
92154B
92170
92171
92173
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0756 1
HEAD-COMP-CYLINDER 11008 11008-0880 1
GASKET,THERMOSTAT 11060 11060-1300 1
BOLT-SOCKET,6X35 120 120CA0635 2
HOLDER-THROTTLE BODY 16066 16066-0004 1
GUIDE-VALVE 49002 49002-0020 AR
STUD,8X22 92004 92004-0025 2
FITTING 92005 92005-0807 1
WASHER,25.3X30X1 92022 92022-161 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,10.1X12X14 92043 92043-4009 2
RING-O,23.5X2.0 92055 92055-0046 1
RING-O,47X1.9 92055A 92055-1600 1
PLUG,PT1/2X12.5 92066 92066-0002 1
PLUG,6X6 92066A 92066-0068 1
BOLT,6X38 92153 92153-0338 6
BOLT,6X45 92153A 92153-0339 2
BOLT,TORX,6X14 92153B 92153-0406 2
BOLT,FLANGED,10X140 92154 92154-1791 2
BOLT,FLANGED,6X16 92154A 92154-1926 2
BOLT,FLANGED,10X127 92154B 92154-2455 2
CLAMP 92170 92170-1514 1
CLAMP 92171 92171-1552 1
CLAMP 92173 92173-1566 1
WASHER,10.2X18.4X1.8 92200 92200-1691 4
