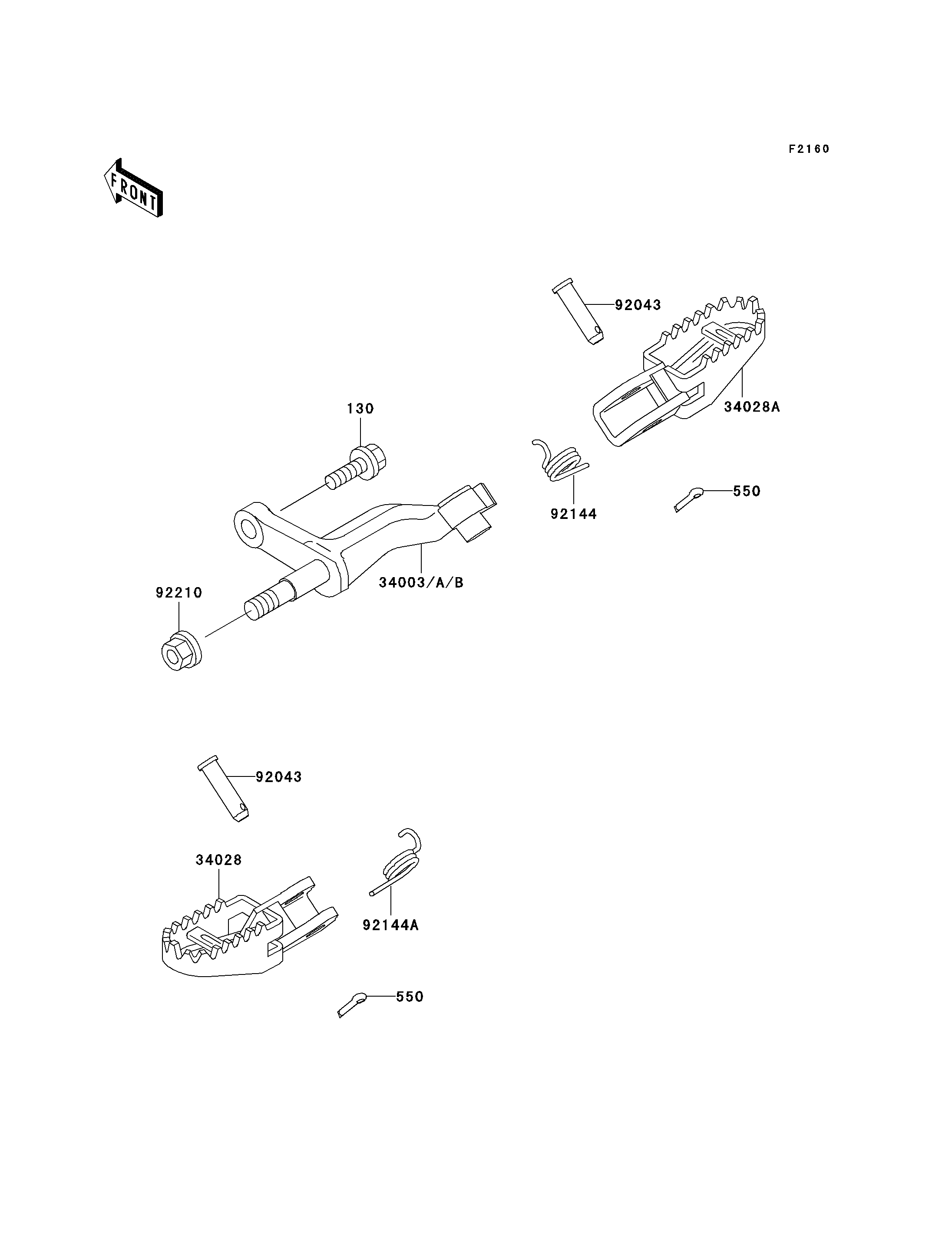

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,10X20 130 130P1020 1
PIN-COTTER,2.5X15 550 550D2515 2
HOLDER-STEP,RH,L.GREEN 34003 34003-1401-CC 1
STEP,FR,LH 34028 34028-1361 1
STEP,FR,RH 34028A 34028-1362 1
PIN,8X35.5 92043 92043-115 2
SPRING,STEP RETURN,RH 92144 92144-1685 1
SPRING,STEP RETURN,LH 92144A 92144-1749 1
NUT,LOCK,FLANGED,10MM 92210 92210-1080 1
