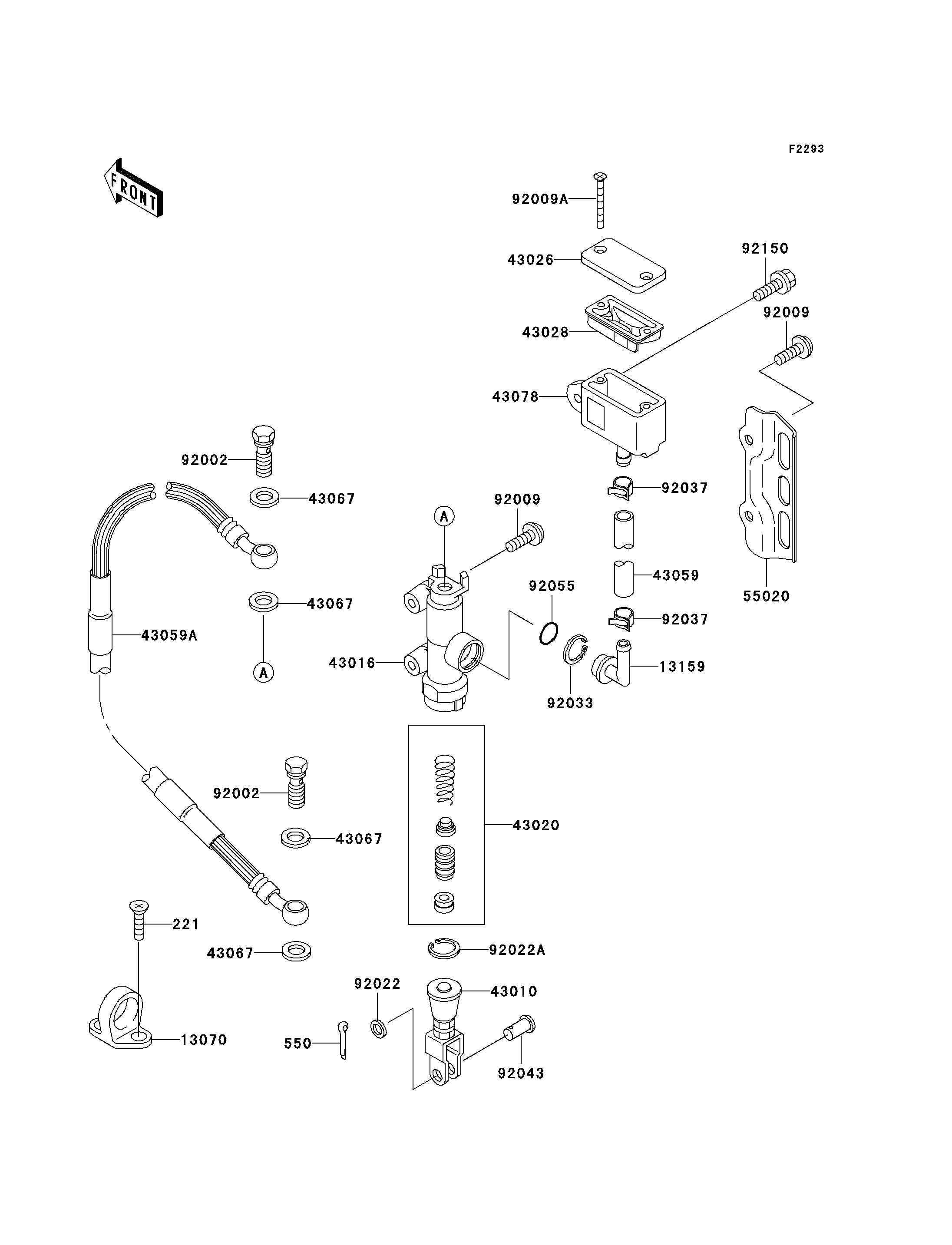

2001 KLX300R - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
221
550
13070
13159
43010
43016
43020
43026
43028
43059
43059A
43067
43067
43067
43067
43078
55020
92002
92002
92009
92009
92009A
92022
92022A
92033
92037
92037
92043
92055
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-CSK-CROS,6X10 221 221B0610 4
PIN-COTTER,2.0X15 550 550D2015 1
GUIDE,HOSE 13070 13070-1144 2
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-1068 1
CYLINDER-MASTER 43016 43016-1149 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1075 1
DIAPHRAGM 43028 43028-1067 1
HOSE-BRAKE,RR MASTER CYLINDER 43059 43059-1767 1
HOSE-BRAKE,RR 43059A 43059-1941 1
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR 43078 43078-1122 1
GUARD,RR BRAKE RESERVOIR HOSE 55020 55020-1489 1
BOLT,OIL,L=23 92002 92002-1888 2
SCREW,6X14,WHITE 92009 92009-1287 4
SCREW,4X40 92009A 92009-1596 2
WASHER,8.5X13X1 92022 92022-1028 1
WASHER,CIRCRIP 92022A 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP 92037 92037-1710 2
PIN 92043 92043-1039 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,6X20 92150 92150-1339 1
