Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

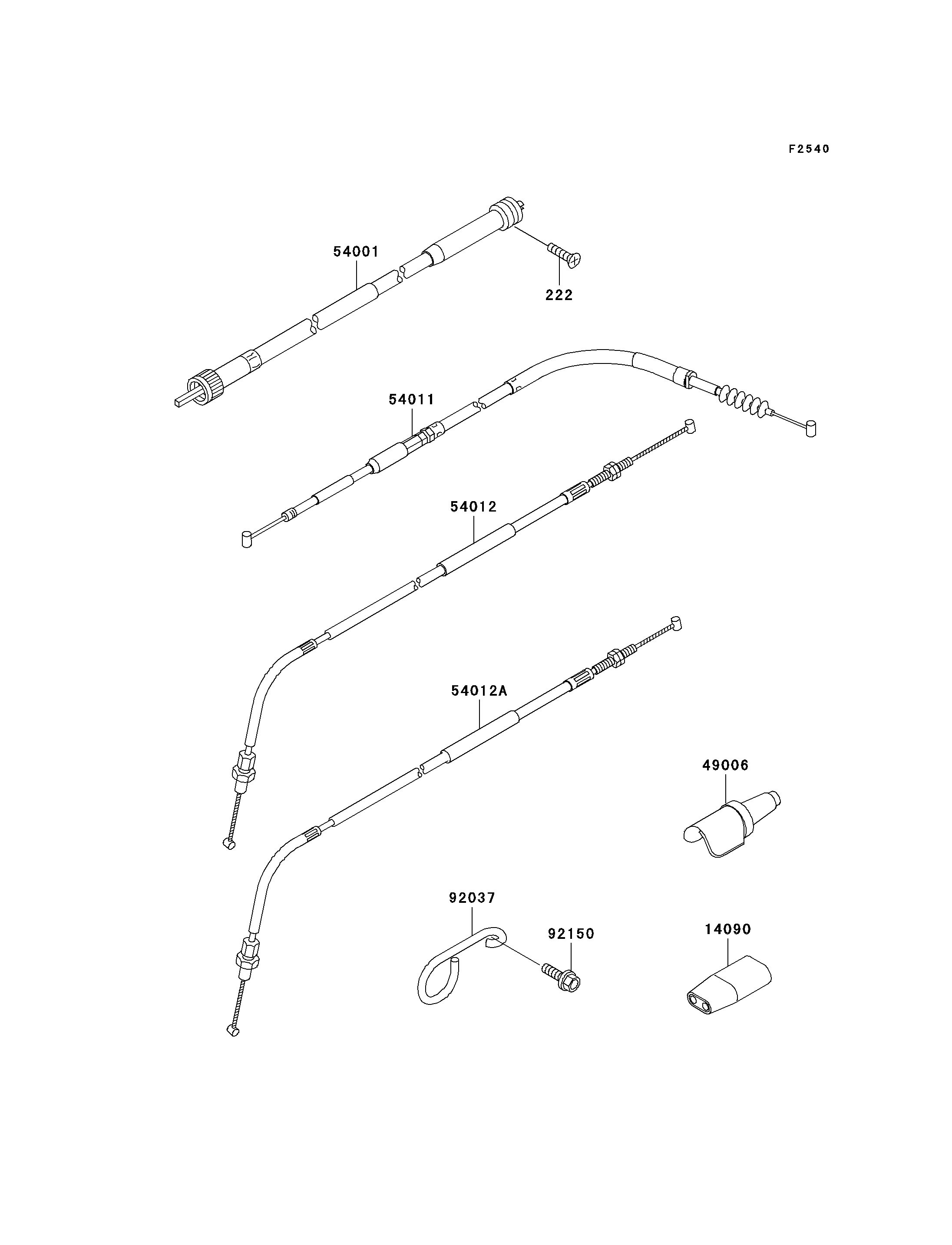

222
14090
49006
54001
54011
54012
54012A
92037
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-CSK-RD-CROS 222 222C0520 1
COVER,THROTTLE CABLE 14090 14090-1309 1
BOOT 49006 49006-1189 1
CABLE-SPEEDMETER 54001 54001-1198 1
CABLE-CLUTCH 54011 54011-1385 1
CABLE-THROTTLE,OPENING 54012 54012-1457 1
CABLE-THROTTLE,CLOSING 54012A 54012-1467 1
CLAMP,CABLE 92037 92037-1064 2
BOLT,6X14 92150 92150-1340 1
