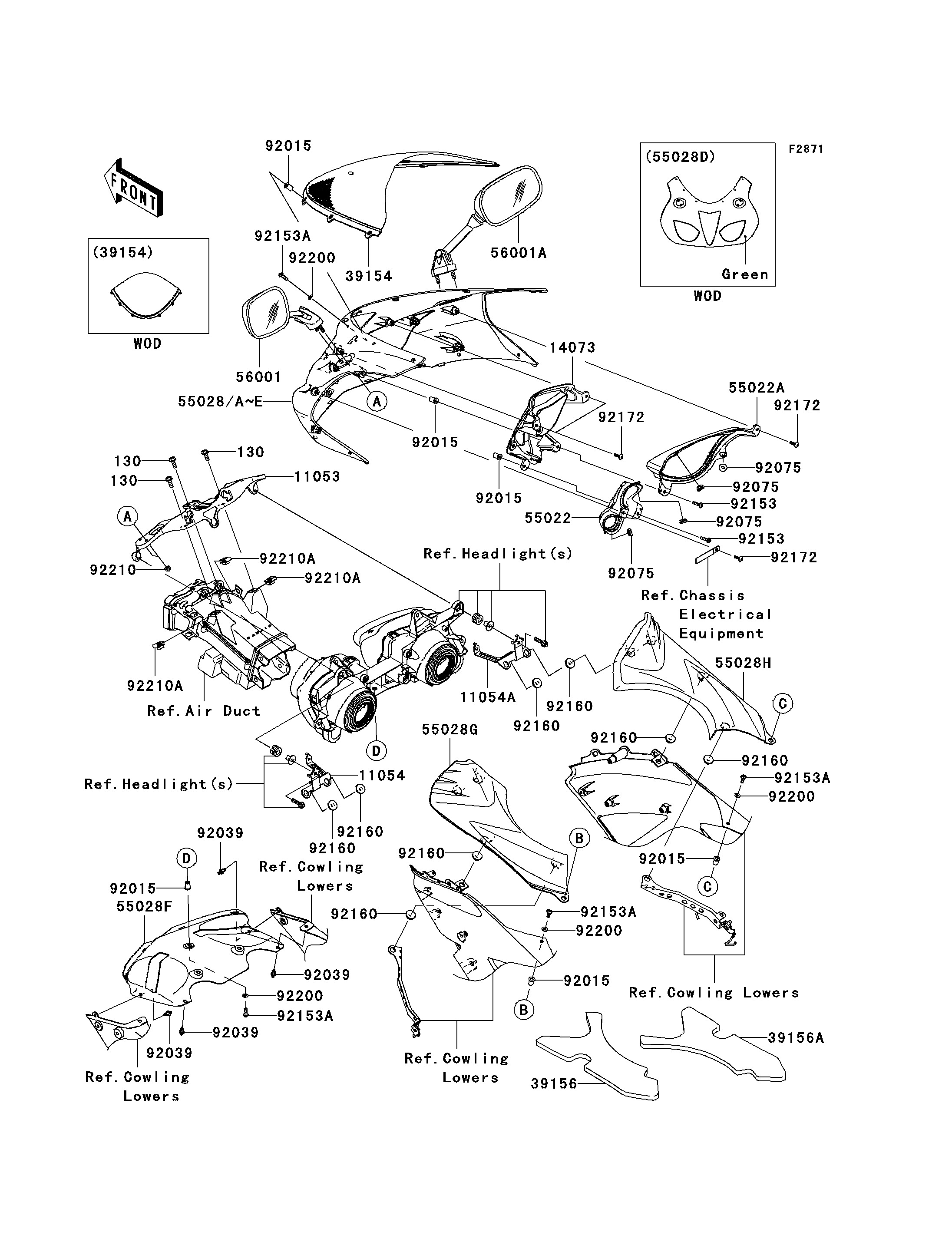

2008 Ninja® ZX™-6R - Cowling

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
11053
11054
11054A
14073
39154
39156
39156A
55022
55022A
55028C
55028D
55028E
55028F
55028G
55028H
56001
56001A
92015
92015
92015
92015
92015
92015
92039
92039
92039
92039
92075
92075
92075
92075
92153
92153
92153A
92153A
92153A
92153A
92160
92160
92160
92160
92160
92160
92160
92160
92172
92172
92172
92200
92200
92200
92200
92210
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BB0616 3
BRACKET,MIRROR&METER 11053 11053-1289 1
BRACKET,INNER COWLING,LH 11054 11054-0929 1
BRACKET,INNER COWLING,RH 11054A 11054-0930 1
DUCT,RAM,F.BLACK 14073 14073-0134-21 1
WINDSHIELD 39154 39154-0016 1
PAD,INNER COWLING,LH 39156 39156-0240 1
PAD,INNER COWLING,RH 39156A 39156-0241 1
COVER-HEAD LAMP,LH 55022 55022-0033 1
COVER-HEAD LAMP,RH 55022A 55022-0034 1
COWLING,UPP,C.P.BLUE 55028C 55028-0126-723 1
COWLING,UPP,L.GREEN 55028D 55028-0126-777 1
COWLING,UPP,V.YELLOW 55028E 55028-0126-789 1
COWLING,HEAD LAMP,LWR 55028F 55028-0132 1
COWLING,INNER,LH 55028G 55028-0135 1
COWLING,INNER,RH 55028H 55028-0136 1
MIRROR-ASSY,LH 56001 56001-0084 1
MIRROR-ASSY,RH 56001A 56001-0085 1
NUT,WELL,5MM 92015 92015-1757 11
RIVET 92039 92039-0023 4
DAMPER 92075 92075-1011 4
BOLT,SOCKET,5X20 92153 92153-0873 2
BOLT,SOCKET,5X16 92153A 92153-1244 9
DAMPER 92160 92160-1613 8
SCREW,TAPPING,5X16 92172 92172-0175 4
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 9
NUT,CAP,6MM 92210 92210-0003 4
NUT 92210A 92210-0130 3
