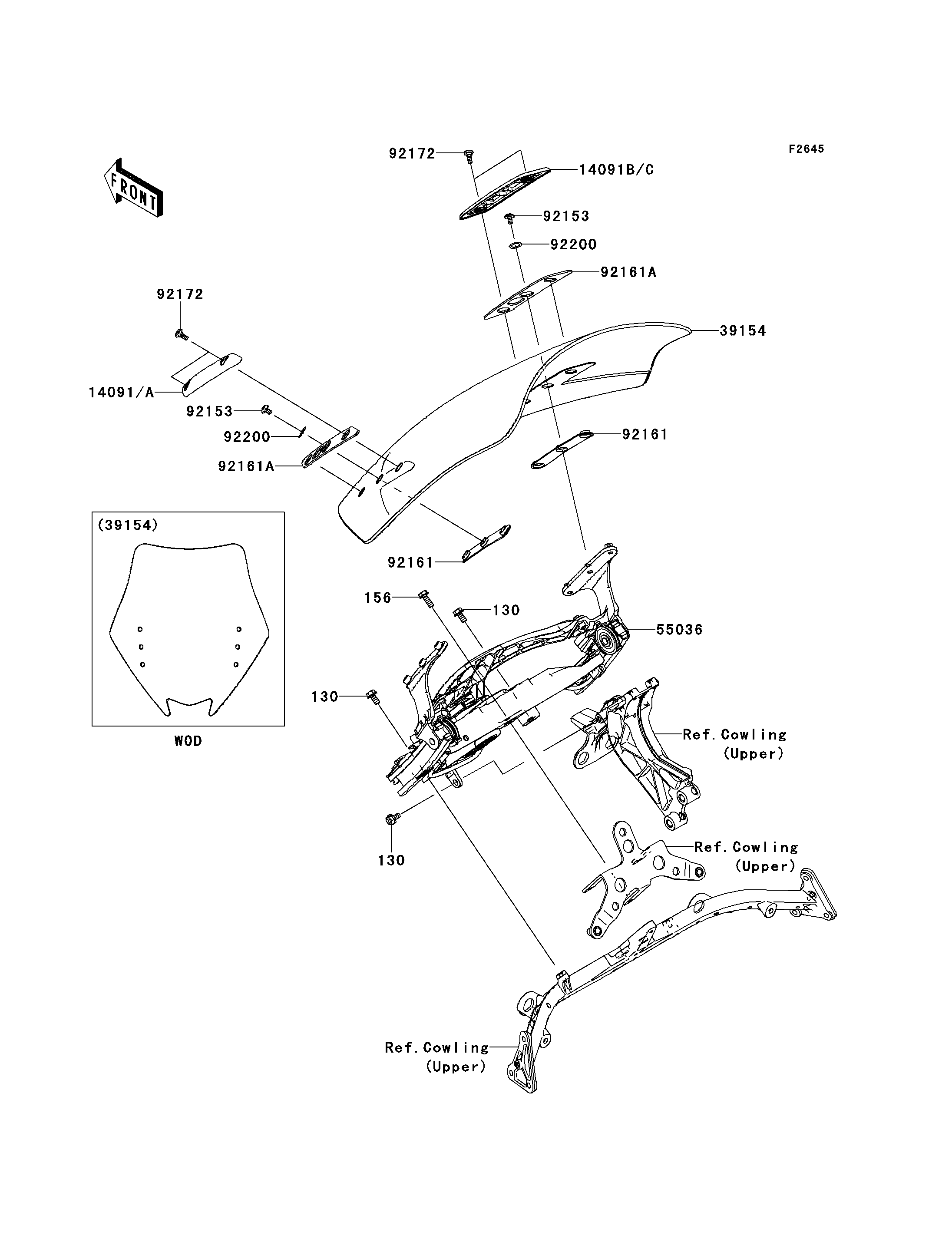

130
130
130
156
14091A
14091C
39154
55036
92153
92153
92161
92161
92161A
92161A
92172
92172
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BA0612 3
BOLT-WP,6X18 156 156R0618 1
COVER,WINDSHIELD,LH,F.BLACK 14091A 14091-0642-6Z 1
COVER,WINDSHIELD,RH,F.BLACK 14091C 14091-0643-6Z 1
WINDSHIELD 39154 39154-0027 1
WINDSHIELD-ASSY 55036 55036-0003 1
BOLT,SOCKET,6X11 92153 92153-1695 2
DAMPER,WINDSHIELD,LWR 92161 92161-0398 2
DAMPER,WINDSHIELD 92161A 92161-0495 2
SCREW,5MM 92172 92172-0170 4
WASHER,10.3X17X1 92200 92200-0380 2
