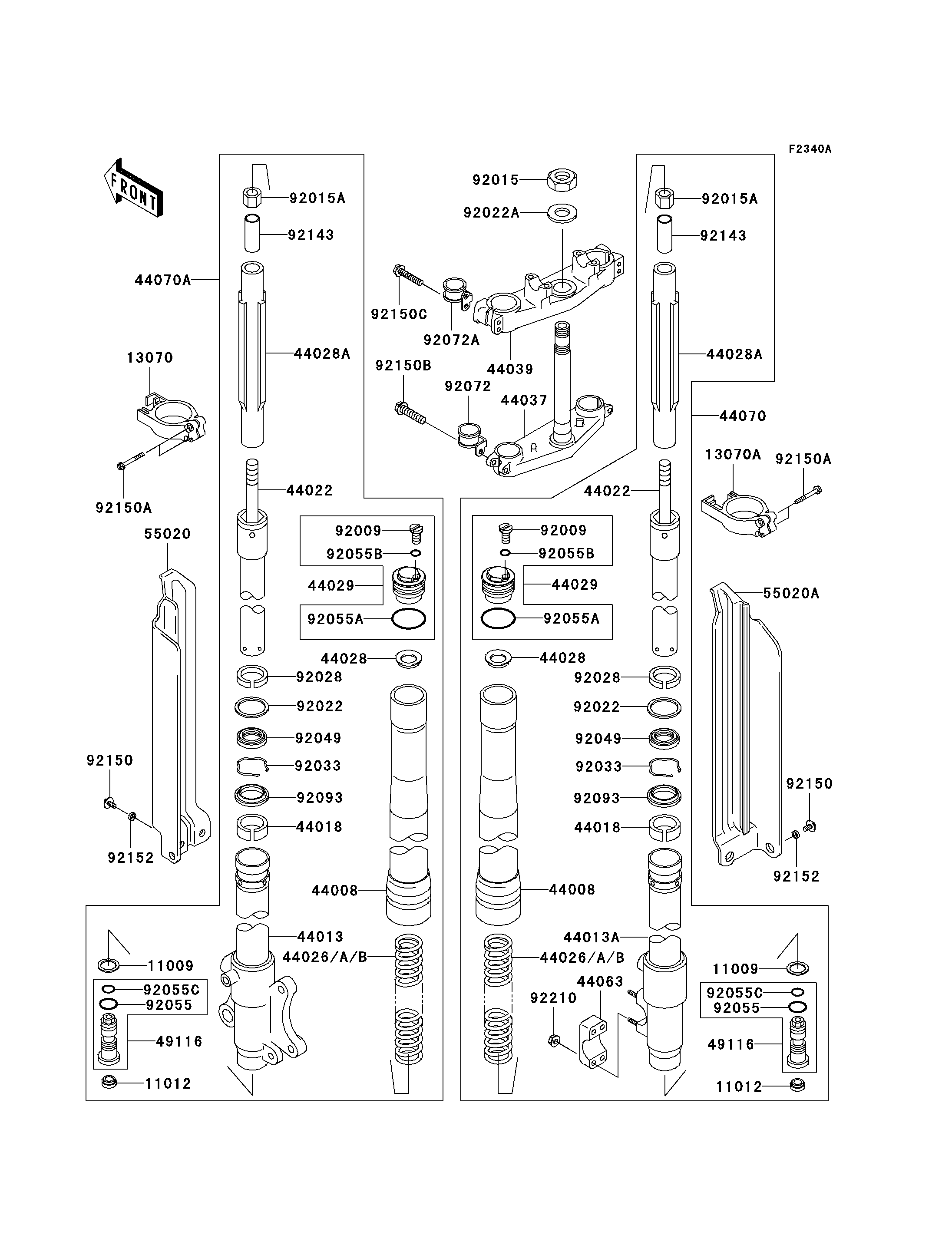

2007 KLX300R - Front Fork(A7F)

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009
11009
11012
11012
11012
11012
13070
13070
13070A
13070A
44008
44008
44008
44008
44013
44013
44013A
44013A
44018
44018
44018
44018
44022
44022
44022
44022
44026
44026
44026
44026
44026A
44026A
44026A
44026A
44026B
44026B
44026B
44026B
44028
44028
44028
44028
44028A
44028A
44028A
44028A
44029
44029
44029
44029
44037
44037
44039
44039
44063
44063
44070
44070
44070A
44070A
49116
49116
49116
49116
55020
55020
55020A
55020A
92009
92009
92009
92009
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92022A
92022A
92028
92028
92028
92028
92033
92033
92033
92033
92049
92049
92049
92049
92055
92055
92055
92055
92055A
92055A
92055A
92055A
92055B
92055B
92055B
92055B
92055C
92055C
92055C
92055C
92072
92072
92072A
92072A
92093
92093
92093
92093
92143
92143
92143
92143
92150
92150
92150
92150
92150A
92150A
92150A
92150A
92150B
92150B
92150C
92150C
92152
92152
92152
92152
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1592 2
CAP,FORK CYLINDER 11012 11012-1381 2
GUIDE,FORK,LH,WHITE 13070 13070-1263-RZ 1
GUIDE,FORK,RH,WHITE 13070A 13070-1264-RZ 1
PIPE-FORK OUTER,GOLD 44008 44008-1028-828 2
PIPE-FORK INNER,LH 44013 44013-1387 1
PIPE-FORK INNER,RH 44013A 44013-1388 1
PISTON-FORK,INNER PIPE 44018 44018-1056 2
CYLINDER-FORK 44022 44022-1314 2
SPRING-FRONT FORK,K=3.43N/MM 44026 44026-1551 2 (OPTION)
SPRING-FRONT FORK,K=3.63N/MM 44026A 44026-1552 2 (OPTION)
SPRING-FRONT FORK,K=3.725N/MM 44026B 44026-1603 2
GUIDE-FORK SPRING 44028 44028-1081 2
GUIDE-FORK SPRING 44028A 44028-1084 2
SEAT-FORK SPRING 44029 44029-1149 2
HOLDER-FORK UNDER 44037 44037-1291 1
HOLDER-FORK UPPER 44039 44039-1240 1
HOLDER-FRONT AXLE 44063 44063-1056 1
DAMPER-ASSY,FORK,RH,GOLD 44070 44070-1468-828 1
DAMPER-ASSY,FORK,LH,GOLD 44070A 44070-1469-828 1
VALVE-ASSY,FORK 49116 49116-1145 2
GUARD,FORK,LH,WHITE 55020 55020-0196-RZ 1
GUARD,FORK,RH,WHITE 55020A 55020-0199-RZ 1
SCREW 92009 92009-1568 2
NUT,STEERING STEM,22MM 92015 92015-1653 1
NUT 92015A 92015-1839 2
WASHER 92022 92022-1299 2
WASHER,STEERING STEM 92022A 92022-1873 1
BUSHING 92028 92028-1581 2
RING-SNAP 92033 92033-1077 2
SEAL-OIL 92049 92049-1373 2
RING-O 92055 92055-1156 2
RING-O,FORK,AIR TUBE 92055A 92055-1333 2
RING-O 92055B 92055-1441 2
RING-O,FORK VALVE 92055C 92055-1502 2
BAND 92072 92072-1267 1
BAND 92072A 92072-1268 1
SEAL,FORK OUTER TUBE 92093 92093-1342 2
COLLAR,FORK 92143 92143-1643 2
BOLT,6X14 92150 92150-1340 5
BOLT,FLANGED,5X40 92150A 92150-1434 4
BOLT,FLANGED,8X40 92150B 92150-1446 2
BOLT,FLANGED,8X40 92150C 92150-1516 4
COLLAR,8X12.7X4 92152 92152-0315 5
NUT,FLANGED,6MM 92210 92210-1070 4
