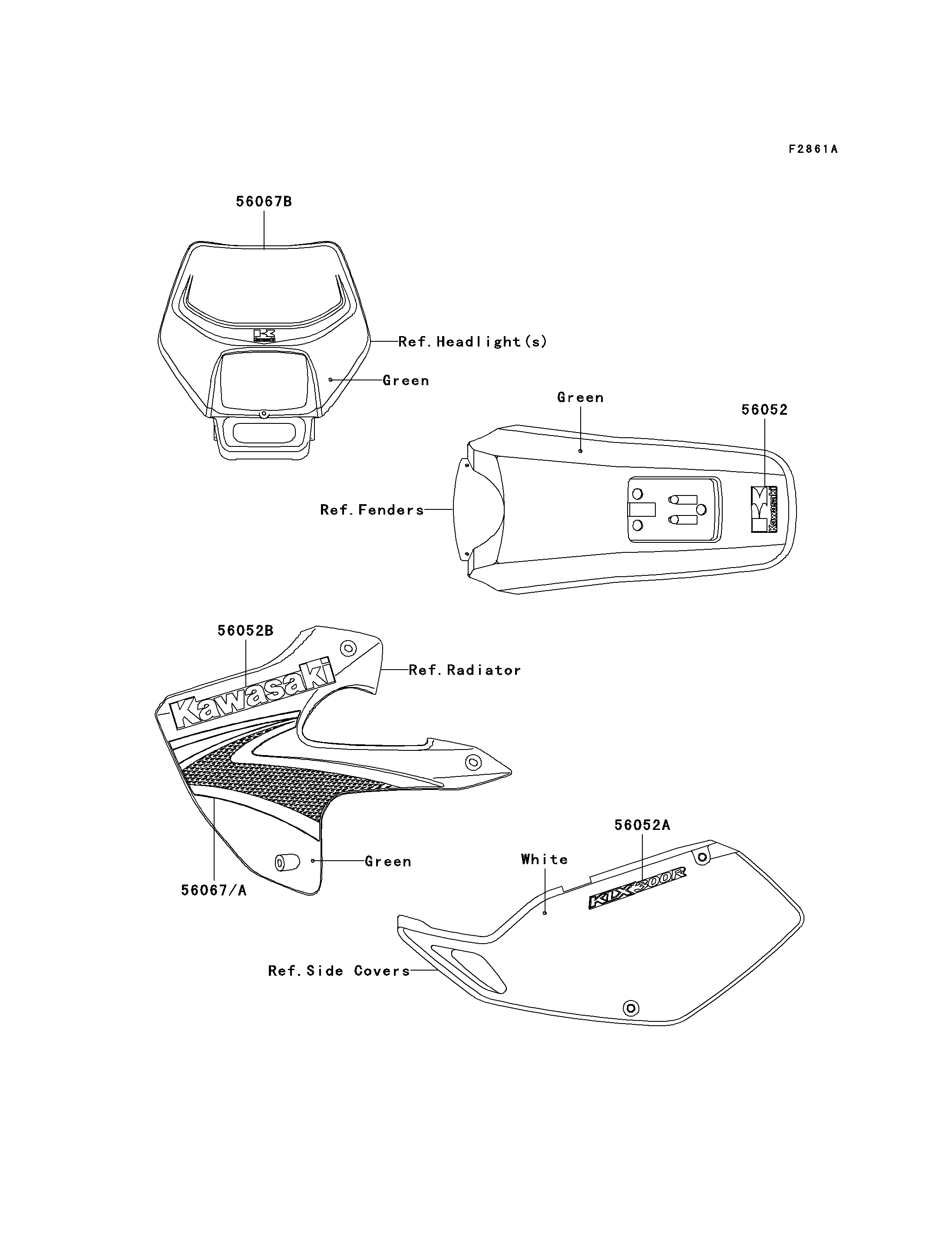

56052
56052A
56052B
56067
56067A
56067B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,RR FENDER,KAWASAKI 56052 56052-0887 1
MARK,SIDE COVER,KLX300R 56052A 56052-0895 2
MARK,SHROUD,KAWASAKI 56052B 56052-0929 2
PATTERN,SHROUD,LH 56067 56067-0993 1
PATTERN,SHROUD,RH 56067A 56067-0994 1
PATTERN,HEAD LAMP COVER 56067B 56067-0995 1
