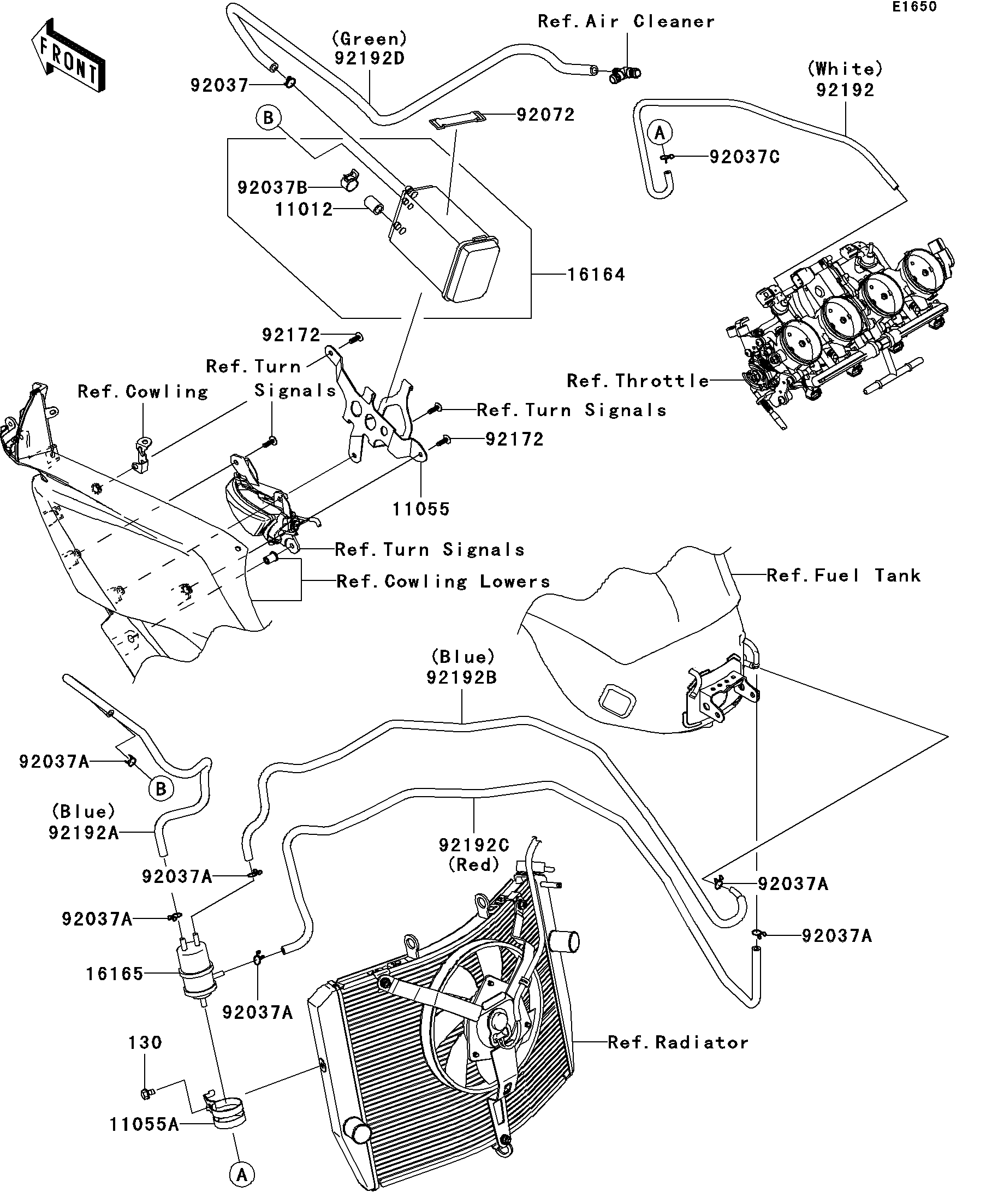

2010 Ninja® ZX™-6R - Fuel Evaporative System(CA)
11012
11055
11055A
130
16164
16165
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037B
92037C
92072
92172
92172
92192
92192A
92192B
92192C
92192D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,CANISTER | 11012 | 11012-1388 | 1 | CA | |
| BRACKET,CANISTER | 11055 | 11055-1172 | 1 | CA | |
| BRACKET,SEPARATOR | 11055A | 11055-1173 | 1 | CA | |
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 1 | CA | |
| CANISTER | 16164 | 16164-1054 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| CLAMP,HOSE | 92037 | 92037-1104 | 1 | CA | |
| CLAMP,TUBE | 92037A | 92037-147 | 6 | CA | |
| CLAMP,CANISTER | 92037B | 92037-1512 | 1 | CA | |
| CLAMP | 92037C | 92037-1712 | 1 | CA | |
| BAND,L=50 | 92072 | 92072-1419 | 1 | CA | |
| SCREW,TAPPING,5X16 | 92172 | 92172-0175 | 2 | CA | |
| TUBE,SEP.-THROBO,WHITE | 92192 | 92192-0278 | 1 | CA | |
| TUBE,SEP.-CANISTER,BLUE | 92192A | 92192-0729 | 1 | CA | |
| TUBE,TANK-SEP.,BLUE | 92192B | 92192-0730 | 1 | CA | |
| TUBE,SEP.-TANK,RED | 92192C | 92192-0731 | 1 | CA | |
| TUBE,CANISTER-A/C,GREEN | 92192D | 92192-0732 | 1 | CA |
| CAP,CANISTER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BRACKET,CANISTER | |
| REF # | 11055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BRACKET,SEPARATOR | |
| REF # | 11055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BOLT-FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| SEPARATOR | |
| REF # | 16165 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,HOSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,CANISTER | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92037C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BAND,L=50 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| SCREW,TAPPING,5X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,SEP.-THROBO,WHITE | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,SEP.-CANISTER,BLUE | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,TANK-SEP.,BLUE | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,SEP.-TANK,RED | |
| REF # | 92192C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,CANISTER-A/C,GREEN | |
| REF # | 92192D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
