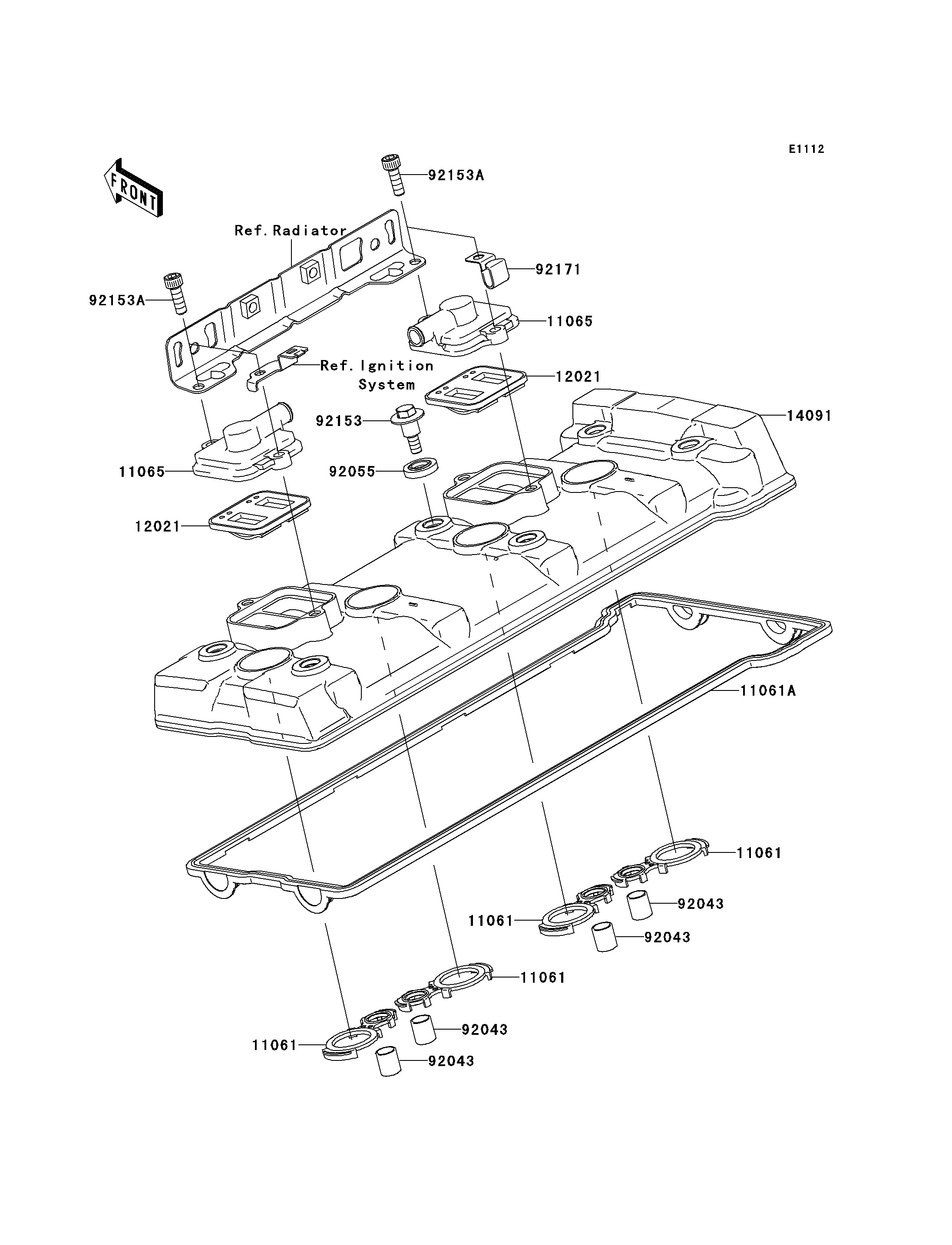

2008 Ninja® ZX™-14 - Cylinder Head Cover
11061
11061
11061
11061
11061A
11065
11065
12021
12021
14091
92043
92043
92043
92043
92055
92153
92153A
92153A
92171
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,HEAD HOLE | 11061 | 11061-0196 | 4 | ||
GASKET,HEAD COVER | 11061A | 11061-0738 | 1 | ||
CAP | 11065 | 11065-1247 | 2 | ||
VALVE-ASSY-REED | 12021 | 12021-1130 | 2 | ||
COVER,HEAD | 14091 | 14091-1574 | 1 | ||
PIN,10.1X12X14 | 92043 | 92043-4009 | 4 | ||
RING-O | 92055 | 92055-0187 | 6 | ||
BOLT,FLANGED,6X22.5 | 92153 | 92153-1016 | 6 | ||
BOLT,SOCKET,6X18 | 92153A | 92153-1559 | 4 | ||
CLAMP | 92171 | 92171-0766 | 1 |
GASKET,HEAD HOLE | |
REF # | 11061 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GASKET,HEAD COVER | |
REF # | 11061A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP | |
REF # | 11065 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
VALVE-ASSY-REED | |
REF # | 12021 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COVER,HEAD | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,10.1X12X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X22.5 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X18 | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
