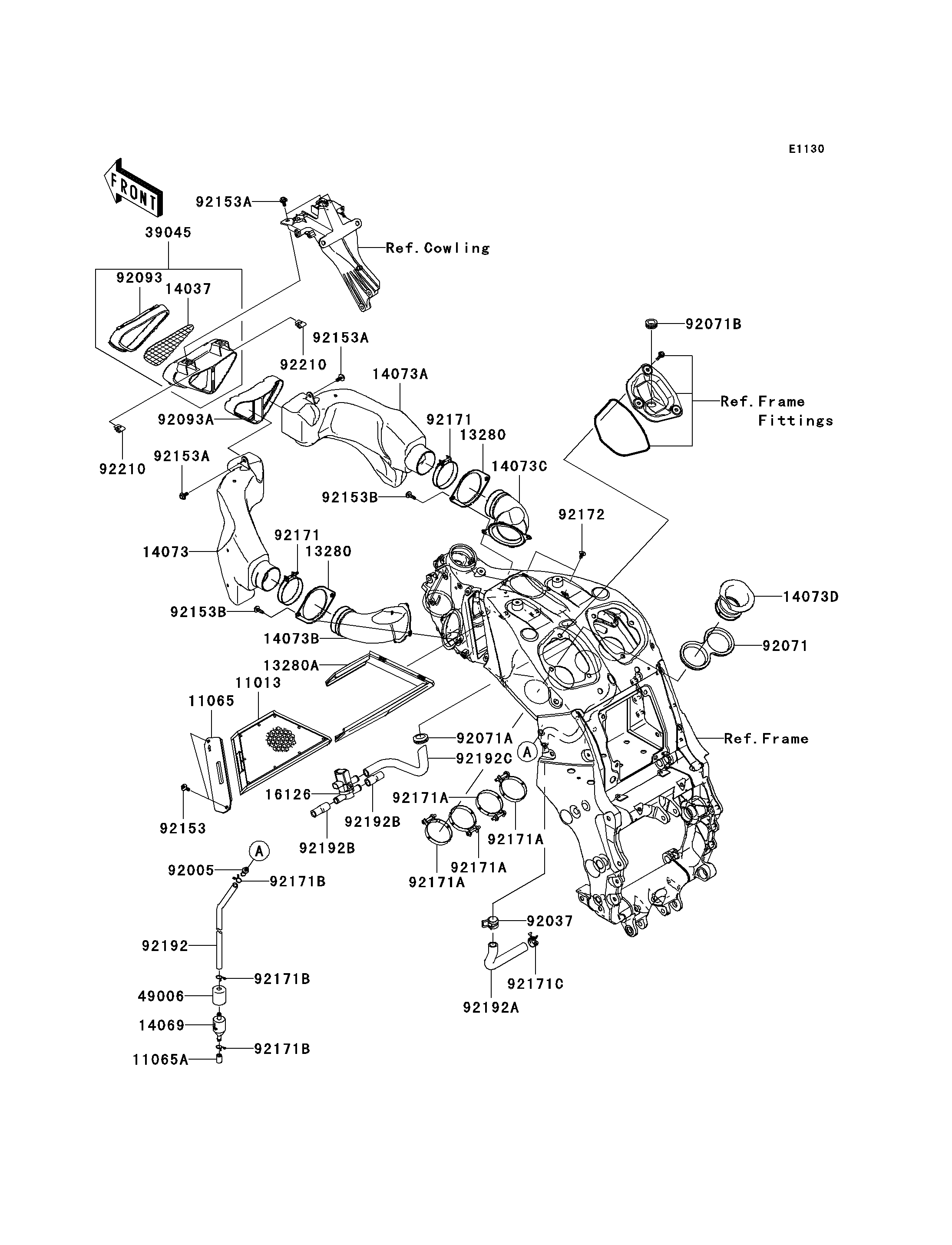

2008 Ninja® ZX™-14 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11013
11065
11065A
13280
13280
13280A
14037
14069
14073
14073A
14073B
14073C
14073D
16126
39045
49006
92005
92037
92071
92071A
92071B
92093
92093A
92153
92153A
92153A
92153A
92153B
92153B
92171
92171
92171A
92171A
92171A
92171A
92171B
92171B
92171B
92171C
92172
92192
92192A
92192B
92192B
92192C
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ELEMENT-AIR FILTER 11013 11013-0014 1
CAP 11065 11065-0220 1
CAP,BREATHER 11065A 11065-1088 1
HOLDER 13280 13280-0154 2
HOLDER,ELEMENT 13280A 13280-0165 1
SCREEN 14037 14037-0044 1
BREATHER 14069 14069-1051 1
DUCT,RAM AIR,LH 14073 14073-0099 1
DUCT,RAM AIR,RH 14073A 14073-0100 1
DUCT,RAM-FRAME,LH 14073B 14073-0101 1
DUCT,RAM-FRAME,RH 14073C 14073-0102 1
DUCT,FUNNEL 14073D 14073-0168 4
VALVE,AIR SWITCHING 16126 16126-0038 1
DUCT-ASSY,RAM AIR,FR 39045 39045-0016 1
BOOT,BREATHER 49006 49006-1267 1
FITTING 92005 92005-0055 1
CLAMP,HOSE CLIP 92037 92037-1460 1
GROMMET 92071 92071-0023 2
GROMMET,AIR FILTER 92071A 92071-1042 1
GROMMET 92071B 92071-2140 1
SEAL 92093 92093-0052 1
SEAL,RAM,DUCT 92093A 92093-0053 1
BOLT,SOCKET,6X16 92153 92153-1526 2
BOLT,UPSET-WP,6X16 92153A 92153-1587 4
BOLT,SOCKET,6X20 92153B 92153-1927 4
CLAMP,65MM 92171 92171-0543 2
CLAMP 92171A 92171-0677 4
CLAMP 92171B 92171-0721 3
CLAMP 92171C 92171-0771 1
SCREW,6X16 92172 92172-0284 2
TUBE,7X12X390 92192 92192-0258 1
TUBE,BREATHER 92192A 92192-0365 1
TUBE,REED VALVE-ASV 92192B 92192-0376 2
TUBE,ASV-FRAME 92192C 92192-0399 1
NUT 92210 92210-0318 2
