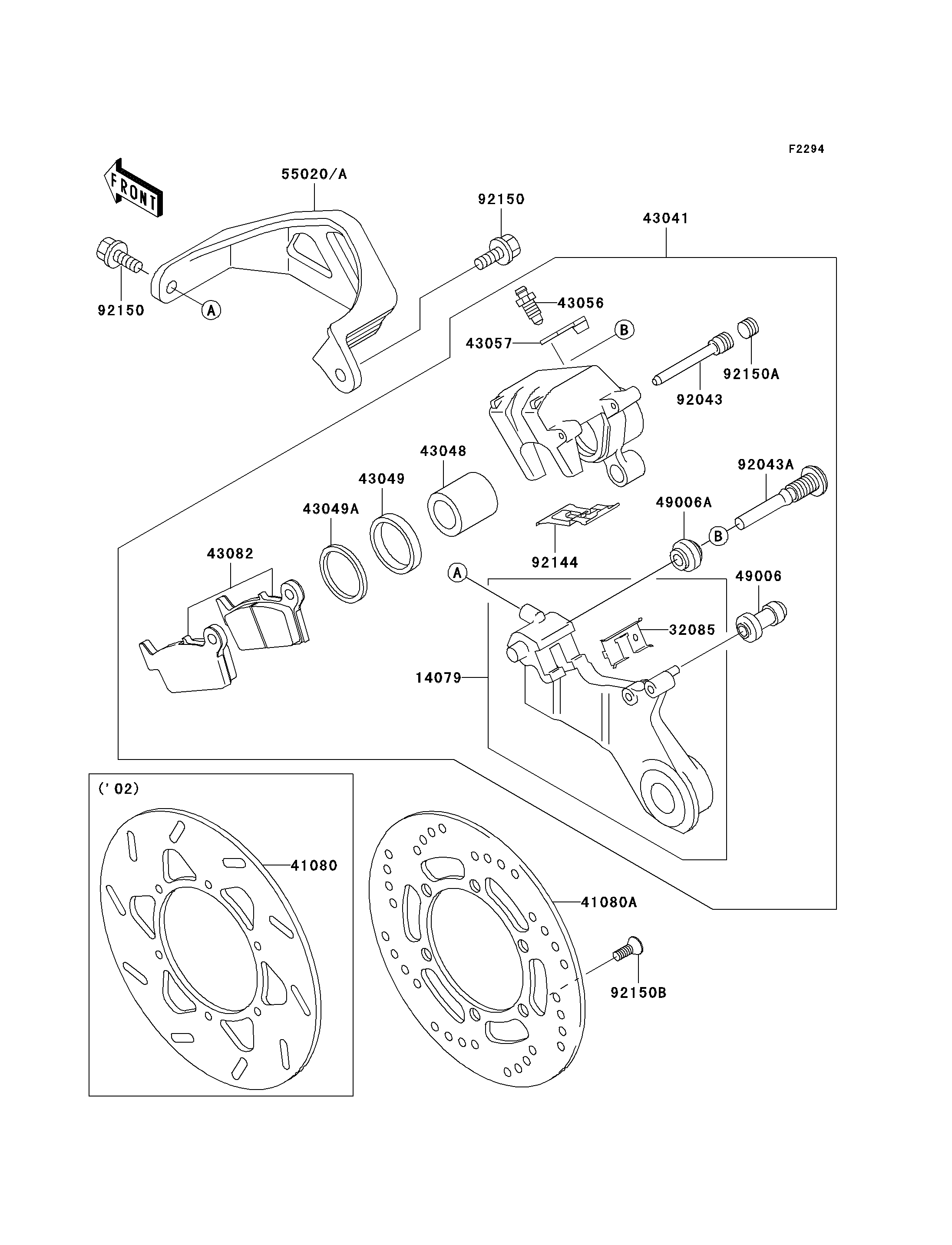

2003 KLX300R - Rear Brake(KLX300-A7/A8)

DOWNLOAD PDF
SELECT A NEW PART
14079
32085
41080A
43041
43048
43049
43049A
43056
43057
43082
49006
49006A
55020
92043
92043A
92144
92150
92150
92150A
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-ASSY,REAR CALIPER 14079 14079-1105 1
STOPPER,PAD 32085 32085-1386 1
DISC,RR 41080A 41080-1528 1
CALIPER-ASSY,RR 43041 43041-1577 1
PISTON-CALIPER 43048 43048-1068 1
PACKING,PISTON SEAL 43049 43049-1060 1
PACKING,PISTON SEAL 43049A 43049-1061 1
BREATHER-BRAKE 43056 43056-1055 1
CAP-BREATHER 43057 43057-1001 1
PAD-ASSY-BRAKE 43082 43082-1173 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1242 1
GUARD,RR CALIPER,WHITE 55020 55020-1488-RZ 1
PIN,HANGER 92043 92043-1507 1
PIN 92043A 92043-1508 1
SPRING,PAD 92144 92144-1819 1
BOLT,6X14 92150 92150-1340 2
BOLT,PLUG 92150A 92150-1692 1
BOLT,DISC PLATE,8X15 92150B 92150-1811 6
