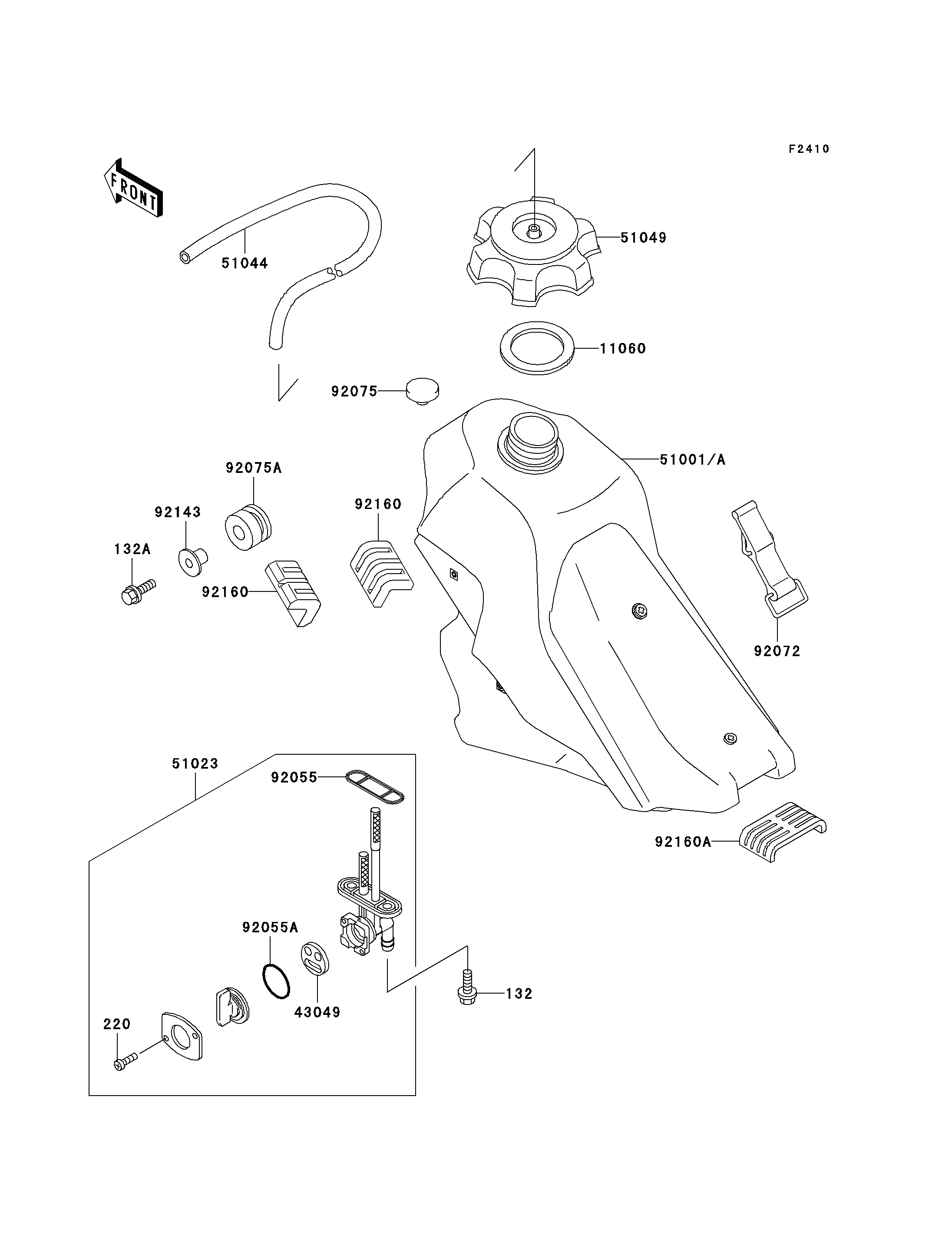

2003 KLX300R - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
132
132A
220
11060
43049
51001A
51023
51044
51049
92055
92055A
92072
92075
92075A
92143
92160
92160
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0612 2
BOLT-FLANGED-SMALL 132A 132G0620 2
SCREW-PAN-CROS 220 220B0308 2
GASKET,FUEL TANK CAP 11060 11060-1340 1
PACKING,TAP VALVE 43049 43049-1091 1
TANK-COMP-FUEL,F.BLACK 51001A 51001-1670-6Z 1
TAP-ASSY,FUEL 51023 51023-1332 1
TUBE-ASSY 51044 51044-1185 1
CAP-TANK,FUEL 51049 51049-1108 1
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O,TAP LEVER 92055A 92055-1419 1
BAND,FUEL TANK 92072 92072-1229 1
DAMPER 92075 92075-005 1
DAMPER,RUBBER 92075A 92075-1123 2
COLLAR 92143 92143-1353 2
DAMPER,FUEL TANK 92160 92160-1328 2
DAMPER,FUEL TANK,RR 92160A 92160-1397 1
