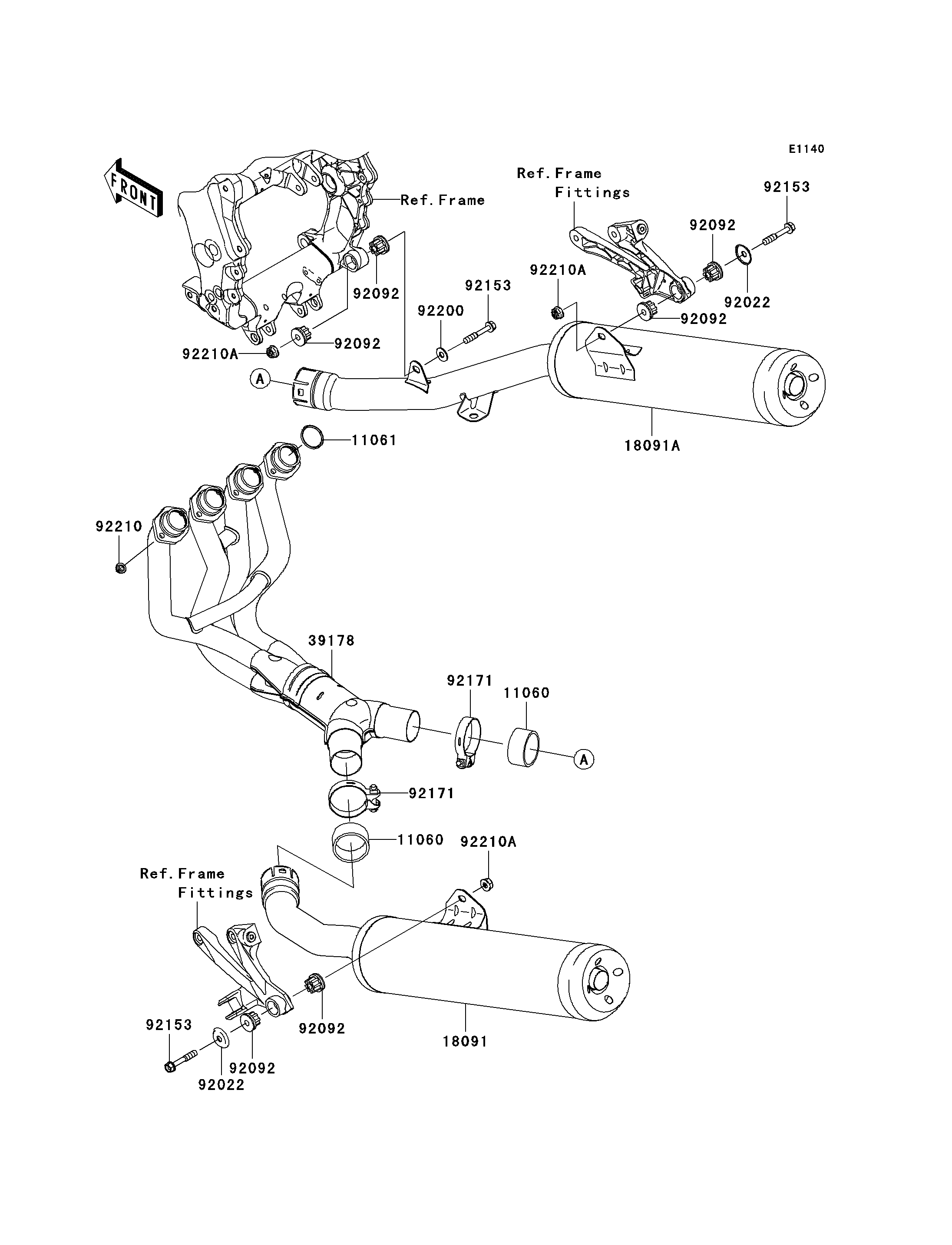

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11060
11060
11061
18091
18091A
39178
92022
92022
92092
92092
92092
92092
92092
92092
92153
92153
92153
92171
92171
92200
92210
92210A
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,MUFFLER CONNECTING | 11060 | 11060-1376 | 2 | ||
| GASKET,EX PIPE | 11061 | 11061-0027 | 4 | ||
| BODY-COMP-MUFFLER,LH | 18091 | 18091-0402 | 1 | ||
| BODY-COMP-MUFFLER,RH | 18091A | 18091-0404 | 1 | ||
| MANIFOLD-COMP-EXHAUST | 39178 | 39178-0119 | 1 | ||
| WASHER | 92022 | 92022-289 | 2 | ||
| BUSHING-RUBBER,MUFFLER | 92092 | 92092-1087 | 6 | ||
| BOLT,SOCKET,10X60 | 92153 | 92153-1837 | 3 | ||
| CLAMP,64.5MM | 92171 | 92171-0683 | 2 | ||
| WASHER,10.5X25X2.0 | 92200 | 92200-1377 | 1 | ||
| NUT,8MM | 92210 | 92210-0121 | 8 | ||
| NUT,10X1.25 | 92210A | 92210-0316 | 3 |
